Installing the WWAN card
About this task
CAUTION:
To avoid damage to the WWAN card, do not place any cables under it.
Steps

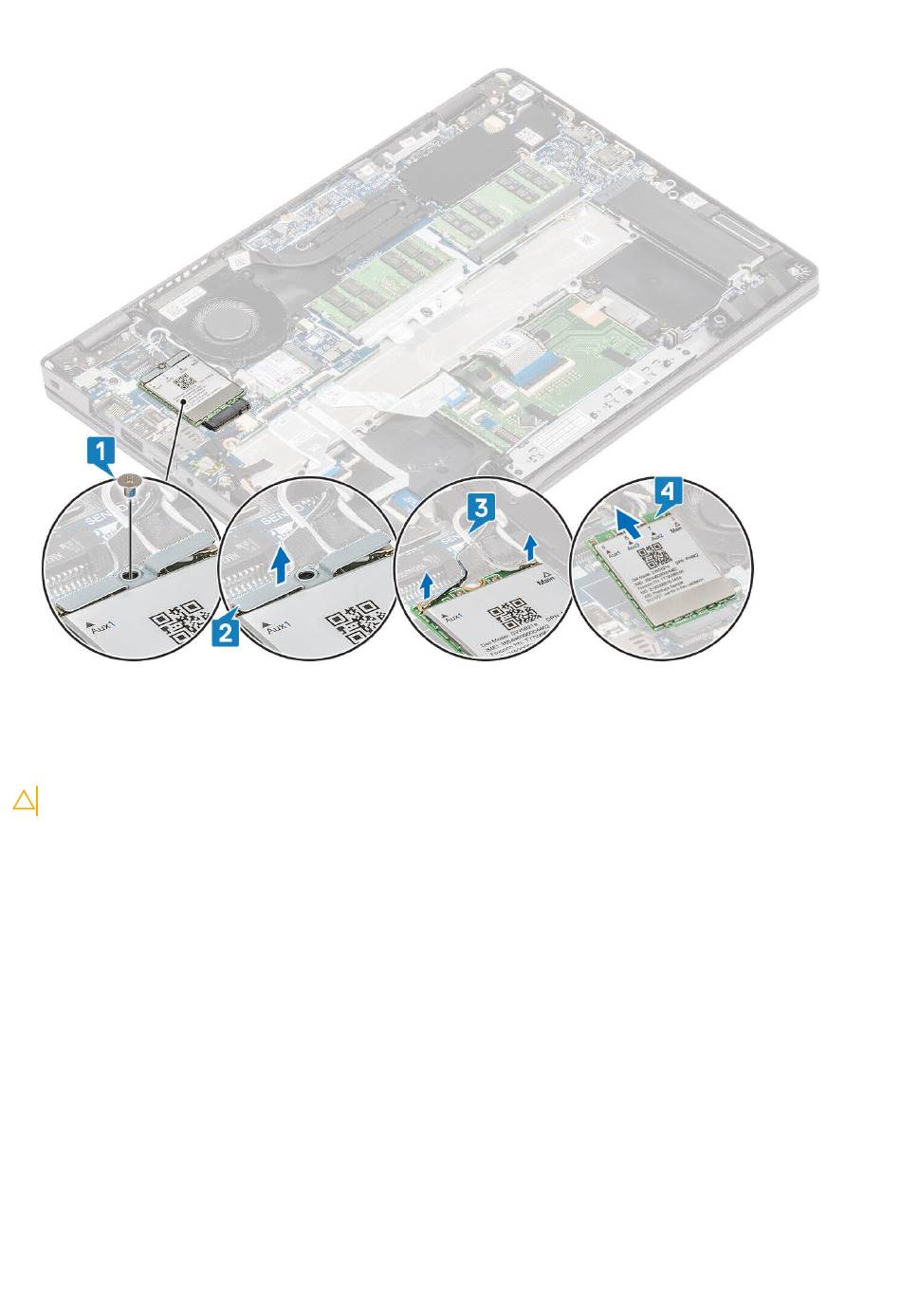

1. Align the notch on the WWAN card with the tab on the WWAN card slot and insert the WWAN card at an angle into the
WWAN card slot [1].
2. Connect the antenna cables to the WWAN card [2].
3. Place the WWAN card bracket on the WWAN card [3].
4. Replace the single (M2x3) screw to secure the WWAN card bracket to the WWAN card [4].
34
Disassembly and reassembly
