VMA1615 and VMA1630 Variable Air Volume Controllers
Installation Instructions
MS-VMA1615-0U, MS-VMA1615-1U, MS-VMA1630-0U,
MS-VMA1630-1U
Applications

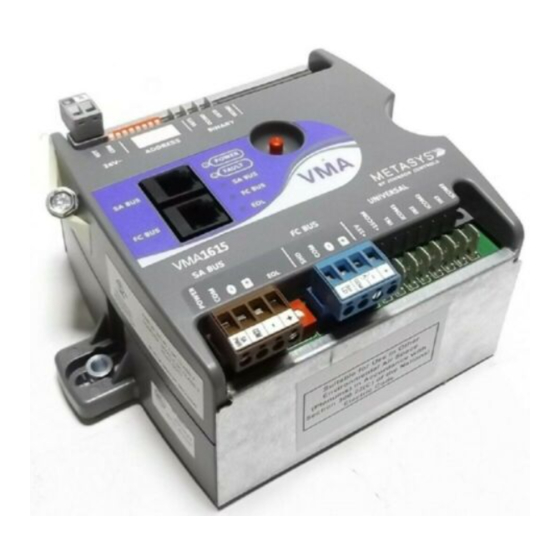

The VMA1615/1630 programmable digital controllers are
designed for VAV applications that communicate through
the MSTP or N2 protocol. These VMA controllers feature
combinations of an integral digital pressure sensor (DPT),
a damper actuator, and a 32-bit microprocessor. The
controllers' small package size facilitates quick field
installation and efficient use of space without
compromising high-tech control performance. These VMA
controllers connect easily to the wired network sensors
for zone and discharge air temperature sensing.
Important: The MS-VMA1615-xU and
MS-VMA1630-xU models are used in
Metasys Release 8.1 smoke control
applications and are UL 864 UUKL/UUKLC
10th Edition Smoke Control Listed. You
must refer to the Metasys® System UL 864
10th Edition UUKL/ORD-C100-13 UUKLC
Smoke Control System Technical Bulletin
(LIT-12012487) for detailed requirements
and procedures for installing,
commissioning, and operating UL 864
UUKL/UUKLC Listed Metasys system
devices. The UL 864 UUKL/UUKLC listing
for Smoke Control Equipment is voided if
(1) you do not use the required software
tools at the required versions; or (2) you do
not meet the requirements or do not follow
the procedures as documented in the
Metasys® System UL 864 10th Edition
UUKL/ORD-C100-13 UUKLC Smoke
Control System Technical Bulletin
(LIT-12012487).
Switchable Communications
Protocols
By default, the Metasys® system FEC Family Controllers
and network sensors communicate using either the
standard BACnet protocol, based on the ANSI/ASHRAE
135-2004, or the BACnet/IP protocol. The BACnet
protocol is a standard for ANSI, ASHRAE, and the
International Standards Organization (ISO) for building
controls.
VMA1615 and VMA1630 Variable Air Volume Controllers Installation Instructions
Part No. 24-10143-01604, Rev. —
Refer to the
QuickLIT website
FEC, VMA, and most IOM field controllers are BTL-listed
as BACnet Application Specific Controllers (B-ASCs).
FAC field controllers and the VMA1930 Field Controller
are BTL-listed as BACnet Advanced Application
Controllers (B-AACs).
Release 10.3 with Release Module (RM) 10.2 of the
Controller Configuration Tool (CCT) can be used to switch
the Field Bus communications protocol in supported FEC,
FAC and VMA controllers to be either the standard
BACnet MSTP or the N2 protocol. All new controllers use
BACnet MSTP as the default communications protocol.
Switchable communications protocols in the MSTP
models provide a cost-effective upgrade and
modernization path for customers with existing N2
controllers.
The N2-capable FEC Family Controllers can be used as
functional replacements for legacy N2 controllers. The
N2-capable FEC Family Controllers:
•
have the input and output (I/O) quantities and
characteristics of the FEC Family Controllers
•
must be programmed with CCT, which has similar,
but not identical programming capabilities as
HVACPro, GX9100, GPL, and other legacy tools
•
support SA Bus devices
•
are available in Buy American versions (most models)
•
are listed for UL864 UUKL/UUKLC (some models).
N2 is supported as part of the Metasys® 10th Edition
listing for Smoke Control System Equipment.
The N2-capable FEC family controllers:
•
do not support Zone Bus (for example, TMZ sensors
and M100 actuators) or XT-Bus (System 91) devices
(for example, XT, XTM, and XP modules)
•
do not support a wireless connection to the N2 bus
•
do not support NxE passthrough
Software Release 8.1
Issued March 2018
for the most up-to-date version of this document.
1
Advertisement
Table of Contents
Related Manuals for Johnson Controls VMA1615 Series
Summary of Contents for Johnson Controls VMA1615 Series
- Page 1 VMA1615 and VMA1630 Variable Air Volume Controllers Installation Instructions MS-VMA1615-0U, MS-VMA1615-1U, MS-VMA1630-0U, MS-VMA1630-1U Part No. 24-10143-01604, Rev. — Software Release 8.1 Issued March 2018 Refer to the QuickLIT website for the most up-to-date version of this document. Applications FEC, VMA, and most IOM field controllers are BTL-listed The VMA1615/1630 programmable digital controllers are as BACnet Application Specific Controllers (B-ASCs).
-
Page 2: North American Emissions Compliance
North American Emissions • 8 mm (5/16 in.) wrench or 10 mm (3/8 in.) 12-point Compliance socket to tighten the square coupler bolt • several shims or washers to mount the VMA United States • power screwdriver, 100 mm (4 in.) extension socket, punch, drill, and 3.5 mm (9/64 in.) drill bits to mount This equipment has been tested and found to comply the VMA... - Page 3 If the damper for a 90° box closes CCW, rotate the a spacer to offset tipping of the VMA controller caused by the shaft bushings. coupler to the CCW mechanical limit. If the damper Note: Use the alignment marks to center the captive for a 90°...
- Page 4 Figure 2: VMA1615/1630 Controller Wiring Terminations and Physical Features (VMA1630 Shown) VMA1615 and VMA1630 Variable Air Volume Controllers Installation Instructions...
- Page 5 0–2k Potentiometer RTD: 1k Nickel, 1k Platinum, or A99B SI NTC: 10K Type L (10K Johnson Controls Type II is equivalent to Type L) or 2.252K Type II Dry Contact Binary Input FC Bus Terminal Block. May also be used for N2 connections. See FC Bus Terminal Block (Or N2 Protocol Required).
-
Page 6: Vma Terminals And Bus Ports
Wiring Wire the removable FC Bus terminal block plugs on the VMA and other controllers in a daisy-chain configuration using 3-wire twisted, shielded cable as shown in Figure Risk of Electric Shock. Disconnect the power supply 3. See Table 5 for more information. - Page 7 Modular Ports Important: Connect 24 VAC supply power to the VMA The modular and FC Bus ports on the face of the VMA and all other network devices so that (Figure 2) are RJ-12 (6-position) modular jacks as shown transformer phasing is uniform across the Figure network devices.
-
Page 8: Wireless Network Applications
Setting the Device Address.) Also, activate the • Shielded cable is not required for input or output end-of-line (EOL) switch if necessary. cables but is recommended for input and output cables that are exposed to high electromagnetic or 5. Connect the VMA controller to 24 VAC, Class 2 radio frequency noise. -
Page 9: Termination Diagrams
Termination Diagrams A set of Johnson Controls® termination diagrams provides details for wiring inputs and outputs to the controllers. See the figures in this section for the applicable termination diagrams. Table 2: Termination Details Type of Field Type of Termination Diagrams... - Page 10 Table 2: Termination Details Type of Field Type of Termination Diagrams Device Input/Output 0–10 VDC Output to Actuator (Internal Source) 24 VAC Triac Output (Switch Low, External Source) Note: Applies to CO4 and CO5. Incremental Control to Actuator (Switch Low, External Source) Note: Applies to CO4 and CO5.
- Page 11 Table 2: Termination Details Type of Field Type of Termination Diagrams Device Input/Output Network Stat with SA Bus Phone Jack (Fixed Address = 199) Network Stat with SA Bus Terminals Addressable Network Stat with SA Bus Terminals (Fixed Address = 199) VMA1615 and VMA1630 Variable Air Volume Controllers Installation Instructions...
- Page 12 1k Platinum, and A99B Silicon Temperature Sensor) Negative Temperature Coefficient (NTC) Sensor 10K Type L (10K Johnson Controls Type II is equivalent to Type L) or 2.252K Type II Binary Input - Dry Contact Maintained Mode See Guideline A in...
- Page 13 Table 3: I/O Terminal Blocks, Functions, Ratings, Requirements, and Cables Terminal Block Label Terminal Function, Ratings, and Requirements To Determine Wire Size Labels and Maximum Cable Length CONFIGURABLE OUTn Analog Output - Voltage Mode (0–10 VDC) See Guideline A in Table (Outputs) 10 VDC maximum output voltage...
- Page 14 Figure 8: Maximum Wire Length by Current and Wire Size Table 5: Communication Bus and Supply Power Terminal Blocks, Functions, Ratings, Requirements, and Cables Terminal Block/Port Label Terminal Labels Function, Electrical Recommended Cable Type Ratings/Requirements FC Bus Communications 0.6 mm (22 AWG) stranded, 3-wire FC BUS twisted, shielded cable recommended...
-
Page 15: Setup And Adjustments
Table 5: Communication Bus and Supply Power Terminal Blocks, Functions, Ratings, Requirements, and Cables Terminal Block/Port Label Terminal Labels Function, Electrical Recommended Cable Type Ratings/Requirements 24 VAC Power Supply - Hot 0.8 mm to 1.0 mm Supplies 20–30 VAC (Nominal (20 to 18 AWG) 2-wire 24VAC) 24 VAC Power Supply Common... -
Page 16: Setting The Eol Switch
Table 6 show and describe the valid FC Bus and SA Bus to ON (up), sets the field controller as a terminating device device addresses for Johnson Controls MSTP on the bus. See (Figure 2) for the EOL switch location communications bus applications. -
Page 17: Repair Information
Commissioning Use the following procedure to commission the VMA1615/1630 controller: 1. Download the control application to the VMA controller using the Controller Configuration Tool (CCT). Refer to the Controller Tool Help (LIT-12011147). 2. Commission the VAV Box. Refer to the Controller Tool Help (LIT-12011147). - Page 18 Table 7: Troubleshooting Problem Possible Cause Correction Verification Controller is Off Power at Primary of Transformer has tripped Transformer is shorted Ensure polarity of ~24 V COM / Disconnect the Transformer, 0V at ICOM / + 15VCOM/SA BUS secondary of the 24 2.
-
Page 19: Technical Specifications
Table 8: VMA Controller Status LEDs LED Label LED Color Normal State Descriptions of LED States POWER Green On Steady Off Steady = No power On Steady = Power is supplied by primary voltage FAULT Off Steady Blink - 2 Hz = Download or startup in progress, not ready for normal operation, SA Bus devices offline (such as netsensors) Rapid blink = SA Bus communications issue Off Steady = No faults... - Page 20 Table 10: VMA1615/1630 Controllers Power Consumption 10 VA typical, 14 VA maximum Note: The VA rating does not include any power supplied to the peripheral devices connected to Binary Outputs (BOs) or Configurable Outputs (COs), which can consume up to 12 VA for each BO or CO, for a possible total consumption of an additional 60 VA (maximum).
- Page 21 The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
