VMA1615/1626/1628/1630 VAV Controllers Installation
Instructions
MS-VMA1615, MS-VMA1626, MS-VMA1628, MS-VMA1630
Applications

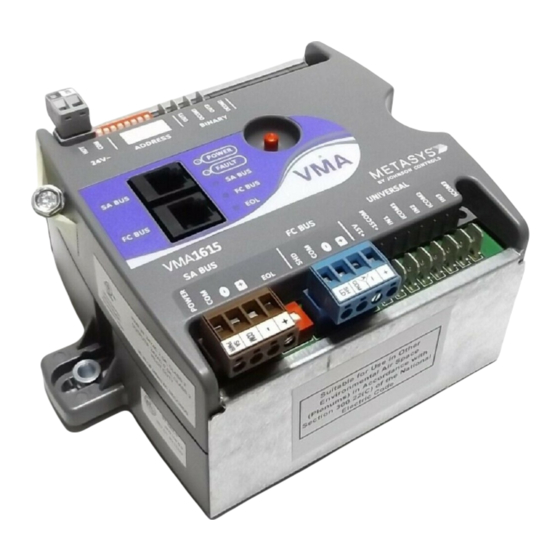

The VMA1615/1626/1628/1630 programmable digital
controllers are designed for VAV applications that
communicate through the BACnet® MS/TP or N2
protocol. These VMA controllers feature combinations of
an integral digital pressure sensor (DPT), a damper
actuator, and a 32-bit microprocessor. The VMA1626 has
an actuator but does not contain a DPT. The VMA1628
model has a DPT but does not contain an actuator. The
controllers' small package size facilitates quick field
installation and efficient use of space without
compromising high-tech control performance. These VMA
controllers connect easily to the wired and wireless
network sensors for zone and discharge air temperature
sensing.
Switchable Communications
Protocols
The Metasys® system FEC Family Controllers and
network sensors communicate using either the standard
BACnet protocol, based on the ANSI/ASHRAE 135-2008,
or the BACnet/IP protocol. The BACnet protocol is a
standard for ANSI, ASHRAE, and the International
Standards Organization (ISO) for building controls.
FEC, VMA16, VMA18, and most IOM field controllers are
BTL-listed as BACnet Application Specific Controllers
(B-ASCs). FAC field controllers and the VMA1930 Field
Controller are BTL-listed as BACnet Advanced Application
Controllers (B-AACs).
Release 10.1 and later of the Controller Configuration
Tool (CCT) can be used to switch the Field Bus
communications protocol in supported FEC, FAC and
VMA controllers to be either the standard BACnet MS/TP
or the N2 protocol. All new controllers use either BACnet
MS/TP as the default communications protocol, or
BACnet/IP. Switchable communications protocols in the
MS/TP models provide a cost-effective upgrade and
modernization path for customers with existing N2
controllers.
VMA1615/1626/1628/1630 VAV Controllers Installation Instructions
Part No. 24-10143-217, Rev. J
Refer to the
QuickLIT website
The N2-capable FEC Family Controllers can be used as
functional replacements for legacy N2 controllers. The
N2-capable FEC Family Controllers:
have the input and output (I/O) quantities and
characteristics of the FEC Family Controllers
must be programmed with CCT, which has similar,
but not identical programming capabilities as
HVACPro, GX9100, GPL, and other legacy tools
support SA Bus devices
support WRZ wireless sensors from the controller
using the WRZ-7860 receiver (most models)
are available in Buy American versions (most models)
The N2-capable FEC family controllers:
do not support Zone Bus (for example, TMZ sensors
and M100 actuators) or XT-Bus (System 91) devices
(for example, XT, XTM, and XP modules)
do not support a wireless connection to the N2 bus
do not support NxE passthrough
North American Emissions
Compliance
United States
This equipment has been tested and found to comply
with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when this equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area may cause harmful interference, in which
case the users will be required to correct the interference
at their own expense.
(barcode for factory use only)
Issued April 2018
for the most up-to-date version of this document.
1

Advertisement

Table of Contents
loading

Summary of Contents for Johnson Controls VMA1615

  • Page 1 MS/TP models provide a cost-effective upgrade and case the users will be required to correct the interference modernization path for customers with existing N2 at their own expense. controllers. VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 2: Installation

    6 mm (1/4 in.) female spade terminals for vibration. input and output wiring, and crimping tool for spade • When using the VMA1615/1626/1628/1630 to replace mounted terminal blocks a VMA1610 or VMA1620 controller, plug the unused • small, straight-blade screwdriver for securing wires...
  • Page 3 VMA movement All models are compact in size and are easily in either direction. installed on VAV boxes. The VMA1615/1626/1630 Secure the self-drilling No.10 screw through the models have either a round shaft up to 13 mm in...
  • Page 4 Figure 2: VMA1615/1626/1628/1630 Controller Wiring Terminations and Physical Features (VMA1630 Model Shown) VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 5 0–2k Potentiometer RTD: 1k Nickel, 1k Platinum, or A99B SI NTC: 10K Type L (10K Johnson Controls Type II is equivalent to Type L) or 2.252K Type II Dry Contact Binary Input FC Bus Terminal Block. May also be used for N2 connections. See...
  • Page 6: Vma Terminals And Bus Ports

    Figure 4. See Table 5 for more information. on the VMA1615/1626/1628/1630 controllers. Observe the following guidelines when wiring a VMA controller. Input and Output Terminals The input spade terminals are located on the side of the VMA near the FC Bus terminal block. The output spade terminals are located on the opposite side of the controller near the power supply terminal block.
  • Page 7: Supply Power Terminal Block

    Figure 5: Pin Number Assignments for Sensor (SA terminal block (Figure 6). A VMA1610 or Bus and FC Bus) Ports on VMA1615/1626/1628/1630 VMA1620 controller uses a three-position Controllers terminal block, and the center position is not used. Stray wire strands may make contact and cause a short circuit across the 24 VAC power supply.
  • Page 8: Vma Terminal Functions, Ratings, Requirements, And Wiring Guidelines

    5. Connect the VMA controller to 24 VAC, Class 2 network devices. Powering network devices power. with uniform 24 VAC supply power phasing Note: If you are using the VMA1615/1626/1628/1630 reduces noise, interference, and ground controller with the Wireless Field Bus System, loop problems. The VMA does not require refer to the WNC1800/ZFR182x Pro Series an earth ground connection.
  • Page 9: Fc And Sa Bus And Supply Power Wiring Guidelines

    FC and SA Buses. power: Termination Diagrams A set of Johnson Controls® termination diagrams provides details for wiring inputs and outputs to the controllers. See the figures in this section for the applicable termination diagrams. Table 2: Termination Details...
  • Page 10 0–10 VDC Output to Actuator (Internal Source) 24 VAC Triac Output (Switch Low, External Source) Note: Applies to CO4 and CO5. Incremental Control to Actuator (Switch Low, External Source) Note: Applies to CO4 and CO5. Analog Output (Voltage) VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 11 24 VAC Binary Output (Switch Low, Internally Sourced) Network Stat with SA Bus Phone Jack (Fixed Address = 199) Network Stat with SA Bus Terminals Addressable Network Stat with SA Bus Terminals (Fixed Address = 199) VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 12 1k Platinum, and A99B Silicon Temperature Sensor) Negative Temperature Coefficient (NTC) Sensor 10K Type L (10K Johnson Controls Type II is equivalent to Type L) or 2.252K Type II Binary Input - Dry Contact Maintained Mode See Guideline A in...
  • Page 13 0.5 mm (24 AWG) stranded copper 61 m (200 ft) twisted wire point. 107 m (350 ft) twisted wire Figure 8 to select wire Figure 8 to determine size/gauge. cable length. Use stranded copper wire. Use twisted wire cable. VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 14 RJ-12 6-Position Modular Port FC BUS 24 AWG 3-pair CAT 3 Cable provides FC Bus Communications <30.5m (100 ft) FC Bus provides 15 VDC Power for: • Wireless Bluetooth® Commissioning Converter • Wireless ZigBee® Field Bus Router VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 15: Setup And Adjustments

    Set a field controller’s device address by setting the positions of the switches on the Device Address DIP switch block at the top of the controller (Figure 2). Device addresses 4 through 127 are the valid addresses for these controllers. VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 16: Setting The N2 Controller Address To Be Greater Than 127

    Table 7 show and describe the valid FC Bus and the remaining address switches OFF. This and SA Bus device addresses for Johnson Controls renders the controllers wired slave devices, which MSTP communications bus applications. do not interfere on MSTP Buses and do not Table 6: FC Bus Device Address Descriptions interfere with bus operation.
  • Page 17: Setting The Eol Switch

    Converter at the SA bus. Wireless connections are not supported in N2 mode. These connection options require additional hardware listed in Table Repair Information If the VMA1615/1626/1628/1630 controller fails to operate within its specifications, replace the unit. For a replacement unit, contact the nearest Johnson Controls representative. Troubleshooting...
  • Page 18 24 VAC power supply on the VMA is reversed but not reversed on a connected secondary device. Improper wiring of this power terminal may cause a short circuit across the 24 VAC power supply on -1 models. VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 19 0–10V output has an Common Reference is OCOM terminal is not connected Connect OCOM terminal of the undesirable offset of incorrect configurable output to the common up to 1 V of the connected end device. VMA1615/1626/1628/1630 VAV Controllers Installation Instructions...
  • Page 20 Off Steady = EOL is not active Accessories Table 10 to order accessories. Table 10: VMA1615/1626/1628/1630 Controller Accessories (Order Separately) Product Code Number Description IOM Series Controllers Refer to the Metasys® System Field Equipment Controllers and Related Products Product Bulletin (LIT-12011042) for a complete list of available IOM Series Controllers.
  • Page 21: Technical Specifications

    Replacement Barbed Fitting for use on VMA1615, VMA1630, and VMA1832 for Connecting Tubing, Bulk Pack of 10 F-1000-326 Flexible Tubing Extension with Barbed Fitting for VMA1615, VMA1630, and VMA1832, 35.56 cm (14 in.) Length, Bulk Pack of 20 MS-VMAACT-701 VMA Actuator Assembly Gearbox Replacement Kit...
  • Page 22 UL Listed, File E107041, CCN PAZX7, CAN/CSA C22.2 No. 205, Signal Equipment. Industry Canada Compliant, ICES-003 Europe: CE Mark – Johnson Controls declares that this product is in compliance with the essential requirements and other relevant provisions of the EMC Directive. Australia and New Zealand: RCM Mark, Australia/NZ Emissions Compliant.
  • Page 23 The performance specifications are nominal and conform to acceptable industry standard. For application at conditions beyond these specifications, consult the local Johnson Controls office. Johnson Controls shall not be liable for damages resulting from misapplication or misuse of its products.
