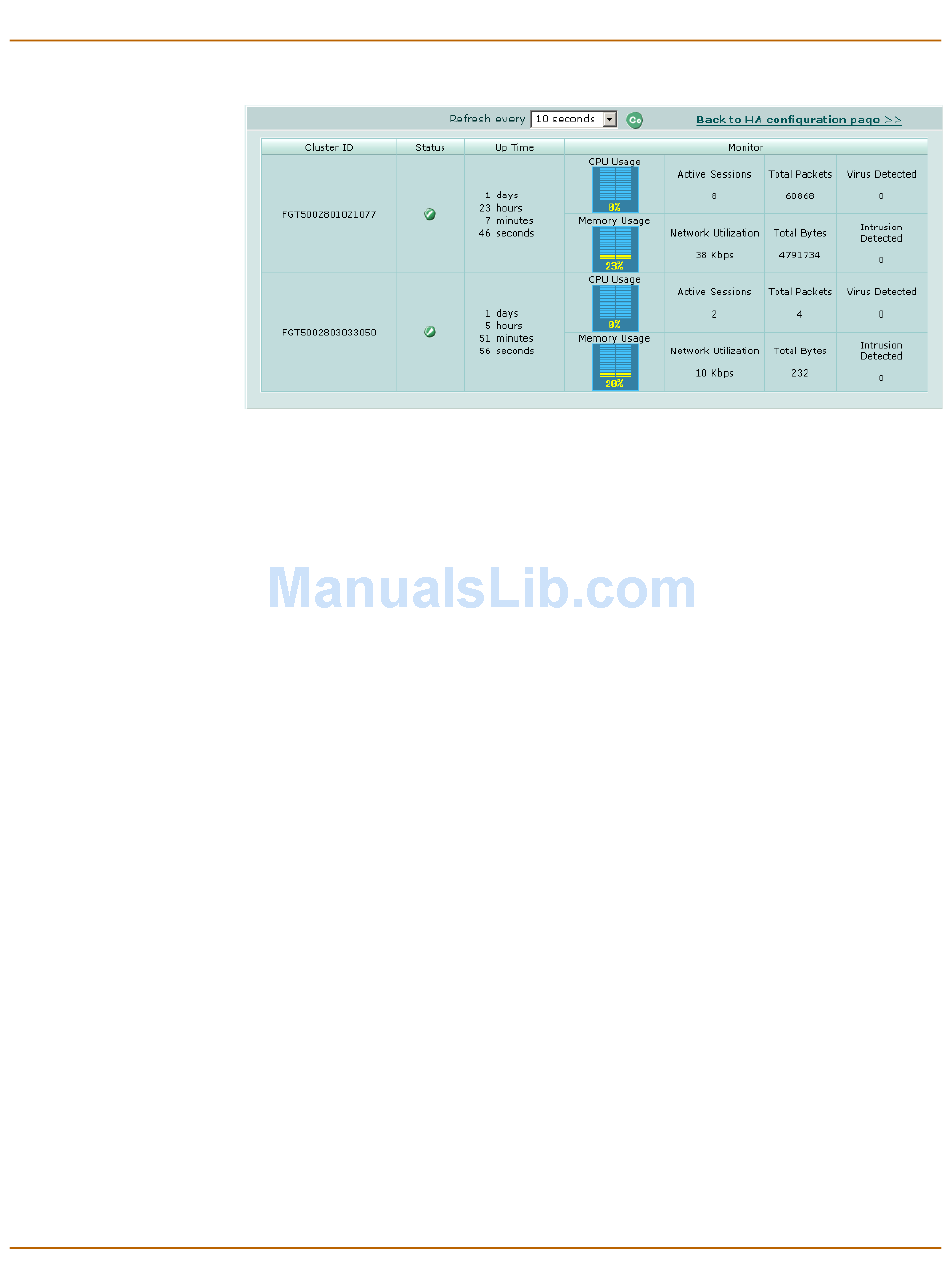

Figure 32: Example cluster members list (active-active cluster)
Refresh every
Go
Back to HA
configuration page
Cluster ID
Status
Up Time
Monitor
CPU Usage
Memory Usage
Active Sessions
Total Packets
Virus Detected
Network Utilization The total network bandwidth being used by all of the cluster unit
Total Bytes
Intrusion Detected The number of intrusions or attacks detected by the cluster unit.
To view and manage logs for individual cluster units
1 Connect to the cluster and log into the web-based manager.
Select to control how often the web-based manager updates the system
status display.
Select to set the selected refresh interval.
Close the cluster members list and return to the HA configuration page.
Use the cluster ID to identify each FortiGate unit in the cluster. The
cluster ID matches the FortiGate unit serial number.
Indicates the status of each cluster unit. A green check mark indicates
that the cluster unit is operating normally. A red X indicates that the
cluster unit cannot communicate with the primary unit.
The time in days, hours, minutes, and seconds since the cluster unit was
last started.
Displays system status information for each cluster unit.
The current CPU status of each cluster unit. The web-based manager
displays CPU usage for core processes only. CPU usage for
management processes (for example, for HTTPS connections to the
web-based manager) is excluded.
The current memory status of each cluster unit. The web-based manager
displays memory usage for core processes only. Memory usage for
management processes (for example, for HTTPS connections to the
web-based manager) is excluded.
The number of communications sessions being processed by the each
cluster unit.
The number of packets that have been processed by the cluster unit
since it last started up.
The number of viruses detected by the cluster unit.
interfaces.
The number of bytes that have been processed by the cluster unit since it
last started up.
