ASSEMBLY
• To hire a service technician to assemble this
product in your home, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it off
with a soft cloth and a mild, non-abrasive cleaner.

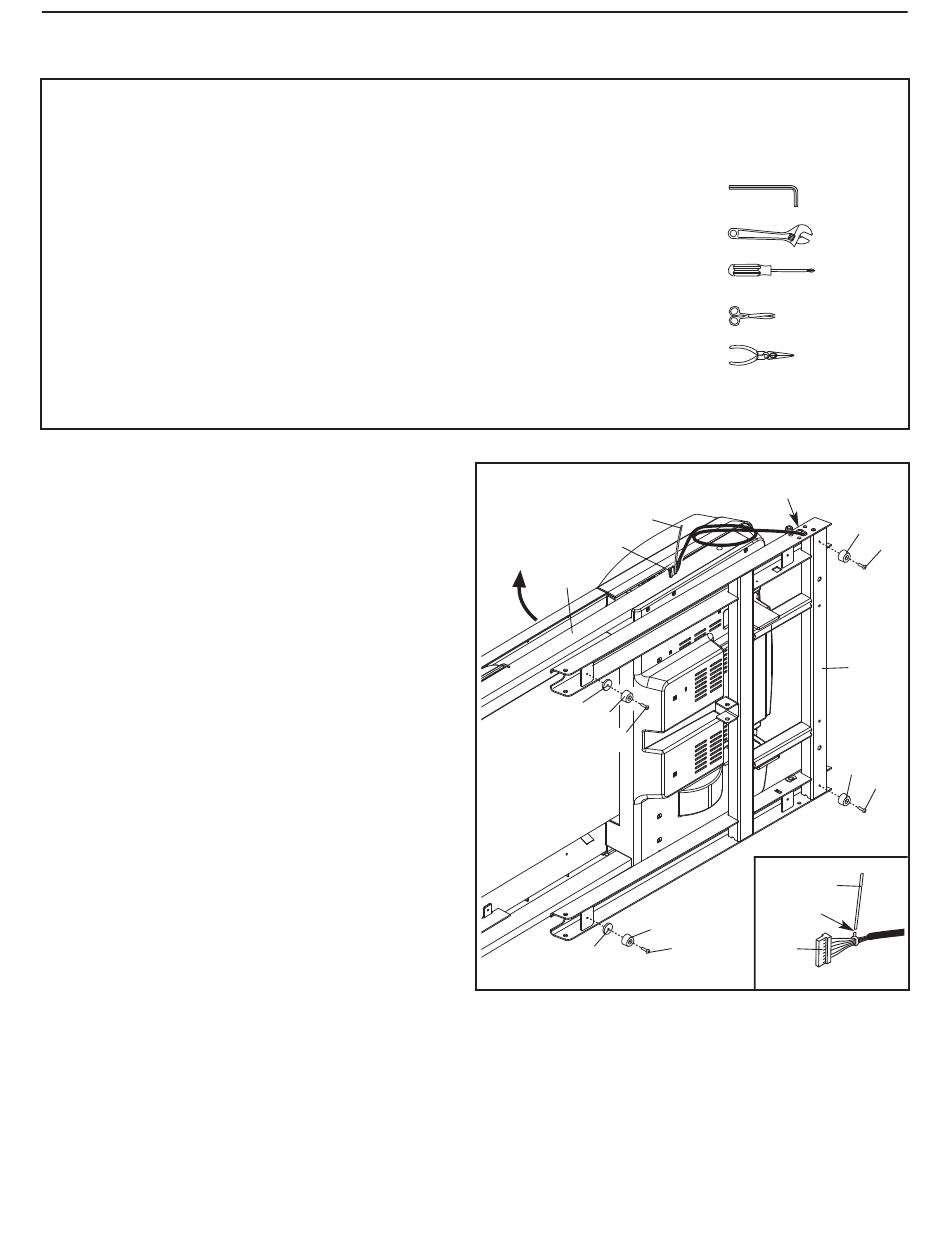

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Locate the Upright Wire (85), which is bundled
at the front of the Base (94). Remove the pack-
aging from the Upright Wire. Insert the Upright
Wire into the end of the Base and pull it out of
the indicated hole. If necessary, use the plastic
tie to pull the Upright Wire out of the hole.
Attach two Base Feet (92) and two Base Foot
Spacers (36) to the Base (94) in the locations
shown with two #8 x 1" Tek Screws (2).
Then, attach the other two Base Feet (92) with
two #8 x 1" Tek Screws (2).
See the inset drawing. Cut the plastic tie near
the Upright Wire (85).
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
one adjustable wrench
one Phillips screwdriver
scissors
needlenose pliers
To avoid damaging parts, do not use power tools.
1
Tie
85
55
36
92
2
36
7
Hole
Tie
Cut
92
2
85
92
2
94
92
2
