Section 2 General Information and Setup

10
9
8
TABLE 1. Generator Components
1 120 Volt AC, 20 Amp, Duplex Receptacle
2 120 Volt AC, 30 Amp Locking Receptacle
3 30 Amp Circuit Breaker (AC)
4 20 Amp Circuit Breakers (AC)
5 RUN/STOP Switch
6 Hour Meter
7 Recoil Starter
8 Fuel Shut Off
9 Air Filter
10 CHOKE Knob
11 Handle
12 Fuel Gauge
13 Gas Cap
14 Fuel Tank
15 Oil Fill
16 Oil Drain
17 Grounding Lug
18 Spark Arrestor
19 Carbon Canister (CARB models only)
20 Muffler
Owner's Manual for Portable Generator
008044
7

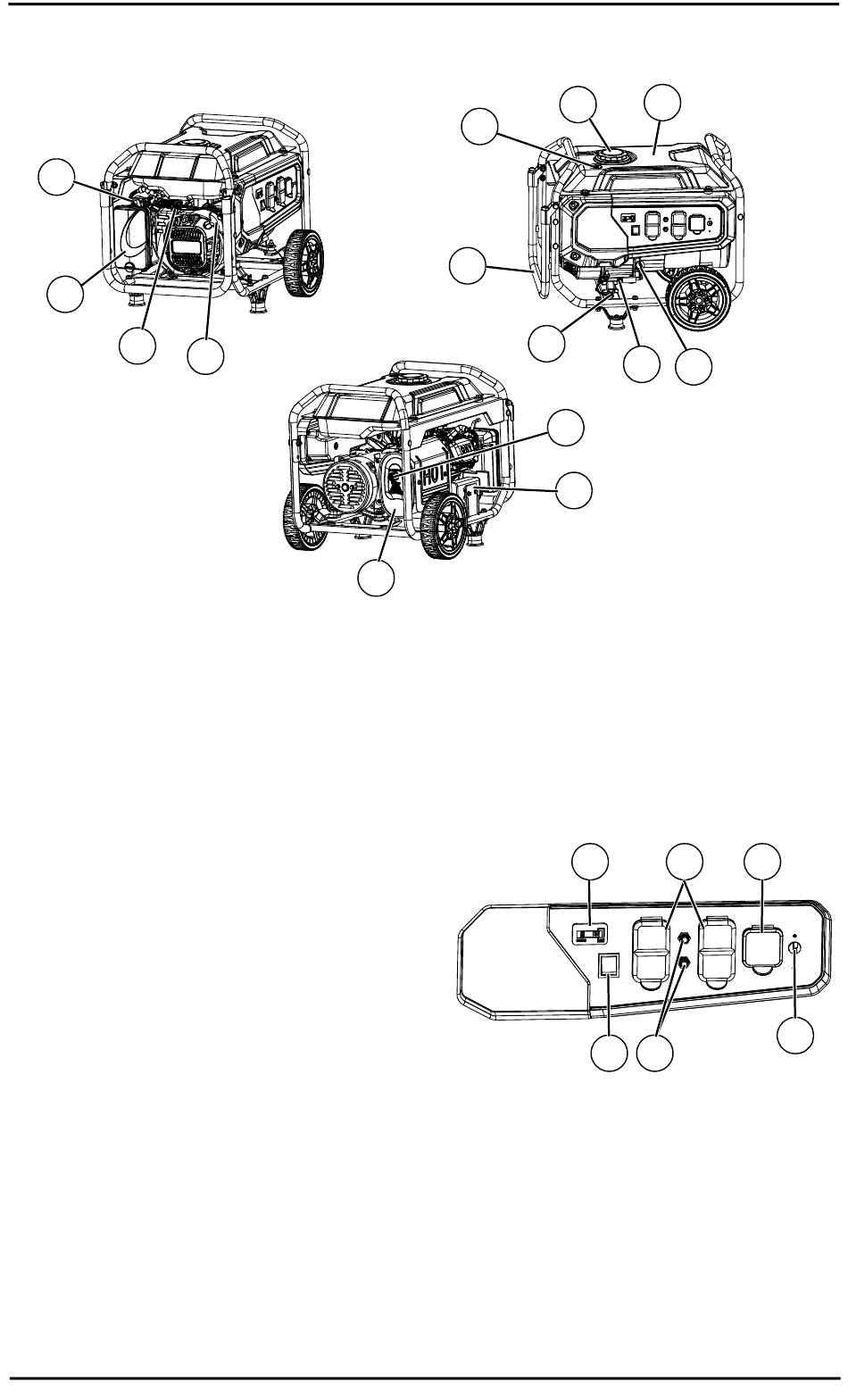

Figure 2-1. Features and Controls
12
11
20
21 120 Volt AC, 20 Amp, GFCI Duplex
Receptacle (NEMA 5-20R) (if equipped)
22 CO SENSE RED (Hazard) (if equipped)
23 CO SENSE YELLOW (Fault) (if equipped)
14
13
17
16
15
18
19
008046
6 1
5 4
Figure 2-2. Control Panel
008047
2
3
008048
5
