Section 2 General Information and Setup

14
TABLE 1. Generator Components
1 Off/Run/Choke Switch
2 Economy Switch
3 120V, 20A Receptacle
4 Circuit Protector (if equipped)
5 Parallel Outlets
6 Grounding Location
7 2.1A, 5VDC USB Outlet
8 DC Receptacle (battery charger)
9 Low Oil Warning
10 Overload Warning
11 AC Power Light
12 Carrying Handle
13 Fuel Cap
14 Recoil Starter
15 Spark Arrestor
16 Muffler Cover
17 Service Door
18 Spark Plug Cover
4
13
011016
18
17

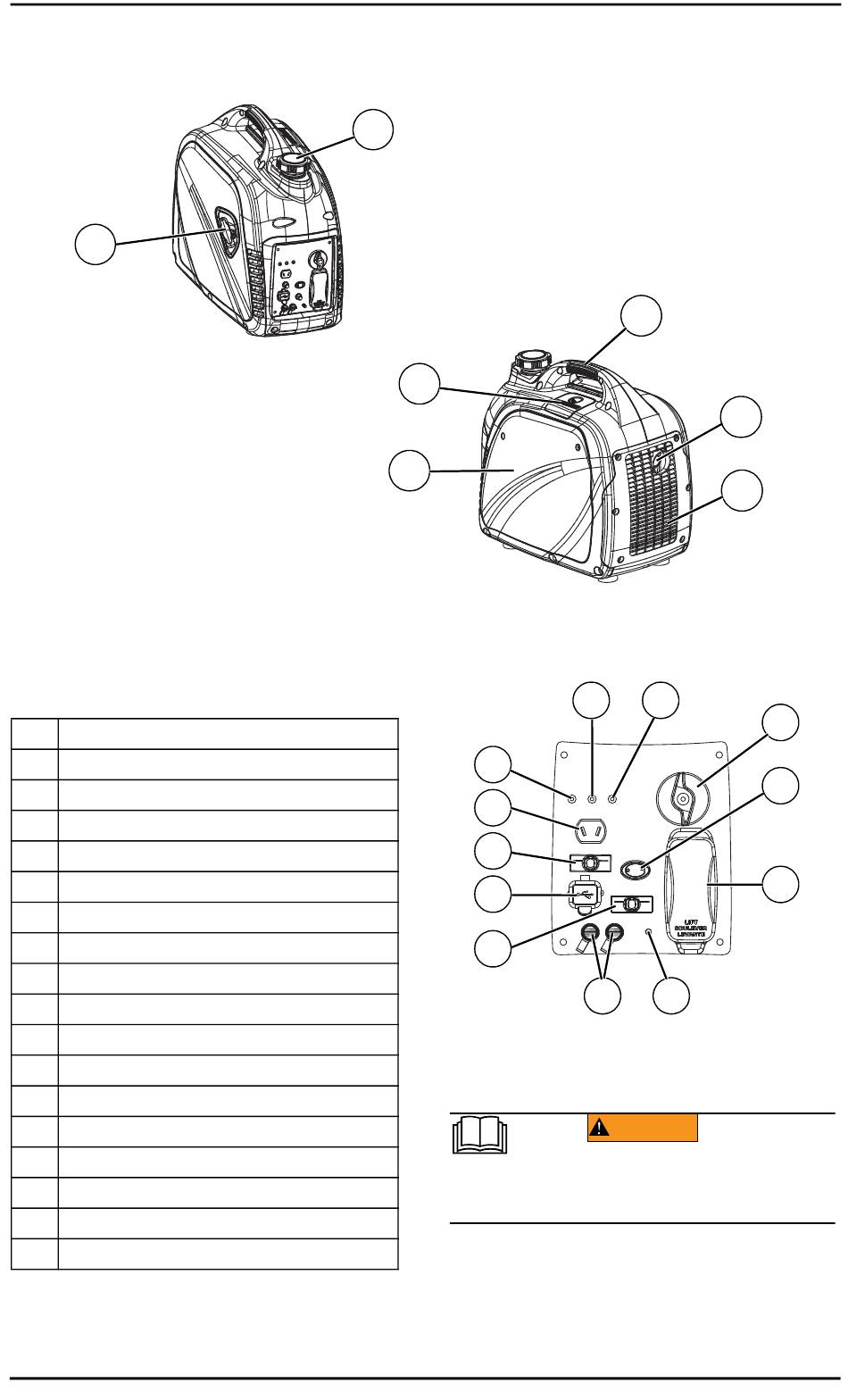

Figure 2-1. Features and Controls
10
9
8
4
7
4
5
Figure 2-2. Control Panel

Know Your Generator

WARNING
Consult Manual. Read and understand manual
completely before using product. Failure to
completely understand manual and product
could result in death or serious injury.
Replacement owner's manuals are available
at www.generac.com.
Owner's Manual for Portable Generator
12
15
16
011017
11
1
2
3
011018
6
(000100a)
