- Page 1 MECHANICAL METER Use and maintenance Uso y mantenimiento Bulletin M0164B ENES_...
-
Page 2: Table Of Contents
Use and maintenance ENGLISH TABLE OF CONTENTS GENERAL WARNINGS FIRST AID RULES GENERAL SAFETY RULES GENERAL INFORMATIONS INSTALLATION MAINTENANCE DISASSEMBLY AND REASSEMBLY TECHNICAL DATA PROBLEMS, CAUSES AND SOLUTIONS DISPOSAL EXPLODED DIAGRAM OVERALL DIMENSION Bulletin M0164B 2 /16 M0164B... -
Page 3: General Warnings
THIS MANUAL IS THE PROPERTY OF Piusi S.p.A. ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN. This manual belongs to Piusi S.p.A., which is the sole proprietor of all rights indicated by applicable laws, including, by way of example, laws on copy- rights. -
Page 4: General Safety Rules
Incorrect installation or use of the flow meter could cause danger for people and things. INSTALLATION The K40 flow meter can be installed in any position, with flexible and rigid piping as well as directly on pumps and tanks. The flow meter has one preset flow direction. -
Page 5: Use

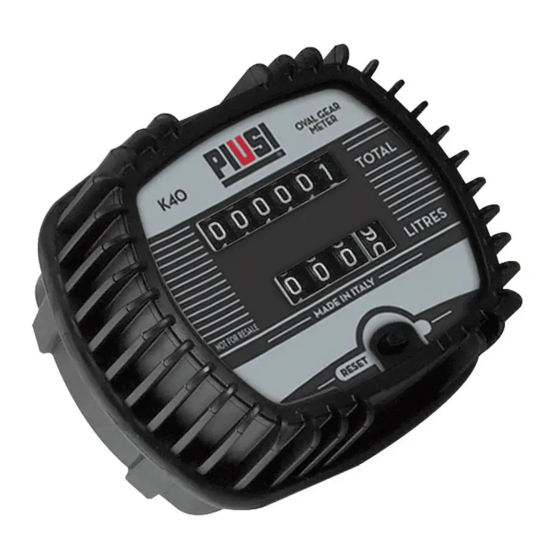

K40 MECHANICAL METER (translated from italian) Once installed, the K40 flow meter is ready for use. Press the RESET button until the partial indicator returns to zero. The total indicator cannot be reset in any way. Make sure that, during use, the operating pressure does not exceed the valued indicated in the “Technical Data”... -
