- Page 1 Delphin PRO_X quick guide DELPHIN PRO X RESET POWER REFILL 3sec on/off STATUS Flow-Rate Preset AUTO FLOW ENTER RESET MADE IN ITALY Not for resale Delphin PRO_X _ quick guide Bulletin M0495A EN _ 00...
-
Page 2: Table Of Contents
quick guide to use ENGLISH INDEX KNOW THE MANAGEMENT SYSTEM THE KEYBOARD DISPLAY LEGENDS SETTING THE PRESET FUNCTIONS MANUAL DISPENSING DISPENSING WITH AUTOMATIC FLOW SHUTDOWN OF THE SYSTEM SYSTEM COMMUNICATIONS REGULAR OPERATION BATTERY INDICATIONS FOR DC VERSIONS ALARM SIGNALS THAT DO NOT BLOCK THE SYSTEM ALARM SIGNALS THAT BLOCK THE SYSTEM CUSTOMIZE THE SYSTEM Bulletin M0495A... -
Page 3: Know The Management System

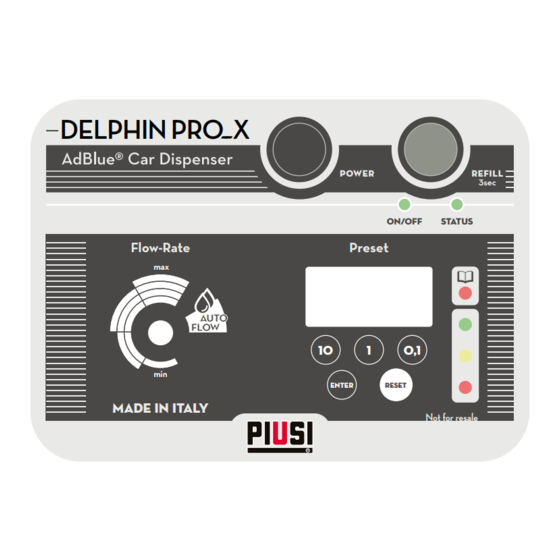

STATUS LED LCD Display LED alarm messages LEDS battery status indicators (GREEN / YELLOW / RED) Function and pre-selection keys Variator / flow setting 3 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 4: Display
quick guide to use 1.2 DISPLAY The liquid-crystal The SYSTEM uses an LCD with the following numeric registers and indica- display “LCD” tions: Batch total (4 digits, floating point) Totals (7 digits). Indication of the Total type (TOTAL / Resettable TOTAL). Indication of the Unit of Measurement: LIT = Liters GAL = Gallons QTS = Quarts... -
Page 5: Use
Proceed with the dispensing as described in the following paragraphs. The preset Dispensing functions do not vary whether you choose a manual or automatic dispensing. 5 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 6: Manual Dispensing
quick guide to use 2.2 MANUAL DISPENSING If the system is off, press the power button to turn N PRO X RESET POWER REFILL 3sec The SYSTEM can be used manually if you do not want to set an automatic on/off STATUS stop value. - Page 7 Not for resale Once the delivery has been completed, the system automatically prepares NOTE ENTER RESET a new dispensing. MADE IN ITALY Not for resale 7 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
-
Page 8: Dispensing With Automatic Flow
DELPHIN PRO X RESET 2.3 DISPENSING WITH AUTOMATIC FLOW POWER Flow-Rate The system performs the supply by looking for the flow that is most suit- able for the type of tank up to filling or when the pre-selected quantity is reached. -
Page 9: Shutdown Of The System
To turn the system back on, follow the steps below: Press the «power» switch to turn it off Not for resale Press the power switch again to turn the system back on 9 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 10: System Communications
quick guide to use SYSTEM COMMUNICATIONS 3.1 REGULAR OPERATION POWER REFILL 3sec 1 - STAND-BY - [green «ON / OFF» LED lit steady] RESET the system is ready for a new dispens- on/off STATUS POWER REFILL 3sec ESET Preset 2 - DISPENSING IN PROGRESS POWER REFILL on/off... -
Page 11: Battery Indications For Dc Versions
1-RED / 2-YELLOW / 3-GREEN] The battery is charging ENTER RESET ENTER RESET RESET Not for resale Not for resale Not for resale 11 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 12: Alarm Signals That Do Not Block The System
Not for resale Dispensing is possible but check that the battery is connected. If the problem ENTER RESET RESET persists, contact the Piusi Service. If the RESET battery is damaged, replace it. Not for resale Not for resale Not for resale 3.4 ALARM SIGNALS THAT BLOCK THE SYSTEM... -
Page 13: Customize The System
Blinking Press ENTER to go to the next Unit of Measurement. Keep on pressing ENTER until the desired Unit of Measurement is displayed. 13 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. - Page 14 quick guide to use Press ENTER and keep it pressed to go to the next activity. Press RESET to exit the customization menu. The modification of the unit of measurement does NOT require a new Cali- bration. If the TOTAL register indicates a non-zero value, this value is automatically converted by LITERS into GALLONS or vice-versa, if necessary, when the Unit of Measure is changed.
- Page 15 Press ENTER to confirm the end of the calibration dispensing. Sample DISPLAY container INDICATED REAL VALUE VALUE Blinking 15 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
- Page 16 quick guide to use After dispensing, wait for a few minutes to allow any possible air bubble to be bled from the sample container. Read the Real value only at the end of this phase as the level may decrease in the container. Do not exceed 15 minutes of waiting because the system exits the menu without completing the calibration.
- Page 17 Calibration Factor. To exit the customization mode, independently from the activity in progress, press RESET. The currently displayed settings become immediately opera- tional. 17 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
- Page 18 quick guide to use 18 /20 M0495A...
- Page 19 PRO_X QUICK GUIDE translated from italian 19 /20 /124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
- Page 20 © PIUSI S.p.A. EN. This document has been drawn up with the greatest attention to precision and accuracy of all data herein contained. Nevertheless, PIUSI S.p.A. denies liability for any possible mistake or omission. Download the manual in your language! http://www.piusi.com/manual-delphin-pro-pro-x-ibc...
