Installation, use and maintenance SAFETY INSTRUCTIONS SAFETY WARNINGS Mains - pre- ATTENTION liminary checks You must avoid any contact between the electrical power supply and the fluid before installation that needs to be FILTERED. Maintenance Before any checks or maintenance work are carried out, disconnect the power control source. -
Page 6: D4 Packaging
In the event of any anomaly, contact the supplier immediately, indicating the nature of the defects. Do not use equipment which you suspect might not be safe. 35/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 7: Becoming Aquaninted With K900

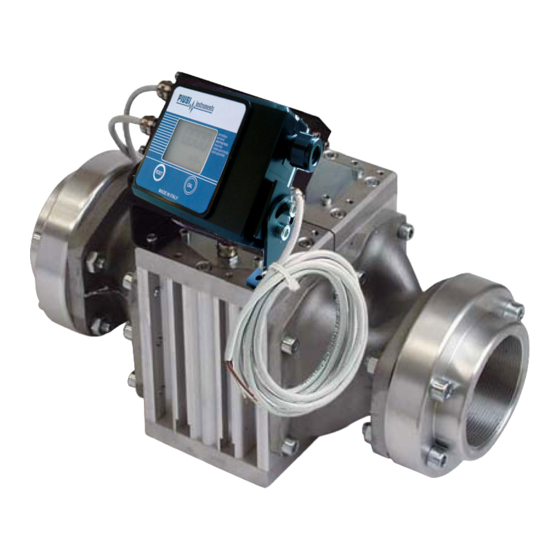

Installation, use and maintenance BECOMING AQUANINTED WITH K900 FOREWORD METER is an electronic digital meter featuring an oval-gear measurement system, designed for easy and precise measuring of oils, diesel, rapsoil and antifreeze. FUNCTIONING The fluid, by flowing through the appliance, rotates the gears which, during PRINCIPLE their rotation, transfer, “volume units”... - Page 8 It is possible to return to factory calibration at any time. Battery Housing K900 is powered by two standard type 1.5 V batteries (size 1N) . The battery housing is closed by a threaded watertight cap that can be easily removed for quick battery change.
-
Page 9: Users Buttons
K900 remote display. WARNING K900 does not have a fixed direction of flow and both inlets can be used as inlet and outlet. It is the filter position which determines the inlet di- rection of the fluid. - Page 10 ALIMENTAZIONE ESTERNA occorre Nero / Black RIMUOVERE LE BATTERIE dal portabatteria PULSER 02 ATTENTION: Before the external power connection, remove the battery from battery housing 39/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
-
Page 11: Gdaily Use
The only operations that need to be done for daily use are partial and/or resettable total register resetting. The user should use only the dispensing system of K900. Oc- casionally the meter may need to be configured or calibrated. To do so, please refer to the relevant chapters. -
Page 12: G1 Dispensing In Normal Mode
At the end of the process, a display page is first of all shown with the reset partial and the reset total and, after a few moments, the reset total is replaced by the non resettableTotal. 41/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 13: Resetting The Reset Total
Installation, use and maintenance RESETTING THE RESET TOTAL The reset total resetting operation can only be performed after resetting the partial register. The reset total can in fact be reset by pressing the reset key at length while the display screen shows reset total as on the following display page: Schematically, the steps to be taken are: 1 Wait for the display to show normal standby display page (with total only... -
Page 14: Herror Indications
“E2 CH1”: fluid in chamber 1 is slower than fluid in chamber 2 CHECK GEARS OF CHAMBER 1. “E2 CH2”: fluid in chamber 2 is slower than fluid in chamber 1 CHECK GEARS OF CHAMBER 2. 43/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 15: Calibration
Installation, use and maintenance CALIBRATION FOREWORD K900 is supplied with a factory calibration that ensures precise measuring in most operating conditions. Nevertheless, when operating close to extreme conditions, such as for instance: * with fluids close to acceptable range extremes (such as low-viscosity anti-... -
Page 16: I2.1 Display Of Current Calibration Factor And
K400 uses the calibration factor that has just been confirmed ATTENTION When the Factory Factor is confirmed, the old User factor is deleted from the memory 45/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 17: I2.2 In Field Calibration
Installation, use and maintenance I2.2 IN FIELD CALIBRATION FOREWORD This procedure calls for the fluid to be dispensed into a graduated sample con- tainer in real operating conditions ( flow rate, viscosity, etc.) requiring maximum precision. ATTENTION For correct K400 calibration, it is most important to: 1 When the Factory Factor is confirmed, the old User factor is deleted from the memory 2 use a precise Sample Container with a capacity of not less than 5 litres, featuring an accurate graduated indicator. -
Page 18: I2.2.1 In-Field Calibration Procedure
The words “Fact” and “USER” indicate which of the two factors (factory or user) is currently in use LONG RESET KEY KEYING K900 shows “CAL” and the partial at zero. The meter is ready to perform in-field cali- bration. DISPENSING INTO SAMPLE CONTAINER Without pressing any button, start dispensing into the sample container. -
Page 19: I2.3 Direct Modification Of K Factor
DISPLAYED factor is the ACTUAL factor Indicated value Real value K900 calculates the new USER K FACTOR ; this calculation could require a few sec- onds, depending on the correction to be made. During this operation the arrow disappears but the CAL indication remains. - Page 20 NO OPERATION K900 stores the new calibration factor and is ready for dispensing, applying the newly defined USER K FACTOR. 49/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden.
-
Page 21: Lconfiguration
Installation, use and maintenance CONFIGURATION K900 has a menu with which the user can configure the machine in accordance with his/her requirements. The configuration menu consists of two sub-menus: configuration menu for the main unit of measurement, configuration menu of the number of impulses per unit of measurement that are emitted by the Puls-Out output (in the relevant models). -
Page 22: (Optional) Pulse Transmitter (Puls Out)
“Sync reset” output (see logical connection shown below) it is possible to synchronise the 2 counters in mea- surement as well as in reset. REMOTE PULSER K900 WITH DISPLAY COUNTER PULSE OUT PULSE IN 10 pulse/unit 51/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 23: Malarm Output (Alarm Out)
Tale collegamento è opzionale, quindi è possibile utilizzare l’uscita Puls Out senza dover necessariamente usare anche l’uscita Allarme. REMOTE DISPLAY PULSE IN K900 WITH PULSE ALARM M0158B IT | en... -
Page 24: Nmaintenance
After changing the batteries, the meter does not need calibrating again. aTTeNTION Do not discard the old batteries in the environment. refer to local disposal regulations. 53/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 25: Cleaning The Measurement Chambers
Installation, use and maintenance CLEANING THE MEASUREMENT CHAMBERS FOreWOrD K900 measurement chamber can be cleaned without removing the instru- ment from the line or from the dispensing nozzle on which it is fitted. aTTeNTION Always make sure that the liquid has drained from the meter before clean- ing. -
Page 26: N3 Cleaning The Filter
Other components, such as pipes, rubber gaskets, plastic parts and wires, must be parts disposal disposed of by companies specialising in the disposal of industrial waste. 55/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 27: Malfunctions
Installation, use and maintenance MALFUNCTIONS Possible Cause Remedial Action Problem LCD: BLINKING battery icon Battery low Replace batteries Referring to section C, check Wrong K FACTOR Not enough measurement preci- the calibration factor sion Il contalitri funziona sotto la The meter works below mini- minima portata accettabile. -
Page 28: Technical Specifications
2x1.5 V alkaline batteries size 1N External Power 4 ÷ 12 Vdc Battery life 18 ÷ 36 months Weight 12.5 kg - 27.5 (lbs) (including batteries) 57/124 This manual is the property of PIUSI S.p.A. Any reproduction, even partial, is forbidden. -
Page 29: Rexploded View / Spare Parts
Installation, use and maintenance EXPLODED VIEW / SPARE PARTS M0158B IT | en... - Page 31 © PIUSI S.p.A. IT . Il presente documento è stato redatto con la massima attenzione circa la precisione dei dati in esso contenuti. Tuttavia, PIUSI S.p.A. non si assume responsabilità per eventuali errori ed omissioni. EN. This document has been drawn upwith the greatest attention to precision and accuracy of all data herein contained. Nevertheless, PIUSI S.p.A.
