Piusi K24 Use, Maintenance And Installation Manual

ENGLISH
INDEX C.4 PACKAGING
A DECLARATION OF CONFORMITY
FOREWORD K24 comes packed in a cardboard box with a label indicating the fol-
B GENERAL WARNINGS
C SAFETY INSTRUCTIONS lowing data:
C.1 SAFETY WARNINGS
1 - contents of the pack-
C.2 FIRST AID RULES
age
C.3 GENERAL SAFETY RULES
C.4 PACKAGING
2 - weight of the contents
C.5 PACKAGE CONTENTS/PRE-INSPECTION
D BECOMING ACQUAINTED WITH K24
D.1 COMPATIBLE LIQUIDS
3 - description of the
D.2 DISPLAY LCD
product
D.3 DISPLAY POSITIONING (METER VERSION ONLY)
D2 USERS BUTTONS
E OPERATING MODES
F INSTALLATION
G DAILY USE
G.1 DISPENSING IN NORMAL MODE
C.5 PACKAGE CONTENTS/PRE-INSPECTION
G.1.1 PARTIAL RESET (NORMAL MODE)
G.1.2 RESETTING THE RESET TOTAL
FOREWORD
To open the packaging, use a pair of scissors or a cutter, being careful
G.2 DISPENSING WITH FLOW RATE MODE DISPLAY
not to damage the dispensing system or its components.
G.2.1 PARTIAL RESET (FLOW RATE MODE)
H CALIBRATION NOTE In the event that one or more of the components de-
H1 DEFINITIONS
scribed below are missing from inside the package,
H2 CALIBRATION MODE
H.2.1 DISPLAY OF CURRENT CALIBRATION FACTOR AND please contact Piusi inc technical support.
RESTORING FACTORY FACTOR.
WARNING Check that the data on the plate correspond to the
H.2.2 IN FIELD CALIBRATION
H.2.2.1 IN-FIELD CALIBRATION PROCEDURE desired specifications. In the event of any anomaly,
H.2.3 DIRECT MODIFICATION OF K FACTOR
contact the supplier immediately, indicating the nature
I METER CONFIGURATION
of the defects. Do not use equipment which you suspect
L MAINTENANCE
might not be safe.
M MALFUNCTIONS
N DISPOSAL
O DATI TECNICI / TECHNICAL DATA
P EXPLODED VIEWS AND OVERALL DIMENSIONS
D BECOMING ACQUAINTED WITH K24

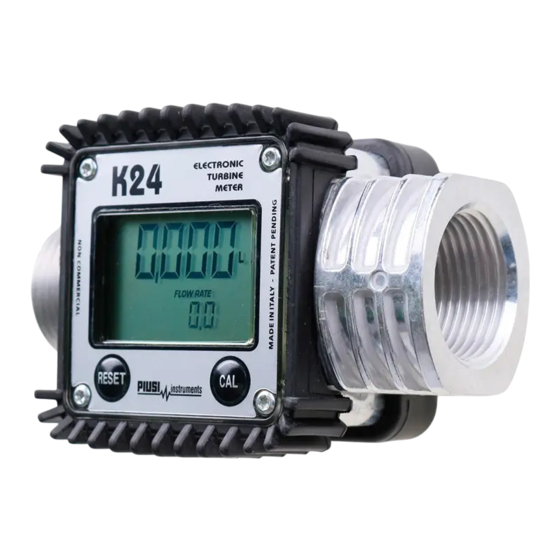

FOREWORD Electronic digital meter featuring a turbine measurement system, de-
A DECLARATION OF CONFORMITY
signed for precise measuring of low viscosity fluids.
The undersigned:
K24 is a bi-directional meter with LCD display and calibration
PIUSI S.p.AVia Pacinotti c.m. z.i.Rangavino
buttons. The body is made of aluminum (conductive) and de-
46029 Suzzara - Mantova - Italy
signed for high flow 120 l/min. (32 GPM).
K24 is available in 3 versions:
HEREBY STATES
1 a METER – with LCD display and calibration buttons (SILVER LABEL)
under its own responsibility, that the equipment described below:
Descriprion: METER b METER – with LCD display and calibration buttons (RED LABEL)
Model: K24 2 PULSER – single-channel impulse, cannectable with a remote display.
Serial number: refer to Lot Number shown on CE plate affixed to productYear of
manufacture: refer to the year of production shown on the CE plate affixed to the D.1 COMPATIBLE LIQUIDS
productis in conformity with the legal provisions indicated in the directives :
Turbine The turbine is placed inside a hole through the body of k24, fitted with
- Electromagnetic Compatibility Directive 2004/108/EC
measurement M-f threaded inlet and outlet.
system The liquids compatible with k24 are at low viscosity, namely:
The documentation is at the disposal of the competent authority following motivated
Diesel fuel
request at Piusi S.p.A. or following request sent to the email address: doc_tec@
Kerosene
piusi.comThe person authorised to compile the technical file and draw up the decla-
ration is Otto Varini as legal representative. Gasoline
Gasoline blended alcol max 15%
ATTENTION DO NOT USE WITH SUNDRIES LIQUIDS
Suzzara, 01/01/2010 Otto Varini
legal representative.
Main components K24 Meter
1 LCD display
B GENERAL WARNINGS
2 RESET key
Important To ensure operator safety and to protect the pump from po- 3 CAL key
precautions tential damage, workers must be fully acquainted with this 4 Technical data plate
instruction manual before performing any operation.
Symbols used
The following symbols will be used throughout the manual
in the manual to highlight safety information and precautions of particular
2 1
importance:
ATTENTION
3
This symbol indicates safe working practices for opera-
tors and/or potentially exposed persons.
WARNING
This symbol indicates that there is risk of damage to the
equipment and/or its components.
NOTE
This symbol indicates useful information.
D.2 DISPLAY LCD
Manual pres- his manual should be complete and legible throughout. It
ervation should remain available to end users and specialist installation
FOREWORD The "LCD" of the METER features two numerical registers and various
and maintenance technicians for consultation at any time.
indications displayed to the user only when the applicable function
Reproduction All reproduction rights are reserved by Piusi S.p.A. The text can- so requires.
rights
not be reprinted without the written permission of Piusi S.p.A. 1 Partial register (5 figures with moving
THIS MANUAL IS THE PROPERTY OF Piusi S.p.A.
comma FROM 0.1 to 99999) indicating
ANY REPRODUCTION, EVEN PARTIAL, IS FORBIDDEN.
the volume dispensed since the reset
button was last pressed
C SAFETY INSTRUCTIONS
2 Indication of battery charge
C.1 SAFETY WARNINGS
3 Indication of calibration mode
Mains - prelim- ATTENTION
4 Totals register (6 figures with moving
inary checks
You must avoid any contact between the electrical pow-
comma FROM 0.1 to 999999), that can
before instal- er supply and the fluid that needs to be FILTERED.
indicate two types of Total:
lation
Maintenance 4.1. General Total that cannot be reset (TOTAL)
Before any checks or maintenance work are carried out, dis-
control connect the power source. 4.2. Resettable total (Reset TOTAL)
For your safety,
When metering flammable liquids, observe precautions 5 Indication of total multiplication factor
review the ma-
against fire or explosion (x10 / x100)
When handling hazardous liquids, always follow the liquid
jor warnings
manifacturer's safety precautions
and cautions
1
Always dispose of used cleaning solvents in a safe manner
below before
according to the solvent manifacturer's instructions.
operating your
During meter removal, liquid may spill. Follow the liquid 2
meter
manifacturer's safety precautions to clean up minor spills
3
Do not blow compressed air through the meter
Do not allow liquids to dry inside the meter
C.2 FIRST AID RULES
D.3 DISPLAY POSITIONING (METER VERSION ONLY)
Contact with In the event of problems developing following EYE/SKIN
the product CONTACT, INHALATION or INGESTION of the treated product,
FOREWORD
The square shape of the k24 body allows the card to be rotated in its
please refer to the SAFETY DATA SHEET of the fluid handled.
housing, thus ensuring great versatility in positioning
NOTE Please refer to the safety data sheet for the product
This allows easy display readings in any position. The card housing
is closed by a plastic cover sealed through a rubber protection act-
ing as a gasket as well. This can be easily removed unscrewing the
SMOKING
When operating the dispensing system and in particular dur- 4 screws that fix both the cover and the card (1).
PROHIBITED
ing refuelling, do not smoke and do not use open flame. ATTENTION While fixing the K24 card, make sure the battery con-
tact cable is not placed above the circular housing of
the bulb.
ATTENTION When metering flammable liquids, observe precau-
tions against fire or explosion
When handling hazardous liquids, always follow the
liquid manifacturer's safety precautions.
Do not submerge the meter
C.3 GENERAL SAFETY RULES
Essential pro- Wear protective equipment that is:
tective equip- suited to the operations that need to be performed;
ment charac- resistant to cleaning products.
teristics
Personal pro- Wear the following personal protective equipment during
tective equip- handling and installation:
ment that safety shoes;
must be worn D4 USERS BUTTONS
FOREWORD The METER features two buttons (RESET and CAL) which individ-
close-fitting clothing;
ually perform two main functions and, together, other secondary
functions.
MAIN - for the RESET key, resetting the partial register and Reset Total
protective gloves;
FUNCTIONS
- for the CAL key, entering instrument calibration mode
PERFORMED
SECONDARY Used together, the two keys permit entering configuration mode
safety goggles;
FUNCTIONS where the desired unit of measurement can be set.
Protective instruction manual LEGEND CALIBRATE MEANS PERFORMING ACTIONS ON THE METER KEYS.
equipment BELOW IS THE LEGEND OF THE SYMBOLS USED TO DESCRIBE
THE ACTIONS TO BE PERFORMED
WARNING If handling hazardous liquids, always follow the Liquid
SHORT LONG
Manifacturer's Safety Precautions. Wear protective
PRES- CAL PRES-
clothing such as goggles, gloves and respirator as
SURE SURE
instructed.
OF CAL OF CAL
When metering flammable liquids, observe precau-
KEY KEY
tions against fire or explosion. Do not meter in the pres-
ence of any source of ignition including running or hot
engines, lighted cigarettes, or gas or electric heaters
ENGLISH ENGLISH
E OPERATING MODES
OPERATING
The user can choose between two different operating modes:
MODES The meter features a non-volatile memory for storing the dispensing
data, even in the event of a complete power break for long periods.
The measurement electronics and the LCD display are fitted in the top
part of the K24 which remains isolated from the fluid-bath measure-
ment chamber and sealed from the outside by means of a cover.
1 - Normal Normal Mode: Mode with display of Partial and Total dis-
Mode pensed quantities
2 - Flow rate Flow Rate Mode: Mode with display of Flow Rate, as well as
Mode Partial dispensed quantity.
F INSTALLATION
FOREWORD K24 features a threaded, perpendicular inlet and outlet (1" NPT
BSP male and female that can be combined together). It has been
designed to be easily installed in any position: fixed in-line or mobile
on a dispensing nozzle. In order to improve the life of the turbine, it is
recommended to fit a strainer before the meter itself
ATTENTION For installations on system, position meter so that the
battery housing can be easily reached.
Connections To protect against the leakage, make sure all threads are
sealed with two or three turns of thread tape or a sealing
compound compatible with the liquid being metered
ATTENTION Make sure the thread tape or sealing compound does
interfere with flow
Make sure there are no leaks in the connections.
To seal leaks, remove and inspect the meter and re-
place the thread tape or sealant. Refer to the Trouble-
shooting Section
G DAILY USE
FOREWORD The only operations that need to be done for daily use are partial and/
or resettable total register resetting. The user should use only the dis-
pensing system of k24. Occasionally the meter may need to be con-
figured or calibrated. To do so, please refer to the relevant chapters.
Below are the two typical normal operation displays. One display page shows the par-
tial and reset total registers. The other shows the partial and general total. Switchover
from resettable total to general total display is automatic and tied to phases and times
that are in factory set and cannot be changed.
NOTA 6 digits are available for Totals, plus two icons x 10 /
x100. The increment sequence is the following:
0.0 -> 99999.9 -> 999999 -> 100000 x 10 -> 999999 x
10 ->100000 x 100 -> 999999 x 100
Main components K24 Pulser
1 Plate with technical data
G.1 DISPENSING IN NORMAL MODE
FOREWORD
Normal mode is the standard dispensing. While the count is made, the
partial and resettable total are displayed at the same time (reset total).
WARNING
4 Should one of the keys be accidentally pressed during
dispensing, this will have no effect.
1
STAND BY A few seconds after dispensing has ended, on the lower register, the
display switches from resettable total to general total: the word reset
above the word total disappears, and the reset total is replaced by
the general total.
This situation is called standby and remains stable until the user
operates the k24 again.
G.1.1 PARTIAL RESET (NORMAL MODE)
6 Indication of type of total, (TOTAL /
The partial register can be reset by pressing the reset key when
Reset TOTAL);
the meter is in standby, meaning when the display screen
shows the word "TOTAL".
7 Indication of unit of measurement of
Totals: L=Litres Gal=Gallons
8 Indication of Flow Rate mode After pressing the reset key, during reset, the display screen
first of all shows all the lit-up digits and then all the digits that
9 Indication of unit of measurement of are not lit up.
Partial: Qts=Quarts Pts=Pints
L=Litres Gal=Gallons
At the end of the process, a display page is first of all shown
with the reset partial and the reset total
9
and, after a few moments, the reset total is replaced by the
8
non resettableTotal.
7
4 5 6
G.1.2 RESETTING THE RESET TOTAL
VALID JUST FOR METER VERSION WITH SILVER LABEL
The reset total resetting operation can only be performed
after resetting the partial register. The reset total can in
fact be reset by pressing the reset key at length while
the display screen shows reset total as on the following
display page:
Schematically, the steps to be taken are:
1 Wait for the display to show normal standby display page
(with total only displayed)
2 Press the reset key quickly
3 The meter starts to reset the partial
4 While the display page showing the reset total is displayed
Press the reset key again for at least 1 second
5 The display screen again shows all the segments of the
display followed by all the switched-off segments and
finally shows the display page where the reset Reset
Total is shown.
C.2 DISPENSING WITH FLOW RATE MODE DISPLAY
VALID JUST FOR METER VERSION WITH SILVER LABEL
It is possible to dispense fluids, displaying at the same
time::
1 the dispensed partial
2 the Flow Rate in [Partial Unit / minute] as shown on the
following display page:
Procedure for entering this mode:
SHORT LONG 1 wait for the Remote Display to go to Standby, meaning
PRES- PRES- the display screen shows Total only
CAL CAL CAL
RESET RESET RESET RESET
SURE SURE 2 quickly press the CAL key.
OF OF 3 Start dispensing
RESET RESET
The flow rate is updated every 0.7 seconds. Consequently, the display could be relatively
KEY KEY
unstable at lower flow rates. The higher the flow rate, the more stable the displayed
value.
ENGLISH
H.2.2.1
IMPORTANT The flow rate is measured with reference to the unit of
measurement of the Partial. For this reason, in case of
ACTION
the unit of measurement of the Partial and Total being
1 NONE
different, as in the example shown below, it should be
Meter in Standby
remembered that the indicated flow rate relates to
the unit of measurement of the partial. In the example
shown, the flow rate is expressed in Qts/min.
LONG CAL key keying
CAL CAL CAL The Meter enters calibration mode, shows <<CAL>> and
displays the calibration factor in use instead of partial. The
words "Fact" and "USER" indicate which of the two factors
(factory or user) is currently in use.
2
Important: This factor is that which the instrument also uses for
field calibration measurement operations
The word "Gal" remaining alongside the flow rate
LONG RESET key keying
refers to the register of the Totals (Reset or NON Reset) RESET RESET RESET The Meter shows "CAL" and the partial at zero. The Meter is
or
which are again displayed when exiting from the flow ready to perform in-field calibration.
rate reading mode.
3
To return to "Normal" mode, press the CAL key again. If one of the two keys RESET or
4 DISPENSING INTO SAMPLE CONTAINER
CAL is accidentally pressed during the count, this will have no effect.
Without pressing any key, start dispensing into the sample
IMPORTANT Even though in this mode they are not displayed, both the
container
Reset Total and the General Total (Total) increase. Their
value can be checked after dispensing has terminated,
returning to "Normal" mode, by quickly pressing CAL.
G.2.1 PARTIAL RESET (FLOW RATE MODE)
Dispensing can be interrupted and started again at will.
To reset the Partial Register, finish dispensing and wait for
Continue dispensing until the level of the fluid in the sample
the Remote Display to show a Flow Rate of 0.0 as indicated
container has reached the graduated area. There is no need to
in the illustration reach a preset quantity.
then quickly press RESET
H CALIBRATION
When operating close to extreme use or flow rate conditions (close to minimum or
SHORT RESET key keying
maximum acceptable values), an on-the-spot calibration may be required to suit RESET The Meter is informed that the calibration dispensing
the real conditions in which the K24 is required to operate. operation is finished.
Make sure dispensing is correctly finished before performing
this operation. To calibrate the Meter, the value indicated by
H1 DEFINITIONS 5
the partial totaliser (example 9.800) must be forced to the
real value marked on the graduated sample container. In the
CALIBRATION Multiplication factor applied by the system to the electrical pulses
bottom left part of the display an arrow appears (upwards and
FACTOR OR received, to transform these into measured fluid units.
downwards), that shows the direction (increase or decrease) of
"K FACTOR"
the value change displayed when the following operations 6
FACTORY K Factory-set default factor. It is equal to 1,000. This calibration factor or 7 are performed.
FACTOR ensures utmost precision in the following operating conditions: SHORT RESET key keying
RESET The arrow changes direction. The operation can be repeated to
Fluid diesel
alternate the direction of the arrow.
Temperature: 20°C
Flow rate: 50 lit/min (13 GPM)
6
Even after any changes have been made by the user, the factory k
7 SHORT/LONG CAL key keying
factor can be restored by means of a simple procedure.
The indicated value changes in the direction indicated by the
USER K FACTOR:
Customized calibration factor, meaning modified by calibration. CAL arrow
- one unit for every short CAL key keying
CAL CAL CAL
- continually if the CAL key is kept pressed. The speed increase
H2 CALIBRATION MODE
rises by keeping the key pressed. If the desired value is
exceeded, repeat the operations from point (6).
Why calibrate? 1 Display the currently used calibration factor:
2 Return to factory calibration (Factory K Factor) after a pre- LONG RESET key keying
vious calibration by the user RESET RESET RESET The Meter is informed that the calibration procedure is finished.
Before performing this operation, make sure the INDICATED
3 Change the calibration factor using one of the two previ-
value is the same as the REAL value.
ously indicated procedures
.
8
FOREWORD Two procedures are available for changing the Calibration Factor:
1 In-Field Calibration, performed by means of a dispensing
operation
2 Direct Calibration, performed by directly changing the
calibration factor The Meter calculates the new USER K FACTOR ; this calculation
In calibration mode, the partial and total dispensed quantities indicated on the display could require a few seconds, depending on the correction to
be made
screen take on different meanings according to the calibration procedure phase.
ATTENTION: If this operation is performed after action (5),
In calibration mode, the K24 cannot be used for normal dispensing operations.
without changing the indicated value, the USER K FACTOR would
In "Calibration" mode, the totals are not increased
be the same as the FACTORY K FACTOR, thus it is ignored.
ATTENTION The K24 features a non-volatile memory that keeps NO OPERATION
9
the data concerning calibration and total dispensed At the end of the calculation, the new USER K FACTOR is shown
for a few seconds, after which the restart cycle is repeated to
quantity stored for an indefinite time, even in the
finally achieve standby condition.
case of a long power break; after changing the bat-
IMPORTANT: From now on, the indicated factor will become
teries, calibration need not be repeated. the calibration factor used by the Meter and will continue to
remain such even after a battery change
H.2.1 DISPLAY OF CURRENT CALIBRATION FACTOR
10 NO OPERATION
AND RESTORING FACTORY FACTOR.
The Meter stores the new work calibration factor and is
ready to begin dispensing, using the USER K FACTOR that
By pressing the CAL key while the appli- has just been calculated..
CAL CAL CAL
ance is in Standby, the display page ap-
pears showing the current calibration fac-
H.2.3 DIRECT MODIFICATION OF K FACTOR
tor used. If no calibration has ever been
performed, or the factory setting has If normal Meter operation shows a mean percentage error, this can be corrected by ap-
plying to the currently used calibration factor a correction of the same percentage. In this
been restored after previous calibrations,
case, the percentage correction of the USER K FACTOR must be calculated by the opera-
the following display page will appear:
The word "Fact" abbreviation for "factory" tor in the following way
shows that the factory calibration factor
is being used
New cal. Factor = Old Cal Factor *
If, on the other hand, calibrations have
been made by the user, the display page
Example:
will appear showing the currently used
Error percentage found: E% - 0.9 %
calibration factor ( in our example 0,998) .
The word "user" indicates a calibration fac- CURRENT calibration factor: 1.000
tor set by the user is being used.. New USER K FACTOR:
If the Meter indicates less than the real dispensed value (negative error) the new calibra-
CAL
tion factor must be higher than the old one as shown in the example. The opposite ap-
plies if the Meter shows more than the real dispensed value (positive error).
ACTION
CAL CAL CAL
The flow chart alongside
1 NONE
shows the switchover logic METER in Standby.
RESET
from one display page to
another RESET
In this condition, the Reset
LONG CAL KEY KEYING
key permits switching CAL
CAL CAL CAL
Meter enters calibration mode, shows "CAL" and displays the
from User factor to Factory
calibration factor being used instead of the partial. The words
factor.
"Fact" and "User" indicate which of the two factors (factory or
To confirm the choice of user) is currently being used.
2
calibration factor, quickly
LONG RESET KEY KEYING
press CAL while "User" or
RESET RESET RESET The Meter shows "CAL" and the zero partial total.
"Fact" are displayed.
Meter is ready to perform in-field calibration by dispensing –
After the restart cycle, the TIME OUT see previous paragraph.
K24 uses the calibration 3
factor that has just been
LONG RESET KEY KEYING
confirmed
We now go on to Direct change of the calibration factor:
the word "Direct" appears together with the Currently Used
RESET RESET RESET
calibration factor. In the bottom left part of the display, an
ATTENTION When the Factory Factor is confirmed, the old User arrow appears (upwards or downwards) defining the direction
(increase or decrease) of change of the displayed value when
factor is deleted from the memory
4
subsequent operations 5 or 6 are performed.
SHORT RESET KEY KEYING
RESET Changes the direction of the arrow. The operation can be
repeated to alternate the direction of the arrow.
H.2.2 IN FIELD CALIBRATION
5
FOREWORD This procedure calls for the fluid to be dispensed into a gradu-
SHORT/LONG CAL KEY KEYING
ated sample container in real operating conditions ( flow rate,
CAL
The indicated value changes in the direction indicated by the
viscosity, etc.) requiring maximum precision.
arrow
CAL CAL CAL
ATTENTION For correct K24 calibration, it is most important to:
- one unit for every short CAL key keying
- continually if the CAL key is kept pressed. The speed increase
6
rises by keeping the key pressed. If the desired value is
exceeded, repeat the operations from point (5).
1
When the Factory Factor is confirmed, the old User factor is deleted
LONG RESET KEY KEYING
from the memory
RESET RESET RESET The Meter is informed that the calibration procedure is
2 finished.
use a precise Sample Container with a capacity of not less than 5
litres, featuring an accurate graduated indicator. Before performing this operation, make sure the INDICATED
7 value is that required.
3 ensure calibration dispensing is done at a constant flow rate equiva-
lent to that of normal use, until the container is full; 8 NO OPERATION
At the end of the calculation, the new USER K FACTOR is shown
4 Not reduce the flow rate to reach the graduated area of the con-
for a few seconds, after which the restart cycle is repeated to
tainer during the final dispensing stage (the correct method during
finally achieve standby condition.
the final stages of sample container filling consists in making short
IMPORTANT: From now on, the indicated factor will become
top-ups at normal operation flow rate) ; the calibration factor used by the Meter and will continue to
remain such even after a battery change
5 after dispensing, wait a few minutes to make sure any air bubbles
9 NO OPERATION
are eliminated from the sample container; only read the Real value
The Meter stores the new work calibration factor and is ready
at the end of this stage, during which the level in the container could
to begin dispensing, using the USER K FACTOR that has just
drop.
been changed.
6 Carefully follow the procedure indicated below.
ENGLISH ENGLISH
IN-FIELD CALIBRATION PROCEDURE I METER CONFIGURATION
The METER feature a menu with which the user can select the main measurement unit,
DISPLAY
Quarts (Qts), Pints (Pts), Litres (Lit), Gallons (Gal);
The combination of the unit of measurement of the Partial register and that of the
Totals is predefined according to the following table:
Unit of Measurement
Combination no.
Partial Register
1 Litres (L)
2 Gallons (Gal)
3 Quarts (Qts)
4 Pints (Pts)
To choose between the 4 available combinations:
1 Wait for the METER to go to Standby
Then press the CAL and RESET keys together. Keep these pressed
RESET CAL
until the word "UNIT" appears on the screen together with the unit of
+
measurement set at that time (in this example Litres / Litres )
2
3 Every short press of the RESET key, the various combinations
of the units of measurements are scrolled as shown below:
Gal
RESET
RESET
RESET
Indicated value Real value
By pressing the CAL key at length, the new settings will
CAL CAL CAL
be stored, the METER will pass through the start cycle and
will then be ready to dispense in the set units.
4
ATTENTION The Reset Total and Total registers will be automati-
cally changed to the new unit of measurement.
NO new calibration is required after changing the
Unit of Measurement.
L MAINTENANCE
BATTERY
Use 2x1.5 V alkaline batteries size AAA
REPLACEMENT
WARNING K24 should be installed in a position allowing the
batteries to be replaced without removing it from
the system.
BATTERIES Check the batteries and terminals at least every
year to ensure proper operation. It is strongly rec-
ommended that terminals be cleaned annually
K24 features two low-battery alarm levels:
1 When the battery charge falls below the first level on the LCD,
the fixed battery symbol appears. In this condition, K24 con-
tinues to operate correctly, but the fixed icon warns the user
that it is ADVISABLE to change the batteries.
Indicated value Real value 2 If K24 operation continues without changing the batteries,
the second battery alarm level will be reached which will
prevent operation. In this condition the battery icon starts to
flash and is the only one to remain visible on the LCD.
TO REMOVE BATTERY
ATTENTION During meter removal, liquid may spill. Follow the
liquid manifacturer's safety precautions for clean
up of minor spills.
1 Ensure all liquid is drained from the meter. This could
include draining the hose, meter, nozzle or pipe
2 Wear protective clothing as necessary, loosen both ends
of the meter. Use a wrench only on the meter's flat metal
surfaces
3 If the meter is not immediately installed again, cap the
hose end or pipe to prevent spills
To change the 1 Press RESET to update all the totals
batteries, with
2 Loosen the 4 fixing screws of the lower cover
reference to the
3 Remove the old batteries and disconnect the plug
exploded diagram
4 Place the new batteries in the same position as the old ones
positions, proceed
(sure to put the battery in the correct way)
( ) as follows
5 close the cover again, by positioning the rubber pro-
100 - E%
tection as a gasket
100
6 K24 will switch on automatically and normal opera-
tion can be resumed
The K24 will display the same Reset Total, the same Total and the same Partial indi-
cated before the batteries were changed.
After changing the batteries, the meter does not need calibrating again.
1.000 * [(100 – ( - 0.9))/100] = 1.000 * [(100 + 0.9)/100] = 1.009
ATTENTION Never blow compressed air trought the meter. It
could damage the rotor.
CLEANING Only one operation is necessary to clean the k24.
After removing k24 from the plant where it was built
DISPLAY
in, any residual elements can be removed by washing
or mechanically-handling.
If this operation does not restore a smooth rotation of
the turbine, it will have to be replaced.
ATTENTION Do not discard the old batteries in the environment.
Refer to local disposal regulations.
Do not use compressed air onto the turbine in order
to avoid its damage because of an excessive rotation
TO STORE Follow the liquid manifacturer's instructions for the
disposal of contaminated cleaning solvents
K24 Front face replacement
1 Carefully remove the screws from the corners of the
front panel, and then carefully lift the front cover up
away from the main body of the meter.
2 Carefully remove the screws from the corners of the
front panel, and then carefully lift the front cover up
away from the main body of the meter.
3 When the new panel is fitted make sure the power
adapter is fitted correctly with the location pin in the
correct way
4 Carefully refit the display panel back onto the main
body making sure the wire is tucked into the corner
and replace the screws
K24
ELECTRONIC ALLUMINIUM
TURBINE
Unit of Measurement
Totals Register
METER - PULSER
Litres (L)
Gallons (Gal)
Gallons (Gal)
Gallons (Gal)
Qts
Pts
Gal
MANUALE D'USO, MANUTENZIONE
Italiano
E CALIBRAZIONE
USE, MAINTENANCE AND
English
CALIBRATION MANUAL
Bulletin M0225 ITEN rev. 0
M MALFUNCTIONS
Problem Possible cause Remedial Action
LCD: no indication Bad battery contact Check battery contacts
With reference to paragraph
Wrong K FACTOR
H, check the K FACTOR
Not enough measure-
The meter works below Increase the flow rate until an
ment precision
minimum acceptable flow acceptable flow rate range has
rate. been achieved
Reduced or zero flow
TURBINE blocked Clean the TURBINE
rate
Incorrect installation of Repeat the reassembly pro-
The meter does not
gears after cleaning cedure
count, but the flow
Possible electronic card
rate is correct Contact your dealer
problems
Battery discharged or installed Check battery charge and/or
K24 is switched of
in the wrong way check the battery position
N DISPOSAL
Foreword
If the system needs to be disposed, the parts which make it up
must be delivered to companies that specialize in the recycling
and disposal of industrial waste and, in particular:
Disposing of pack- The packaging consists of biodegradable cardboard which can be
ing materials delivered to companies for normal recycling of cellulose.
Metal Parts Dis- Metal parts, whether paint-finished or in stainless steel, can be
posal consigned to scrap metal collectors.
Disposal of electric
These must be disposed of by companies that specialize in the
and electronic disposal of electronic components, in accordance with the indica-
components tions of directive 2002/96/CE (see text of directive below).
Informa-
European Directive 2002/96/EC requires that all equipment
tion regard- marked with this symbol on the product and/or packaging not
ing the en- be disposed of together with non-differentiated urban waste.
vironment The symbol indicates that this product must not be disposed of
for clients together with normal household waste. It is the responsibility of
the owner to dispose of these products as well as other electric or
residing
within the Euro- electronic equipment by means of the specific refuse collection
pean Union structures indicated by the government or the local governing
authorities.
Miscellaneous Other components, such as pipes, rubber gaskets, plastic parts
parts disposal and wires, must be disposed of by companies specialising in the
disposal of industrial waste.
P EXPLODED VIEWS AND OVERALL DIMENSIONS
/VISTE ESPLOSE ED INGOMBRI
74.7
PULSER
45.78
1"NPT 59.6 76.3
