EVM Overview
1 EVM Overview
This document describes how to connect the EVM to your computer and test equipment to evaluate device
performance and understand device features. The document also describes how to install and use the
associated evaluation module software.
1.1 ADS8568EVM-PDK Kit Features
The ADS8568 evaluation module kit includes the following features:
•
Hardware and software required for diagnostic testing as well as accurate performance evaluation of the
ADS8568 ADC
•
Digital and analog interface power with USB power. External power required for high voltage ±15 V supply.
•
Easy-to-use evaluation software for 64-bit Microsoft Windows™7, Windows 8, and Windows 10 operating
systems.
•
PHI controller translates USB (2.0) or higher to parallel, or serial digital communications.
Signal
Source
Signal
Source
1.2 ADS8568EVM Board Features
•
Eight input channels connected to external single ended signals source applied to SMA connectors or header
•
Serial and parallel interface connects to the PHI controller via 60 pin connector (J10)
•
High voltage power supplies (HVDD, and HVSS) are not included. Connect common lab supplies via terminal
strip J9.
•
Low voltage supplies (AVDD, and DVDD) generated using USB power from the PHI controller.
•
Integrated or external voltage reference options available.
1.3 Related Documentation From Texas Instruments
Related Documents
lists devices that are used in this EVM and may be useful in related designs.
4
ADS8568EVM-PDK Evaluation Module
+/-15V
lab supply
B0
A0 A0
J9
B1
C1
C0
D1
D0
Signal
Source
Included in kit

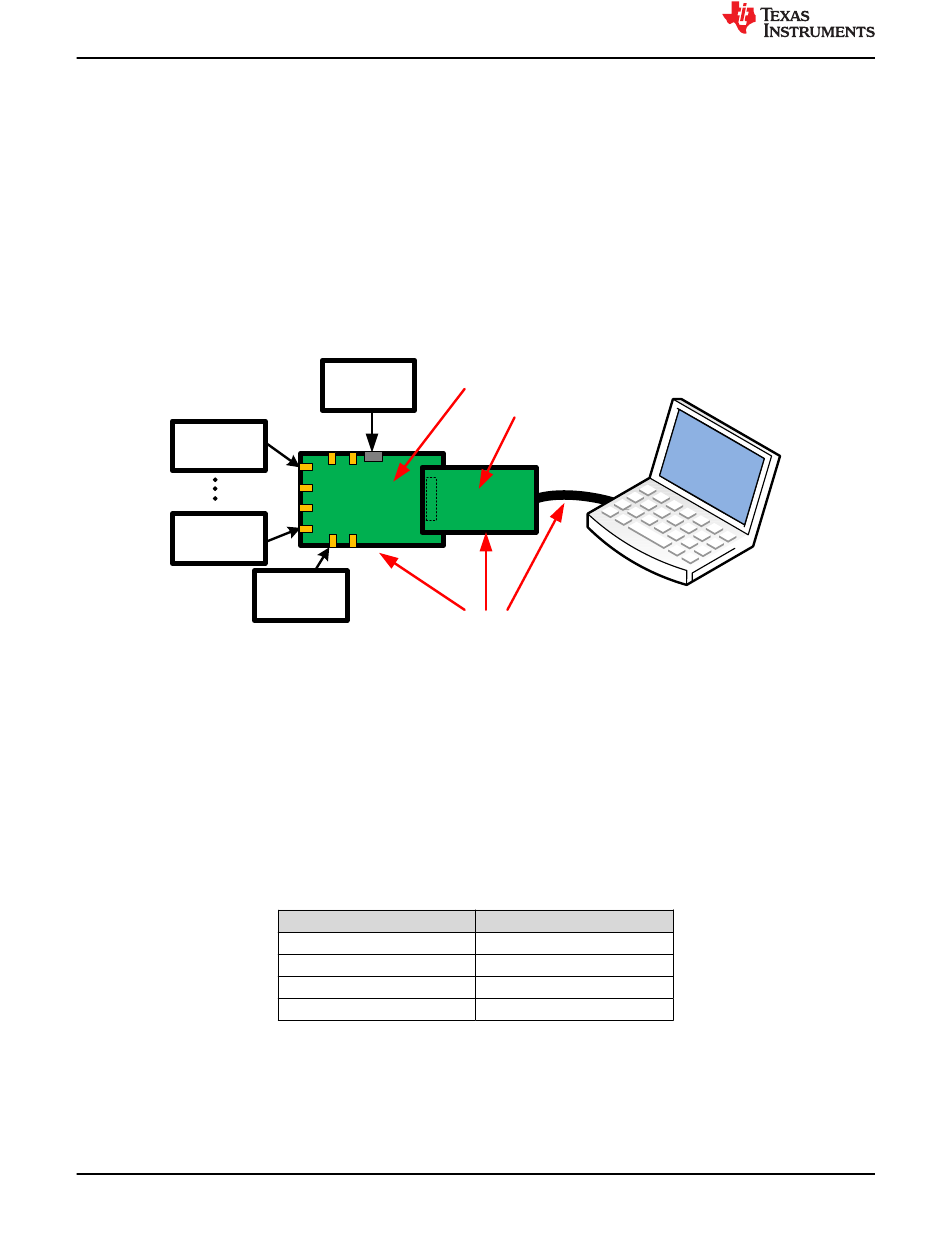

Figure 1-1. System Connection for Evaluation
Table 1-1. Related Documents
Device
ADS8568
OPA2211
TPS7A4700
REF6025
