www.ti.com

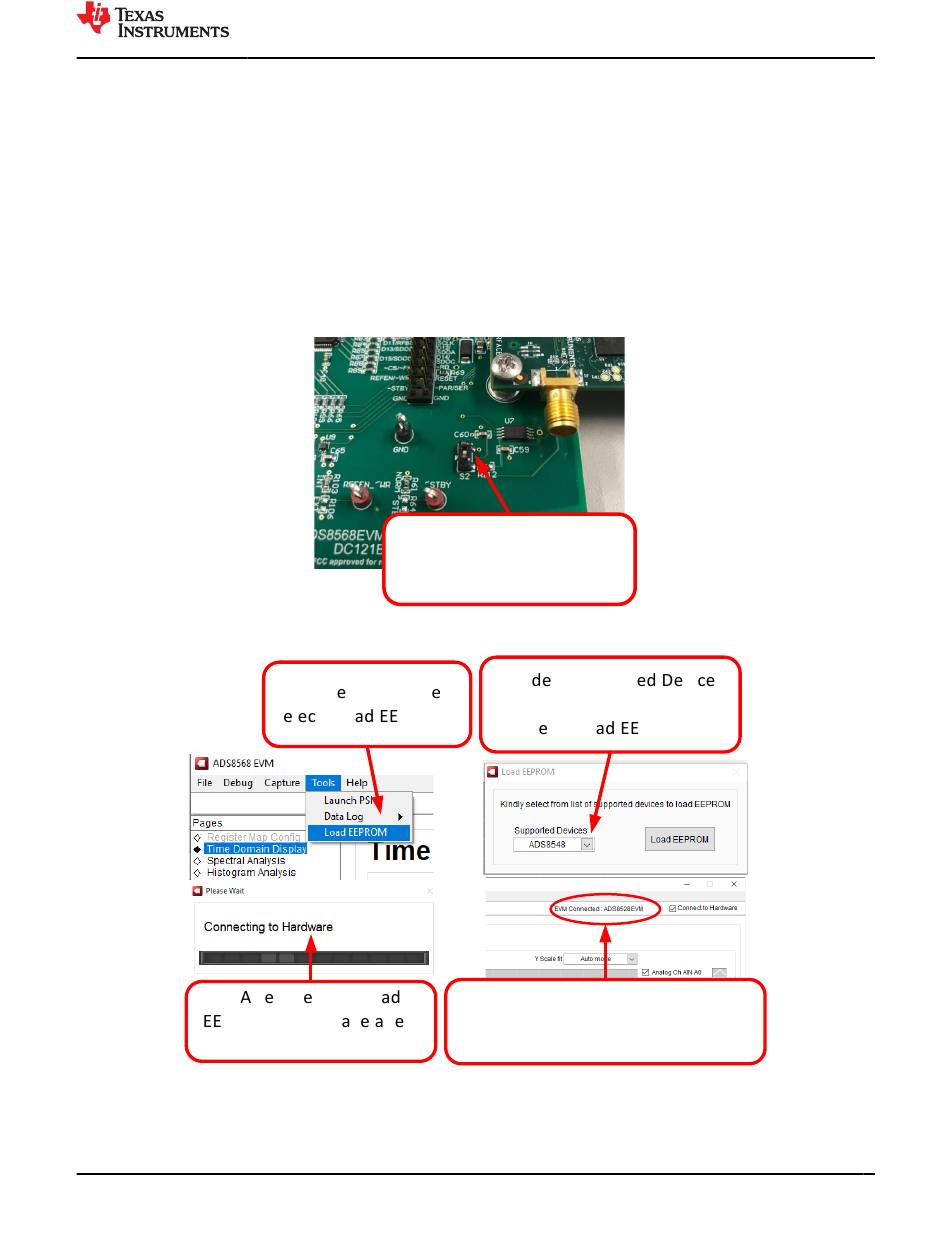

7 Modifying Hardware and Using Software to Evaluate ADS8548 and ADS8528
The ADS8568 is part of a family of related devices. This EVM hardware and software will support the entire
family as all the devices are pin-for-pin compatable. The ADS8548 is the 14 bit version of the device, and the
ADS8528 is the 12 bit version of the device. The procedure below shows how to modify the hardware and
software to evaluate the other devices in this family.
1. Desolder the ADS8568 device an replace it with the device you want to evaluate.
2. Enable the EEPROM for writing. This is done by changing switch S2 to the top position using tweezers. For
details, see
Figure
7-1.
3. Connect EVM and start GUI as described in
4. Use the "Tools" menu to "Load EEPROM" according to the device that is currently installed. When this
procedure is successfully completed, you will see the status bar at the top of the software update according
to the device installed on the hardware. For details, see
3. (š Œ ‰Œ ••]vP ^o}
WZKD_ ]š Á]oo š l
minutes to load the EEPROM.
Figure 7-2. Configure EEPROM and Software for New Device
SBAU193E – JUNE 2011 – REVISED MAY 2021
Submit Document Feedback
Modifying Hardware and Using Software to Evaluate ADS8548 and ADS8528
Connecting the Hardware and Running the
Use tweezers to change position of
Switch S2 to up as shown to allow
the EEPROM write operation.
Figure 7-1. Enable EEPROM for Writing
1. Kv šZ ^d}}o•_ u vµ
• o š ^>}
WZKD_
( Á
Copyright © 2021 Texas Instruments Incorporated
Figure
7-2.
2. hv Œ ^^µ‰‰}Œš
select the desired device and
‰Œ •• ^>}
4. The top of status bar on the
software will indicate what the EVM
Connected has been updated to.
GUI.
À] •_
WZKD_
ADS8568EVM-PDK Evaluation Module
19
