www.ti.com

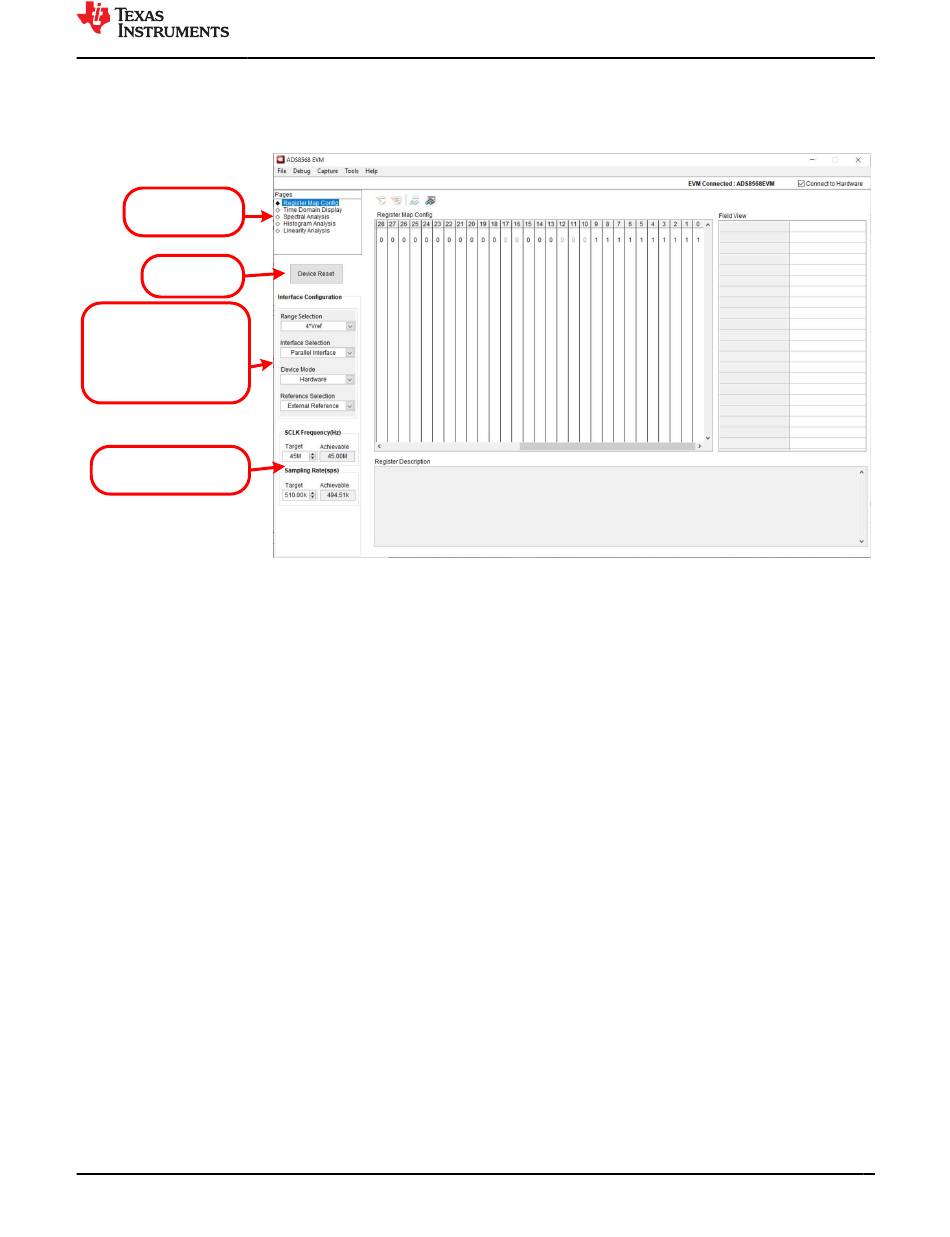

6.3 EVM GUI Global Settings for ADC Control
Figure 6-3
shows that the EVM Global controls are located on the right hand side of the GUI. These controls
choose the page display, SPI Mode, SCLK frequency, and sampling frequency.
Pages selects the
analysis display.
Toggles Reset pin on
ADC.
This device can use different input
voltage ranges, serial or parallel
communications, hardware or
software mode, and internal or
external reference. Refer to the
data sheet for details on these
modes.
The maximum clock is 45MHz and
the maximum sampling rate is
494.5kHz for this device.
SBAU193E – JUNE 2011 – REVISED MAY 2021
Submit Document Feedback
Figure 6-3. Global Settings for ADC Control
Copyright © 2021 Texas Instruments Incorporated
ADS8568EVM Operation
ADS8568EVM-PDK Evaluation Module
15
