ENGINE / COOLING SYSTEM

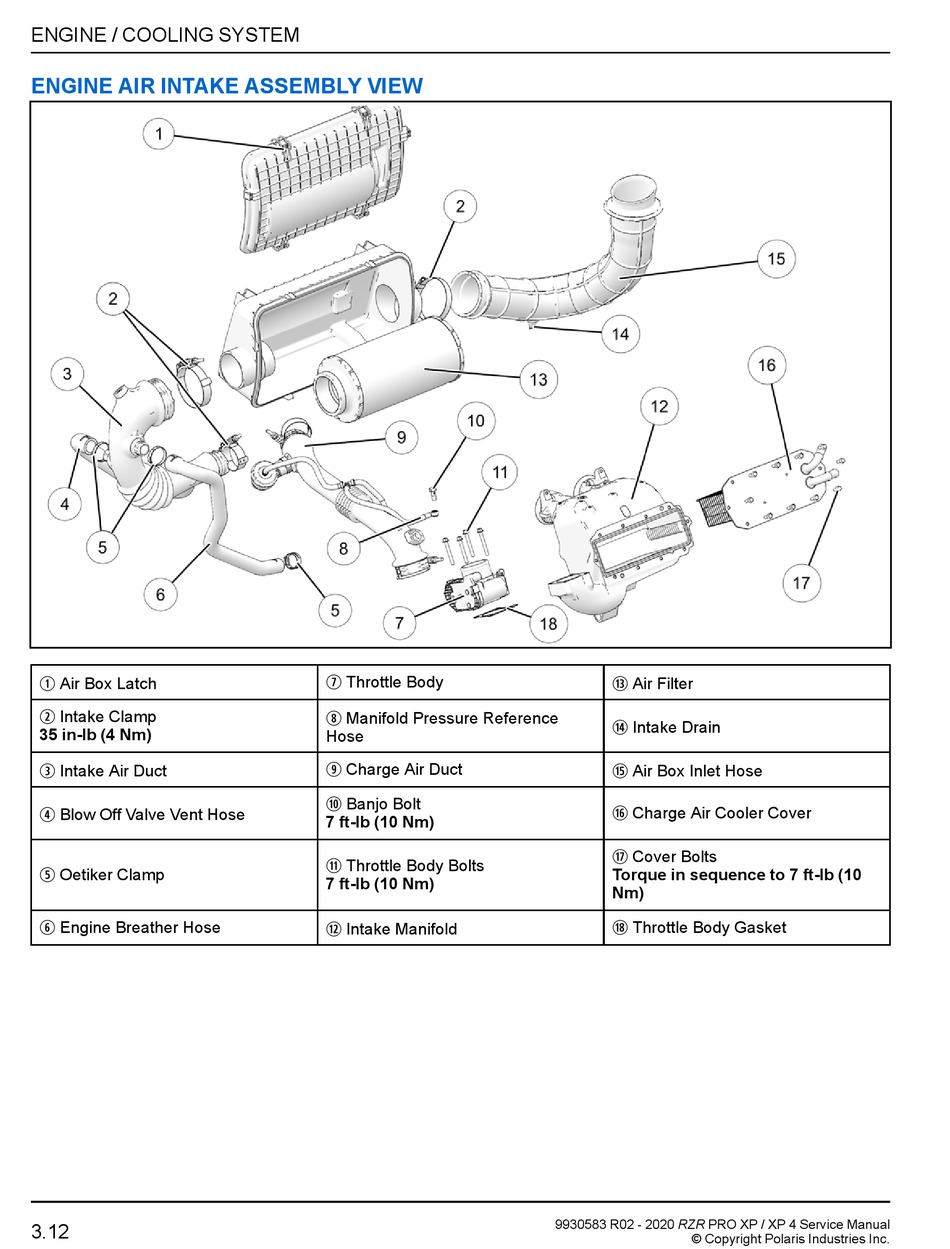

ENGINE AIR INTAKE ASSEMBLY VIEW

q
Air Box Latch
w
Intake Clamp
35 in-lb (4 Nm)
e
Intake Air Duct
r
Blow Off Valve Vent Hose
t
Oetiker Clamp
y
Engine Breather Hose
3.12
u
Throttle Body
i
Manifold Pressure Reference
Hose
o
Charge Air Duct
a
Banjo Bolt
7 ft-lb (10 Nm)
s
Throttle Body Bolts
7 ft-lb (10 Nm)
d
Intake Manifold
f
Air Filter
g
Intake Drain
h
Air Box Inlet Hose
j
Charge Air Cooler Cover
k
Cover Bolts
Torque in sequence to 7 ft-lb (10
Nm)
l
Throttle Body Gasket
