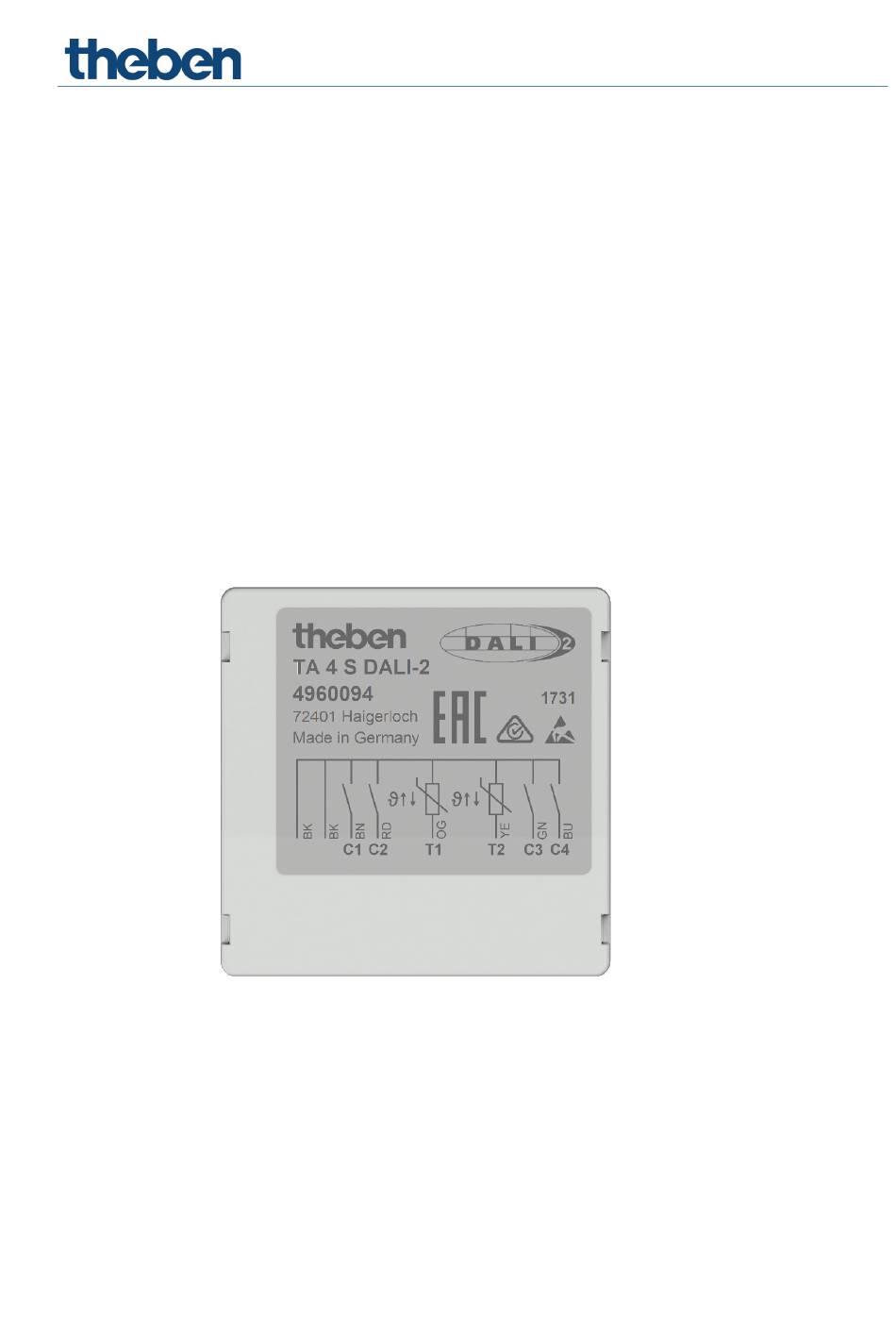

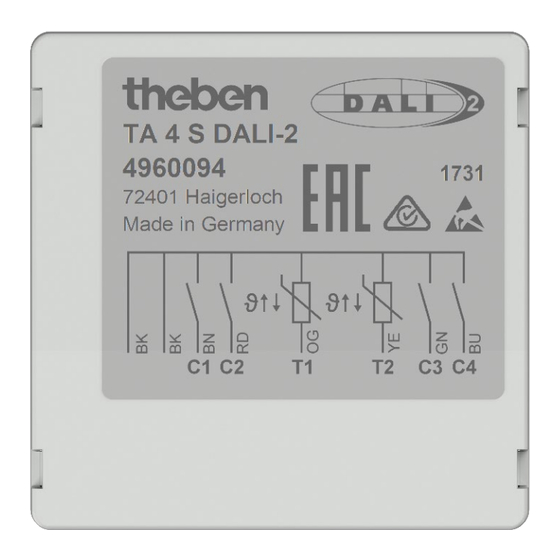

  • Page 1 Manual DALI button interface TA 4 S DALI-2 TA 4 DALI-2 - 4960094 2021-01-14_307569...

  • Page 2: Table Of Contents

    Operating modes Memory bank 2 – push button instance Memory bank 3 – absolute input device Assignment of short addresses Button function C1-C4 Determining measurement values T1/T2 via the DALI bus Accessories Contact Manual DALI button interface TA 4 S DALI-2...

  • Page 3: General

    1.3 Explanation of terms The TA 4 S DALI-2 DALI button interface is a push button processing unit of an input control device according to standard IEC 62386 Part 301 as well as an absolute input device according to standard IEC 62386 Part 302 and DiiA Guidelines "Clarifications &...

  • Page 4: Function Description

    2 Function description The TA 4 S DALI-2 button interfaces are integrated into a DALI system. Thanks to the DALI-2 standard, an application controller from any manufacturer may be used. This controller must support standard IEC 62386 Parts 101/103/301 – and if variable resistors or temperature sensors are used –...

  • Page 5: Overview Of Available Instances

    Application with a DALI-2 presence detector For switching or dimming lamps, conventional buttons are connected to the TA 4 S DALI-2 button interface. 2.2 Overview of available instances Instance Instance name Instance Standard Memory bank type Absolute input device T1...

  • Page 6: Technical Data

    Measurement range depends on the temperature sensor used. Further information can be found in chapter 8.2 Memory bank 3 – absolute input device. Manual DALI button interface TA 4 S DALI-2...

  • Page 7: Product Characteristics

    4 Product characteristics 4.1 Usage The button interface TA 4 S DALI-2 can be used in many different ways. It can be used for applications such as blinds control, lighting control, heating control, etc. The focus is on applications in residential and commercial construction: •...

  • Page 8: Dimensions

    4.3 Dimensions Manual DALI button interface TA 4 S DALI-2...

  • Page 9: Connection

    The TA 4 S DALI-2 button interfaces are connected to the DALI line.  For operation of the TA 4 S DALI-2, an external DALI supply is required. This DALI supply must be able to ensure a reliable power supply for all connected DALI participants.

  • Page 10: Installation

    6 Installation The TA 4 S DALI-2 button interfaces are installed in conventional flush-mounted boxes according to DIN 49073. Manual DALI button interface TA 4 S DALI-2...

  • Page 11: Settings

    7 Settings All settings are configured via the DALI bus.  In its initial delivery condition, the TA 4 S DALI-2 button interface does not yet have a short address. 7.1 Settings via the DALI bus All parameters and configuration commands are set by the application controller via the DALI bus.

  • Page 12: Operating Modes

    8 Operating modes The TA 4 S DALI-2 button interface is a push button input device according to standard IEC 62386 Part 301 and an absolute input device according to standard IEC 62386 Part 302. The TA 4 S DALI-2 button interface is delivered and operated with operating mode 0x00 ex works.

  • Page 13: Memory Bank 3 - Absolute Input Device

    0 °C ... 85 °C -25 °C ... 75 °C 0x00 sensor 0x00 9070496, Flush-mounted 0 °C ... 40 °C 0 °C ... 85 °C -25 °C ... 75 °C temperature sensor Manual DALI button interface TA 4 S DALI-2...
  • Page 14 0x01: corresponds to 0.1 °C 100 Ω 0x02: corresponds to 0.2 °C 200 Ω ….. ….. ….. 0x80: corresponds to 12.8 °C 12.8 kΩ ….. ….. ….. 0xFF: corresponds to 25.5 °C 25.5 kΩ Manual DALI button interface TA 4 S DALI-2...
  • Page 15 Summary of setting options for parameters Sensor type Offset Range Hysteresis Filter Beta low/high 0x00 × × × × 0x01 × × × × 0x02 × × × × × 0x03 × × × Manual DALI button interface TA 4 S DALI-2...

  • Page 16: Assignment Of Short Addresses

    DALI bus in accordance with IEC 62386 Part 301. 8.5 Determining measurement values T1/T2 via the DALI bus The TA 4 S DALI-2 button interface has 2 instances to the measurement values of the connected sensors: - Instance 0 supplies the measurement value of sensor T1 - Instance 1 supplies the measurement value of sensor T2 on the DALI bus in accordance with IEC 62386 Part 302.
  • Page 17 Setting in memory bank 3: range = [0x01] Temperature measurement value [°C] = (event info – 250) / 10 Variable resistor: Setting in memory bank 3: sensor type = [0x03] Measurement value [Ω] = event info x 100 Manual DALI button interface TA 4 S DALI-2...

  • Page 18: Accessories

    Recommended measurement range: 0 °C ... 40 °C Item no.: 9070321 Details > www.theben.de/en Room temperature sensor Protection rating IP 65 Recommended measurement range: -10 °C ... 50 °C Item no.: 9070459 Details > www.theben.de/en Manual DALI button interface TA 4 S DALI-2...
  • Page 19 Recommended measurement range: 0 °C ... 80 °C Item no.: 9070489 Details > www.theben.de/en Flush-mounted temperature sensor For flush-mounting Recommended measurement range: 0 °C ... 40 °C Item no.: 9070496 Details > www.theben.de/en Manual DALI button interface TA 4 S DALI-2...

  • Page 20: Contact

    10 Contact Theben AG Hohenbergstr. 32 72401 Haigerloch, Germany GERMANY Phone +49 7474 692-0 Fax +49 7474 692-150 Hotline Phone +49 7474 692-369 hotline@theben.de Addresses, telephone numbers, etc. www.theben.de/en Manual DALI button interface TA 4 S DALI-2...
