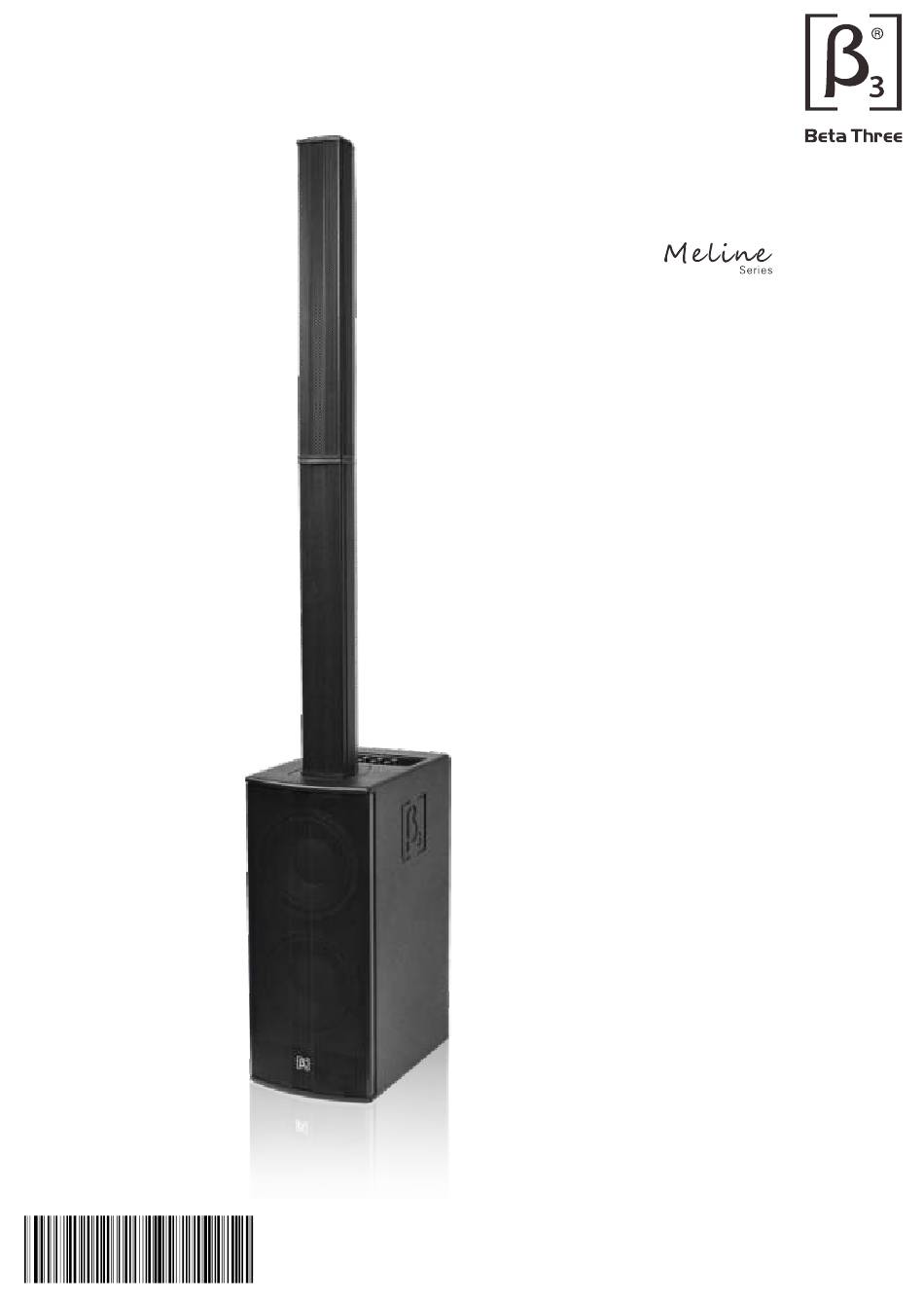

- Page 1 S2-III Professional Active Performance System User Manual U M - M e l i n e S 2 - I I I - 2 0 1 6 0 1 2 2 v e r A...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
S2-III CONTENT CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve and THD Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.elderaudio.com for the latest updates. -
Page 4: S2-Iii
S2-III INTRODUCTION S2-III Professional Active Performance System Features Compact,portable and eye catching design. System is 1.8M high to deliver full,natural sound. 12 2.75"full range and 2 25mm Silk dome tweeter vertical column speakers to ensure smooth sound coverage. Bi-amp module including DSP. Exclusive CLIK together connections,no cables required. -
Page 5: Amplifier Module
S2-III AMPLIFIER MODULE Amplifier Module 1. Volume control for the input LINE IN(12) 2. Volume control for the input MIC IN(11) 3. Volume control for the input COMBI IN(15) 4. Volume control for the input AUX IN(16) 5. Control to adjust the strength of the low frequencies radiated by the subwoofer 6. -
Page 6: Installation
S2-III INSTALLATION Installation Accessories(Optional) Installation Reference 1.Meline S2-II BAG 1. Place the subwoofer module on an even,horizontal surface(floor). 2. Start with the column module where a 6.35mm jack is located on the upper side.Place the column module- turned by approx.20 to the left-onto the connector of the subwoofer module and then turn it to the right stop so that it is firmly engaged. -
Page 7: Technical Specification
S2-III TECHNICAL SPECIFICATION Specification Frequency response(-3dB): 45Hz-20kHz 113dB/119dB(PEAK) Max.SPL: Dispersion(H V): Transducer: 8" Woofer,12 2.75" Midrange Unit 25mm Silk dome tweeter Power: LF:200W,M F:180W, HF:30W Rated impedance: 4 Ohms XLR for input, XLR for output Connector: Input: hree channel (MIC/COMBI/LINE) balanced input(XLR and 6.35mm jack) One channel (AUX) unbalanced input(RCA and 3.5mm jack) Input impedance(line): 20kohm balanced input, 10kohm unbalanced input... -
Page 8: 2D Dimension
S2-III TECHNICAL SPECIFICATION 2D Dimension Front view Side view Back view 250mm 400mm (9.84in) (15.75in) Meline S2-II EXT: Front view Side view Back view Top view 108.6mm (4.28in) 86.5mm (3.41in) Bottom view... - Page 9 Notes:...
- Page 10 www.beta3pro.com...
