Installation
Standard Mounting Brackets (Included)
The DLW heater comes with a pair of standard mounting brackets. These adjustable brackets allow direct ceiling or
wall mounting, and come with preset angle options of parallel, 22.5 °, or 45°.

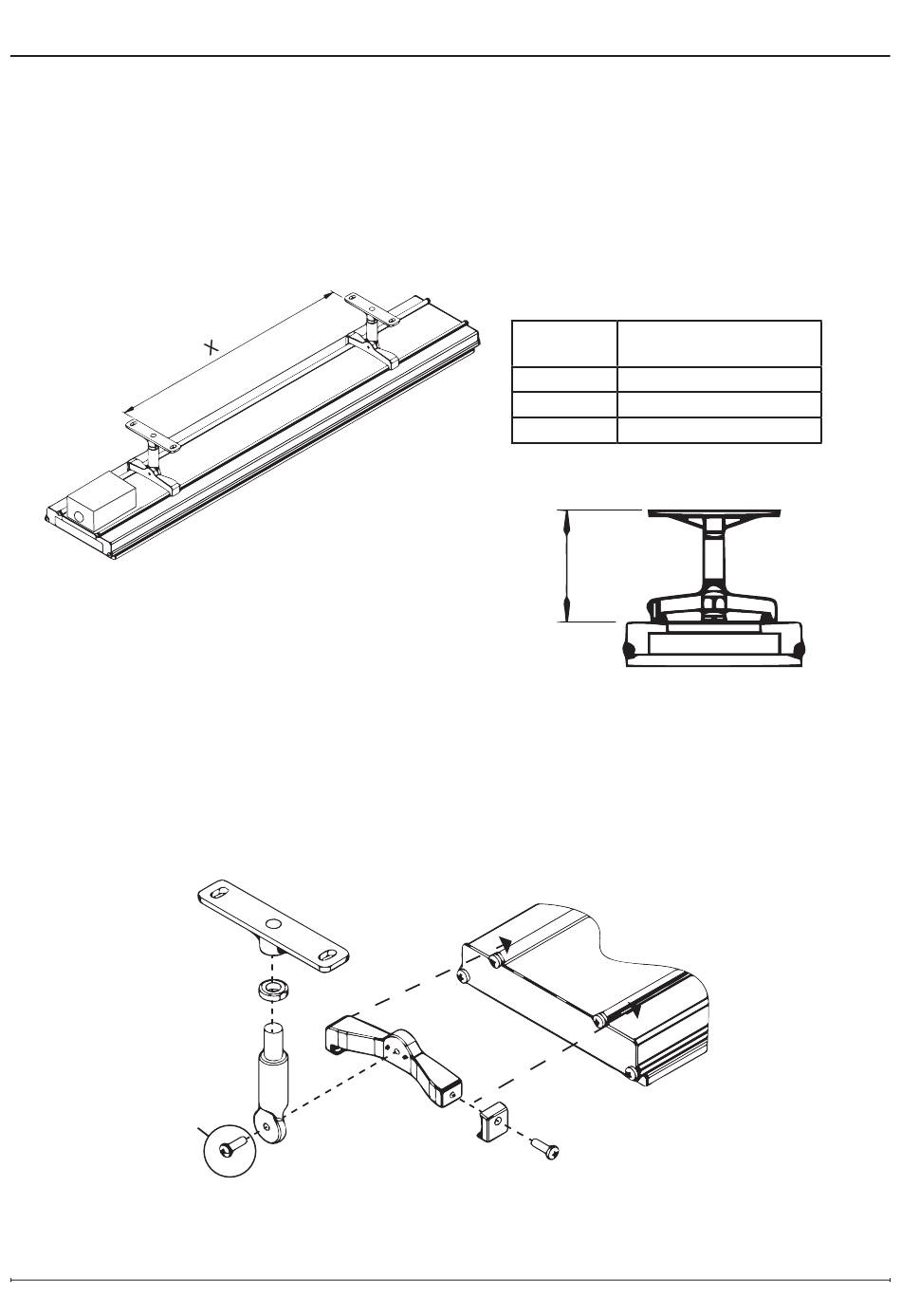

The brackets need to be mounted onto a secure frame or wall with a minimum distance between the two brackets
(Figure 9).
Figure 9
Install the bracket hardware (Figure 11). When completing the installation, ensure all screws are tight and unit is
secure.
Figure 11
M5 x 16 mm SS
Quantity: 4
12
Minimum distance
Model
between brackets ("X")
DLW1500
DLW2400
DLW3200
Figure 10
4"
100 mm
21" (550 mm)
40" (1030 mm)
58" (1470 mm)
www.dimplex.com
