IMPORTANT SAFETY INFORMATION: Always read this manual first before attempting to service this
fireplace. For your safety, always comply with all warnings and safety instructions contained in this
manual to prevent personal injury or property damage.
Dimplex North America Limited
1367 Industrial Road Cambridge ON Canada N1R 7G8
1-888-346-7539 www.dimplex.com
In keeping with our policy of continuous product development, we reserve the right to make changes without notice.
© 2011 Dimplex North America Limited

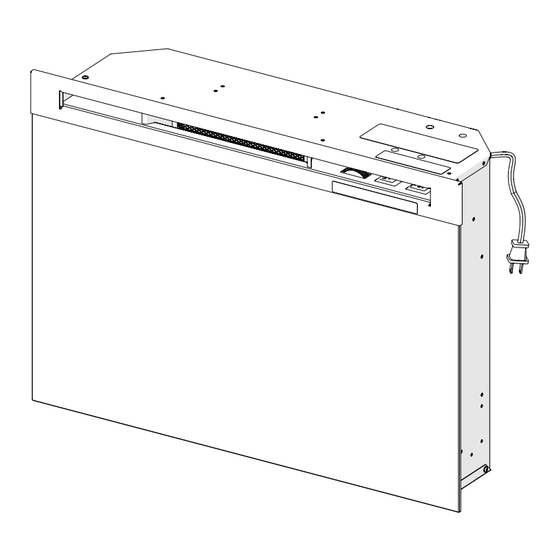

Service Manual
Model Number:
DF2500
UL Part Number
690892XXXX
REV
PCN
DATE
00
-
16-AUG-13
7400710100R00
Advertisement
Table of Contents
Related Manuals for Dimplex DF2500
Summary of Contents for Dimplex DF2500
- Page 1 Dimplex North America Limited 16-AUG-13 1367 Industrial Road Cambridge ON Canada N1R 7G8 1-888-346-7539 www.dimplex.com In keeping with our policy of continuous product development, we reserve the right to make changes without notice. © 2011 Dimplex North America Limited 7400710100R00...
-
Page 2: Table Of Contents
NOTE: Procedures and techniques that are considered important enough to emphasize. CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Operation
OPERATION Remote Operation The fireplace is supplied with an integrated On/Off remote Figure 1 control. NOTE: Ensure that the fireplace 3 position switch is set to the remote control setting, “II”. To operate, push the ON button to turn fireplace on, push the OFF button to turn the fireplace off. -
Page 4: Maintenance
Compact Fireplace Surface Cleaning Use warm water only to clean painted surfaces of the Compact Fireplace. Do not use abrasive cleaners. Servicing Except for light bulb replacement and cleaning described above, an authorized service representative should perform any other servicing. www.dimplex.com... -
Page 5: Exploded Parts Diagram
EXPLODED PARTS DIAGRAM REPLACEMENT PARTS 1. Log Set Assembly ....0440590200RP 10. Front Glass ..... 5902640100RP 2. -
Page 6: Wiring Diagram
WIRING DIAGRAM LOG LED LIGHT HARNESS www.dimplex.com... -
Page 7: 3-Position Switch Replacement
3-POSITION SWITCH REPLACEMENT HEATER ON/OFF SWITCH REPLACEMENT Tools Required: Phillips Head Screwdriver Flat Head Screwdriver Tools Required: Phillips Head Screwdriver CAUTION: If unit was operating prior to servicing allow Flat Head Screwdriver at least 10 minutes for lights, heating elements and top CAUTION: If unit was operating prior to servicing allow panel to cool off to avoid accidental burning of skin. -
Page 8: Thermostat Control Replacement
NOTE: A flat head screwdriver can be used to gently pry between the end of the connector and the switch to WARNING: Disconnect power before attempting any release the wires. maintenance to reduce the risk of electric shock or damage www.dimplex.com... -
Page 9: Power Cord Replacement
8. Remove the 4 screws that secure the top panel to the relief grommet from inside the back of the bottom panel heater assembly and push while twisting to remove. 9. Properly orient and install the new assembly and con- 9. -
Page 10: Led Driver Board Replacement
Rear (Figure 7) Front 7. Locate the LED lights along the back. Each light is Side Section Edge secured with four screws and there is a light filter that is www.dimplex.com... -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION General Circuit breaker trips or fuse Short in unit wiring. Trace wiring in unit. blows when unit is turned on Improper circuit current rating Additional appliances may exceed the current rating of the circuit breaker or fuse. Plug unit into another outlet or install unit on a dedicated 15 amp circuit. - Page 12 Grinding or excessive noise with Flicker rod hitting or rubbing against Ensure rod is straight and mounted properly in the the heater off internal components bracket, spinning freely away from other components. Replace if necessary. Defective Flicker Motor Replace Flicker Motor www.dimplex.com...
