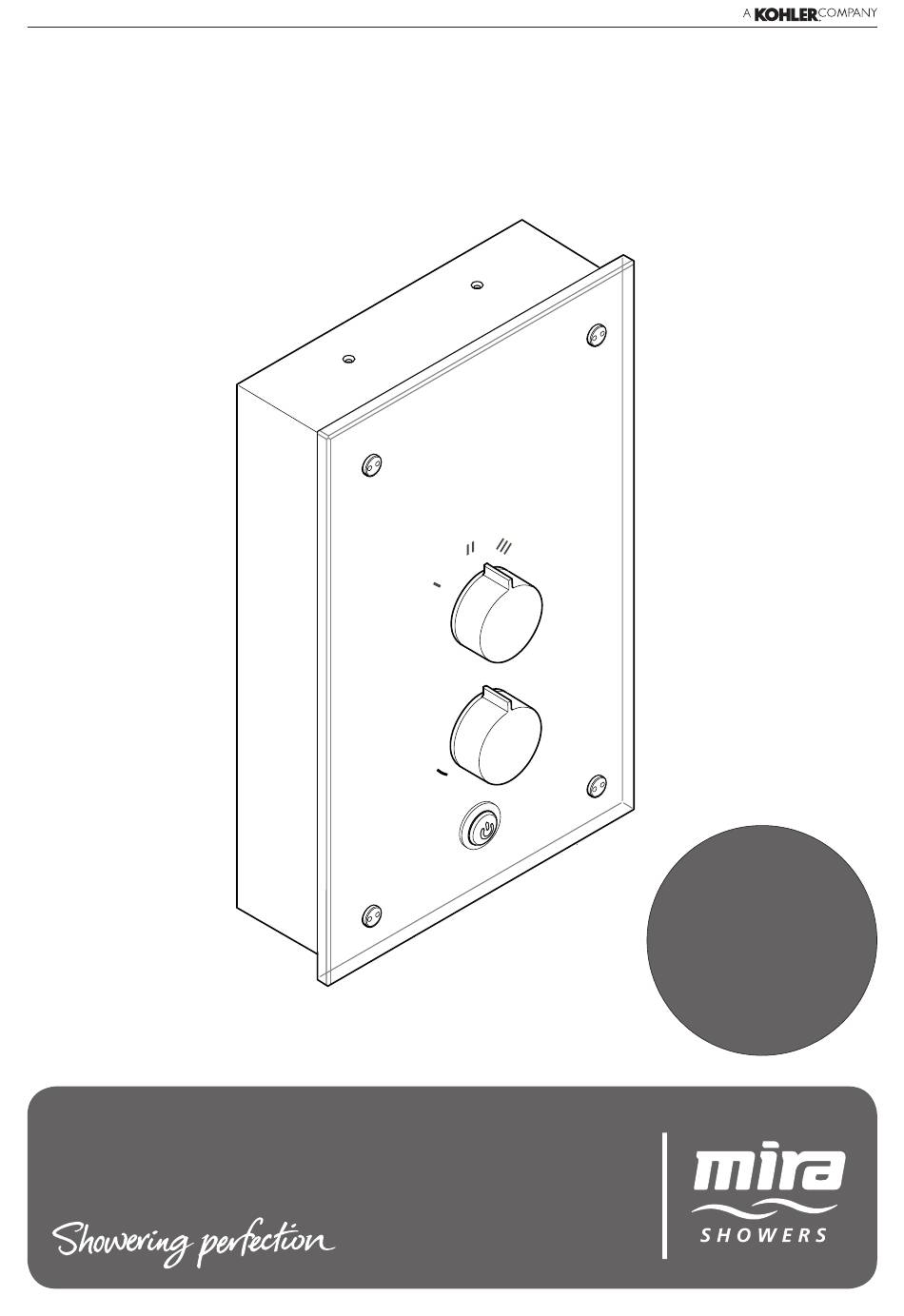

- Page 1 Mira Azora 9.8 kW For SPARES, ADVICE or REPAIRS please call us free on 0800 001 4040 (UK only) Installation and User Guide These instructions must be left with the user 1062243-W2-N...
-
Page 2: Important Safety Information
Important Safety Information WARNING - This shower can deliver scalding temperatures, cause fire, electric shock or other personal injury if not operated, or maintained in accordance with the instructions, warnings and cautions contained in this guide and on the appliance. Please read the important safety information and the operation section of this guide before using the shower. - Page 3 13. DO NOT switch the shower off and back on while standing in the water flow. 14. DO NOT change the handset model. Fit only shower heads recommended by Mira and do no fit any additional device to restrict the water outlet flow. 15. When adjusting the handset mode, point handset away from body and make sure that the water temperature has stabilised before continuing to shower.
-
Page 4: Decommissioning And Recycling
22. DO NOT connect the outlet of the shower to any tap, control valve, trigger operated handset or showerhead other than those specified for use with this shower as the outlet acts as a vent for the tank body. Only Kohler Mira recommended accessories should be used. 23. DO NOT perform any unspecified modifications, or drill or cut holes in the product other than instructed by this guide. When servicing only use genuine Kohler Mira replacement parts. -
Page 5: Pack Contents
Pack Contents Tick the appropriate boxes to familiarize yourself with the part names and to confirm that the parts are included. 1 x Mira Azora 1 x Olive 1 x Compression Nut Documentation 1 x Installation and User Guide 1 x Installation Template 1 x Guarantee and Registration Document Wiring Diagram Thermal Cutout Disc BROWN BROWN BROWN Pressure/Power... -
Page 6: Recommended Usage
Mira Azora 9.8 kW The Mira Azora comes complete with a set of Mira Energise Shower Fittings. A 9.8 kW 240 V AC (9.0 kW 230 V AC) heater with Mira Energise adjustable spray handset with four different spray actions (start, soothe, force and eco*). Supplied complete with flexible hose, clamp bracket assembly, slide bar, supports, hose retaining ring and soap dish. -
Page 7: Specifications
Specifications Variant Plumbing Azora 9.8 Minimum Dynamic Pressure 70 kPa (0.7 bar) Maximum Dynamic Pressure 500 kPa (5 bar) Maximum Static Pressure 1000 kPa (10 bar) Minimum Static Pressure 20 kPa (0.2 bar) Maximum Inlet Temperature 30°C Minimum Inlet Temperature 2°C... - Page 8 European Conformity Information The Mira Azora shower complies with the following European directives: 2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive. The Mira Azora shower is a high power appliance and is subject to conditional connection. If the main electrical supply fuse is rated less than 80 Amps, the local electricity supply company must be contacted to confirm if the electrical supply is adequate.
-
Page 9: Installation Requirements
Installation Requirements Plumbing 1. The plumbing installation must comply with all national or local water regulations and all relevant building regulations, or any particular regulation or practice specified by the local water supply company. 2. DO NOT install the product in a position in which service access is limited. 3. - Page 10 16. A water treatment device should be installed where the water hardness may exceed 200 ppm. Malfunctions caused by excessive limescale formation are not covered by this shower’s guarantee (see back page for details). 17. The installation must not cause the hose to be sharply kinked during normal use.
- Page 11 Electrical 1. The electrical installation must comply with BS 7671 (commonly referred to as the IEE Wiring Regulations) and all relevant building regulations, or any particular regulation or practice specified by the local electricity supply company. 2. Ensure that all circuit protection devices, switches and cabling is adequate for the rated current of the shower and that the rating of the electricity supply company fuse and the consumer unit are adequate for the additional demand.
-
Page 12: Installation
Installation Installation of Mira Azora Warning! Turn off the electrical and water supplies before proceeding with the installation of the shower. The electricity must be turned off at the mains and the appropriate circuit fuse removed, if applicable. Note: An installation template is supplied to help you install the shower. - Page 13 BEFORE connecting the appliance. To flush the pipework, turn on the water supply and drain a minimum of 10 litres (2 gallons) of water into a bucket or catchment area. Turn off the water supply. An installation template is supplied to help you install the Mira Azora. Put the installation template on the wall and mark through the positions of the fixing holes. Make sure that the position of these holes do not come in line with any buried cables or pipework. Make sure that sufficient electrical supply cable is available for...
- Page 14 L = BROWN E = GREEN/YELLOW Firmly connect the conductors. Do not N = BLUE exert strain on the terminal block. Cover Retaining Screw Refit the cover, making sure it is correctly located. Do not overtighten screws. Caution! Handle the glass cover Caution! Handle the glass cover assembly with care.
- Page 15 Holes For Cover Retaining Screws Terminal Fixing Screw Block Heater Tank Inlet Connector Assembly Cold Water Supply Pipe (Bottom Entry) 1062243-W2-N...
- Page 16 Commissioning Before carrying out the commissioning procedure install the Shower Fittings, refer to the Shower Fittings Installation and User Guide. If you are unsure how an electric shower works, please read through the section “User Instructions” before continuing. Electrical supply is turned Turn control to full cold.
- Page 17 Note: A slight hissing sound may be heard from the Mira Escape during operation. High mains water pressure and high shower temperatures will affect the tone. This is quite normal in use.
- Page 18 User Instructions How Your Electric Shower Works Heated water is produced by adjusting the flow of cold water passed through a heater tank. The shower has three heater settings. The warmer the shower, the lower the flow rate and vice versa. 1062243-W2-N...
- Page 19 Thermostatic (Temperature-Stable) The shower's top priority is to keep the desired water temperature constant. Electric showers with thermostatic control are able to keep a stable temperature across the range from hot to cold, whilst also dealing with fluctuations in electrical and water supplies. As a result, there is a temperature limit the shower cannot go beyond. For safety, this temperature is factory set and cannot be adjusted to make the shower hotter or colder.
- Page 20 Using your Shower Read the section “User Safety Information” first. Switch on electrical supply. Press the ‘Start/Stop’ button. Set to desired position. Check water temperature before entering shower. Allow 10 - 15 seconds for any temperature adjustments to reach the handset. P r e s s S TO P b u t t o n . Isolate power.
- Page 21 The Effect of Seasonal Changes * * * For a cold shower select I. For a summer warm shower select II. For a winter warm shower select III. During extremes of mains water supply temperature, adjust heater setting to obtain a better showering temperature.
-
Page 22: Fault Diagnosis
Fault Diagnosis The trouble shooting information tabled below gives details on probable causes and remedies should difficulties be encountered whilst the shower is in operation. Warning! There are no user serviceable components beneath the cover of the appliance. Only a competent tradesperson should remove the front cover! Symptom Start/ Heater Probable Cause Possible Remedy Stop Setting... - Page 23 Symptom Start/ Heater Probable Cause Possible Remedy Stop Setting Light I / II / III H a n d s e t Insufficient wa ter sup p l y The minimum static pressure dripping pressure for shut off. to ensure shut off and prevent dripping is 0.2 bar. Note! If other appliances are operating, static pressure may drop below 0.2 bar.
- Page 24 Symptom Start/ Heater Probable Cause Possible Remedy Stop Setting Light I / II / III No change in I n s u ff i c i e n t m a i n s w a t e r Contact local water company. t e m p e r a t u r e pressure.
-
Page 25: User Maintenance
User Maintenance DO NOT use the showerhead to There are no user serviceable parts inside the shower. Only clean the shower. qualified, competent personnel If the shower is not to be used for should remove the front cover, a long period, the electrical supply mains connections are exposed and water supply to the shower when the cover is removed. - Page 26 Servicing Warning! There are no user serviceable parts inside the shower. Servicing of the shower must only be carried out by qualified, competent personnel following the instructions provided in this guide and those provided with any spare part. Before replacing any parts, ensure that the underlying cause of the malfunction has been resolved.
-
Page 27: Spare Parts
Spare Parts 416.38 Clamp Bracket (Inlet) 1634.026 Screw Pack - components 416.41 Thermal Switch identified ‘A’ 416.48 Latching Switch 1623.009 Cover Assembly - Frosted 416.51 Solenoid Coil Glass 1563.519 Terminal Block Assembly 1634.118 Cover Assembly - Blue 1563.845 Thermostatic Valve/Heater Tank Glass 9.8 kW 240 V AC (includes 1634.119... -
Page 28: Customer Support
● Servicing must only be undertaken by us or our Spares and Accessories appointed representative. We hold the largest stocks of genuine Mira Note! If a service visit is required the product must spares and accessories.Contact us for a be fully installed and connected to services. - Page 29 Electric Showers Digital Showers Mixer Showers Power Showers Smart Showers Shower Towers From Top Shower Brands Mira Showers Aqualisa Showers Triton Showers Gainsborough Showers Shower Pumps can upgrade your showering experience even more Stuart Turner Shower Pumps Salamander Shower Pumps...
