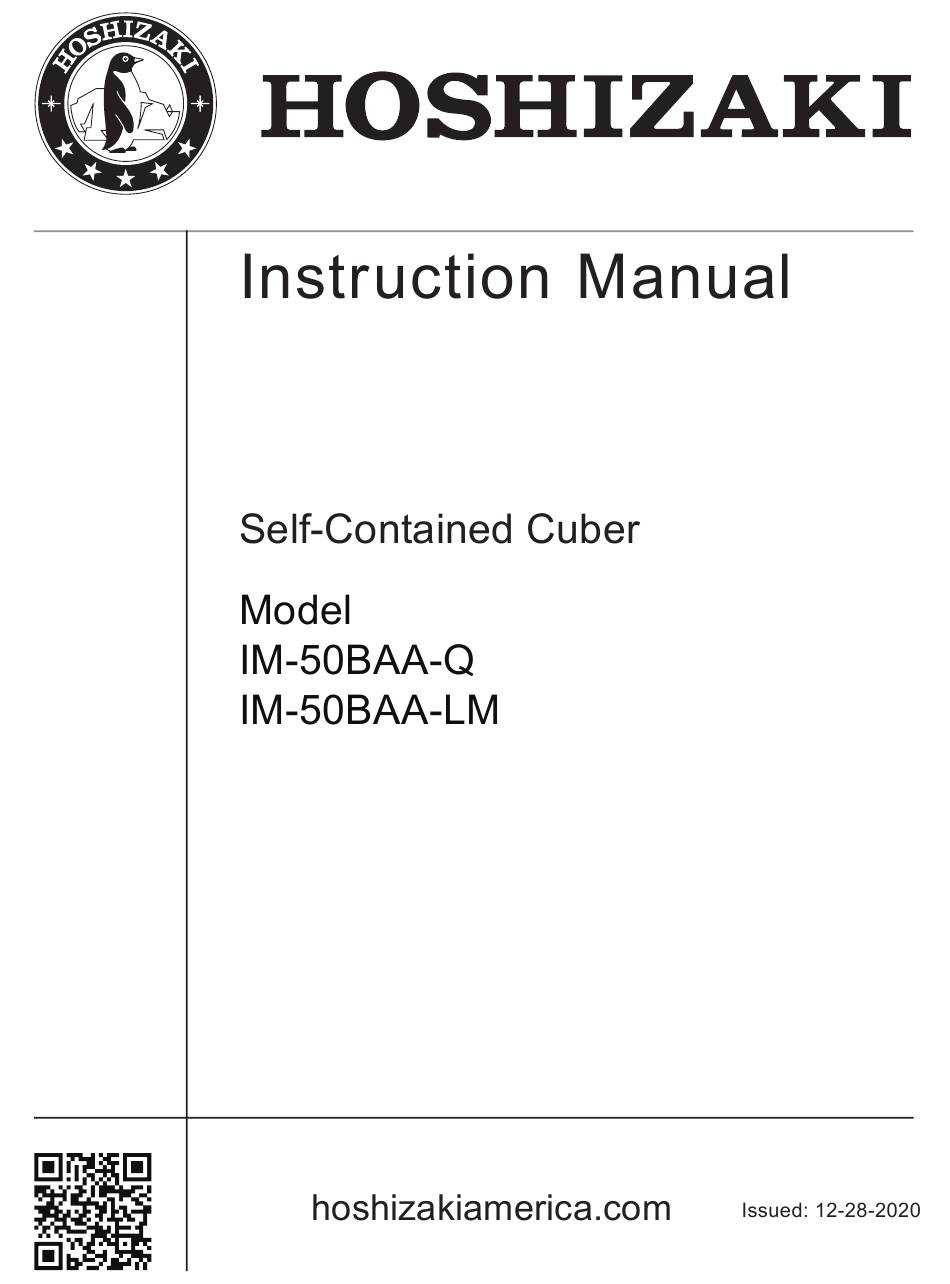

Hoshizaki IM-50BAA-Q Instruction Manual
Self-contained cuber
Hide thumbs
Also See for IM-50BAA-Q:
- Service manual (52 pages) ,
- Service manual (65 pages) ,
- Service manual (65 pages)
Related Manuals for Hoshizaki IM-50BAA-Q
Summary of Contents for Hoshizaki IM-50BAA-Q
- Page 3 WARNING...
- Page 4 IMPORTANT CONTENTS PAGE...
- Page 5 Important Safety Information WARNING Indicates a hazardous situation which could result in death or serious injury. NOTICE Indicates a situation which could result in damage to the appliance or property. IMPORTANT Indicates important information about the installation, use, and care of the appliance. WARNING precautions including the following: •...
- Page 6 WARNING, continued NOTICE...
- Page 7 A. Electrical and Refrigerant Data...
- Page 8 B. Dimensions/Connections IM-50BAA-Q...
- Page 9 IM-50BAA-LM...
- Page 10 II. Installation and Operating Instructions WARNING • CHOKING HAZARD A. Location NOTICE Left Side and Right Side Rear...
- Page 11 B. Checks Before Installation NOTICE C. How to Remove Panels See Fig. 1...
- Page 12 Fig. 1...
- Page 13 D. Setup NOTICE Fig. 2 Fig. 3...
- Page 14 E. Electrical Connection WARNING • • THE APPLIANCE MUST BE GROUNDED:...
- Page 15 F. Water Supply and Drain Connections - See Fig. 4 WARNING NOTICE...
- Page 16 1. Icemaker Icemaker / Ice Icemaker Water Minimum Icemaker Minimum Icemaker Storage Bin Supply Inlet Water Supply Line Size Drain Line Size Drain Outlet 2-inch (5-cm) air gap Floor Drain Fig. 4...
-
Page 17: Choking Hazard
G. Final Checklist WARNING CHOKING HAZARD Left Side and Right Side Rear... - Page 18 H. Startup WARNING NOTICE WARNING! To reduce the risk of electric shock, do not touch the control switch or plug with damp hands.
- Page 19 I. Display 1. Normal Operation 2. Error Code...
- Page 20 III. Maintenance WARNING • CHOKING HAZARD: A. Maintenance Schedule Maintenance Schedule Frequency Area Task...
- Page 21 B. Cleaning and Sanitizing Instructions WARNING NOTICE 1. Before Cleaning Procedure Fig. 5...
- Page 22 Fig. 6 Fig. 6-1 2. Cleaning Procedure Fig. 6-2...
- Page 23 3. Before Sanitizing Procedure...
- Page 24 4. Sanitizing Procedure - Following Cleaning Procedure 5. After Sanitizing Procedure...
- Page 25 IV. Preparing the Appliance for Periods of Non-Use NOTICE 1. Remove the water from the icemaker water supply line:...
- Page 26 2. Drain the water tank: Fig. 7 V. Disposal IMPORTANT...
