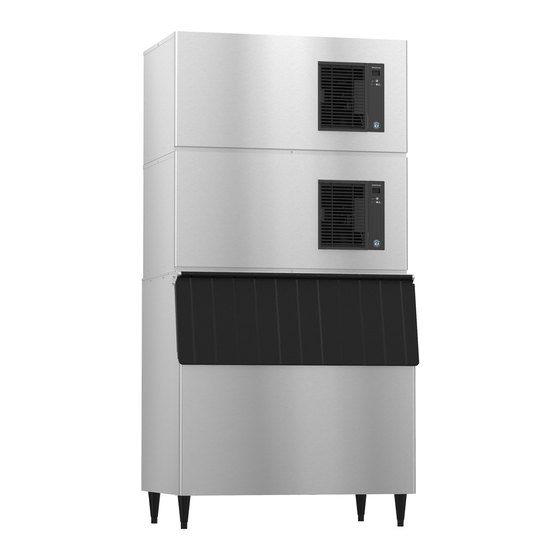

Hoshizaki IM-500SAA Instruction Manual

Modular cuber
Hide thumbs Also See for IM-500SAA:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Hoshizaki
Hoshizaki America, Inc.
Modular Cuber
Model
IM-500SAA
INSTRUCTION MANUAL
"A Superior Degree
of Reliability"
www.hoshizaki.com
Issued: 8-24-2012

Advertisement

Table of Contents
loading

Related Manuals for Hoshizaki IM-500SAA

Summary of Contents for Hoshizaki IM-500SAA

  • Page 1 Hoshizaki Hoshizaki America, Inc. Modular Cuber Model IM-500SAA INSTRUCTION MANUAL “A Superior Degree of Reliability” www.hoshizaki.com Issued: 8-24-2012...
  • Page 2 WARNING Only qualifi ed service technicians should install and service the appliance. To obtain the name and phone number of your local Hoshizaki Certifi ed Service Representative, visit www.hoshizaki.com. No installation or service should be undertaken until the technician has thoroughly read this Instruction Manual.

  • Page 3: Table Of Contents

    IMPORTANT This manual should be read carefully before the product is installed and operated. Only qualified service technicians should install, service, and maintain the product. Read the warnings contained in this booklet carefully as they give important information regarding safety. Please retain this booklet for any further reference that may be necessary.

  • Page 4: Important Safety Information

    Important Safety Information Throughout this manual, notices appear to bring your attention to situations which could result in death, serious injury, or damage to the unit. WARNING Indicates a hazardous situation which could result in death or serious injury. NOTICE Indicates a situation which could result in damage to the unit or property.
  • Page 5 • This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...

  • Page 6: Specifi Cations

    I. Specifi cations A. Electrical Data For certifi cation marks, see the nameplate on the right side panel. See the nameplate for electrical and refrigerant specifi cations. This nameplate is located on the right side panel. Since this nameplate is located on the right side panel of the icemaker, it cannot be read when the side of the icemaker is against a wall or against another piece of kitchen equipment.

  • Page 7: Dimensions/Connections

    B. Dimensions/Connections Unit: mm [inches] The storage bin opening must match the bottom opening as in the illustration.

  • Page 8: Installation And Operating Instructions

    • See the nameplate on the right side panel, and check that your voltage supplied corresponds with the voltage specifi ed on the nameplate. • This icemaker can be installed on a storage bin 44” wide or wider. The recommended storage bin is HOSHIZAKI STORAGE BIN, Model B-700 series.

  • Page 9: How To Remove Panels

    B. How to Remove Panels - See Fig. 1 • Front Panel: Loosen the screw. Lift up and pull towards you. • Top Panel: Remove the screws and lift up. • Left Side Panel: Slide forward slightly, and then lift off. •...

  • Page 10: Setup

    For best operating results: • Icemaker should not be located next to ovens, grills, or other high heat producing equipment. • Avoid choosing a site where no dripping is allowed. • Allow 6” (15 cm) clearance at rear, left side, and top and 12” (30 cm) clearance at right side for proper air circulation and ease of maintenance and/or service should they be required.

  • Page 11: Electrical Connection

    10) Level the icemaker and storage bin in both the left-to-right and front-to-rear directions. Adjust the storage bin legs to make the icemaker level. 11) Replace the panels in their correct positions. E. Electrical Connection WARNING 1. Electrical connection must be made in accordance with the instructions on the “WARNING“...

  • Page 12: Water Supply And Drain Connections

    • A plumbing permit and services of a licensed plumber may be required in some areas. • External filters, strainers, or softeners may be required depending on water quality. Contact your local Hoshizaki Certifi ed Service Representative for recommendations. • Water supply inlet is 1/2” female pipe thread (FPT).

  • Page 13: Final Checklist

    Icemaker Water Supply Inlet 1/2” FPT Icemaker Water Supply Line Shut-Off Valve Icemaker Drain Outlet 3/4” FPT Icemaker Water Supply Line Drain Valve Separate piping to approved drain. Leave a 2-inch (5 cm) Bin Drain Outlet vertical air gap between the 3/4”...

  • Page 14: Startup

    7) Has the power supply voltage been checked or tested against the nameplate rating? Has a proper ground been installed to the icemaker? 8) Are the water supply line shut-off valve and drain valve installed? Has the water supply pressure been checked to ensure a minimum of 10 PSIG and a maximum of 113 PSIG? 9) Are the compressor hold-down bolts snug? Have the refrigerant lines been checked to make sure they do not rub or touch other lines or surfaces?

  • Page 15: Display

    Make sure that none have fallen into the storage bin. A. Cleaning HOSHIZAKI recommends cleaning this unit at least once a year. More frequent cleaning, however, may be required in some existing water conditions.

  • Page 16: Cleaning Procedure

    “WASH” position for extended periods of time when the water tank is empty . 1. Cleaning Procedure 1) Dilute approximately 7.2 fl. oz. (214 ml) of recommended cleaner Hoshizaki “Scale Away” with 0.8 gal. (3.0 lit.) of water. 2) Turn off the power supply.

  • Page 17: Sanitizing Procedure

    11) Move the control switch to the “WASH“ position. 12) Slowly pour the cleaning solution over the top of the evaporator and into the water tank. Do not splash or spill the solution onto other parts. 13) Replace the front panel and top panel in their correct positions. 14) Turn on the power supply to start the washing process.

  • Page 18: Maintenance

    9) Turn on the power supply to start the sanitizing process. 10) Turn off the power supply after 15 minutes. 11) Open the icemaker water supply line shut-off valve. See Fig. 4. 12) Remove the front panel. 13) Move the control switch to the “ICE“ position. 14) Replace the front panel.

  • Page 19: Stainless Steel Exterior

    1. Stainless Steel Exterior To prevent corrosion, wipe the exterior occasionally with a clean, soft cloth. Use a damp cloth containing a neutral cleaner to wipe off oil or dirt build up. 2. Storage Bin and Scoop • Wash your hands before removing ice. Use the plastic scoop provided (bin accessory). •...

  • Page 20: Preparing The Icemaker For Long Storage

    C. Preparing the Icemaker for Long Storage NOTICE 1. When shutting off the icemaker for an extended time, drain out all water from the water line and remove the ice from the storage bin. The storage bin should be cleaned and dried. Drain the icemaker to prevent damage to the water supply line at sub-freezing temperatures, using air or carbon dioxide.
  • Page 21 4) Close the icemaker water supply line. Reset Button 5) Turn on the power supply. 6) Press the reset button. See Fig. 7. The water tank will start to open. Note: This procedure is necessary to protect the icemaker from freezing up at sub- freezing temperatures.
  • Page 22 HOSHIZAKI AMERICA, INC. 618 Hwy. 74 S., Peachtree City, GA 30269 USA TEL (770) 487-2331 FAX (770) 487-3360 www.hoshizaki.com L1M029102...
