Summary of Contents for Chauvet LED-EQ

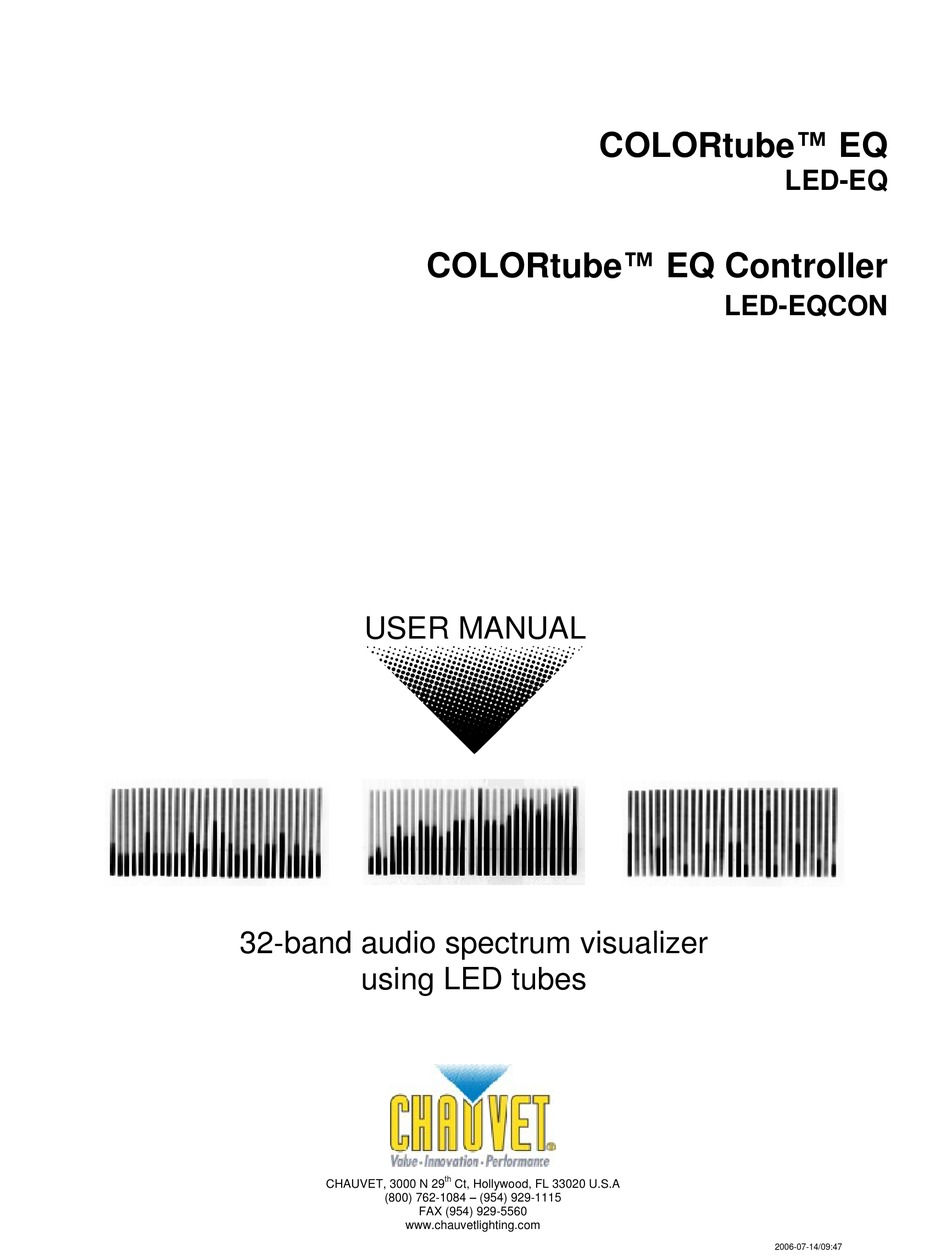

- Page 1 COLORtube™ EQ LED-EQ COLORtube™ EQ Controller LED-EQCON USER MANUAL 32-band audio spectrum visualizer using LED tubes CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-07-14/09:47...
-
Page 2: Table Of Contents
Table of Content BEFORE YOU BEGIN... 3 ... 3 HAT IS INCLUDED ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 AFETY NSTRUCTIONS INTRODUCTION ... 4 ... 4 EATURES ... 4 RODUCT VERVIEW SETUP ... 5 ... 5 OWER ... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. COLORtube™ EQ User Manual Always disconnect from power source before servicing or replacing lamp or fuse and be sure to replace with same lamp source. -
Page 4: Introduction
NTRODUCTION Features FEATURES 32-band LED-tube audio spectrum visualizer 144 LEDs total - Red (48), Green (48) and Blue (48) Ultra bright LEDs 16 patterns, chases, color flows with variations plus blackout Low power consumption Up to 100,000-hour LED life span ... -
Page 5: Setup
ETUP Power The COLORtube™ EQ can operate in voltages between 100V~240V 50Hz or 60Hz. It is equipped with an auto sensing transformer. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. -
Page 6: Operating Instructions
PERATING NSTRUCTIONS The COLORtube™ EQ system is made up of up to 32 LED tubes whose primary function is to display a 32-band audio spectrum visualizer. The COLORtube™ EQ tube will operate in both Stand-Alone and Master-Slave operation. Connection Diagram Power Standard addressing method, 32 tube count... - Page 7 COLORtube™ EQ User Manual Black Black Green Black Pink Black Yellow Black Green/Red Black Cyan/Red Black Blue/Red Black Rainbow Chase Red/Green/Cyan/ Black Blue Chase Black Dot Chase Change colors Color Chase Change colors Automatic Introduction 2006-07-14/09:47...
-
Page 8: Fixture Addressing
Fixture Addressing 1. Dipswitch 1 is reserved for setting the type of control mode on each tube. 2. Set dipswitch 1 to ON for SLAVE operation. 3. Set dipswitch 1 to OFF for MASTER or stand-alone fixture operation. Fixture Address COLORtube™... -
Page 9: Colortube™ Eq Controller
COLORtube™ EQ Controller Power input Sound sensitivity control Controller options UNCTION ESCRIPTION Mode Disp User selectable built in programs in the controller All built in programs will cycle through at an interval time entered by the user Cycle Motion between 1 and 255 minutes Setup To operate with controller all tubes must be set to the SLAVE mode, (address dipswitch # 1 set to the ON position) and each fixture should be addressed in numerical order for best presentation. -
Page 10: Controller Programs (Chart)
Controller programs (chart) ROGRAM ISPLAY Red & Green Green & White Blue & Red White & Red Green Purple Yellow Green & Dot Cyan & Dot Blue & Dot Synch Colors Synch Dot Synch Cross Refur Colors Auto Motion Black COLORtube™... -
Page 11: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.
