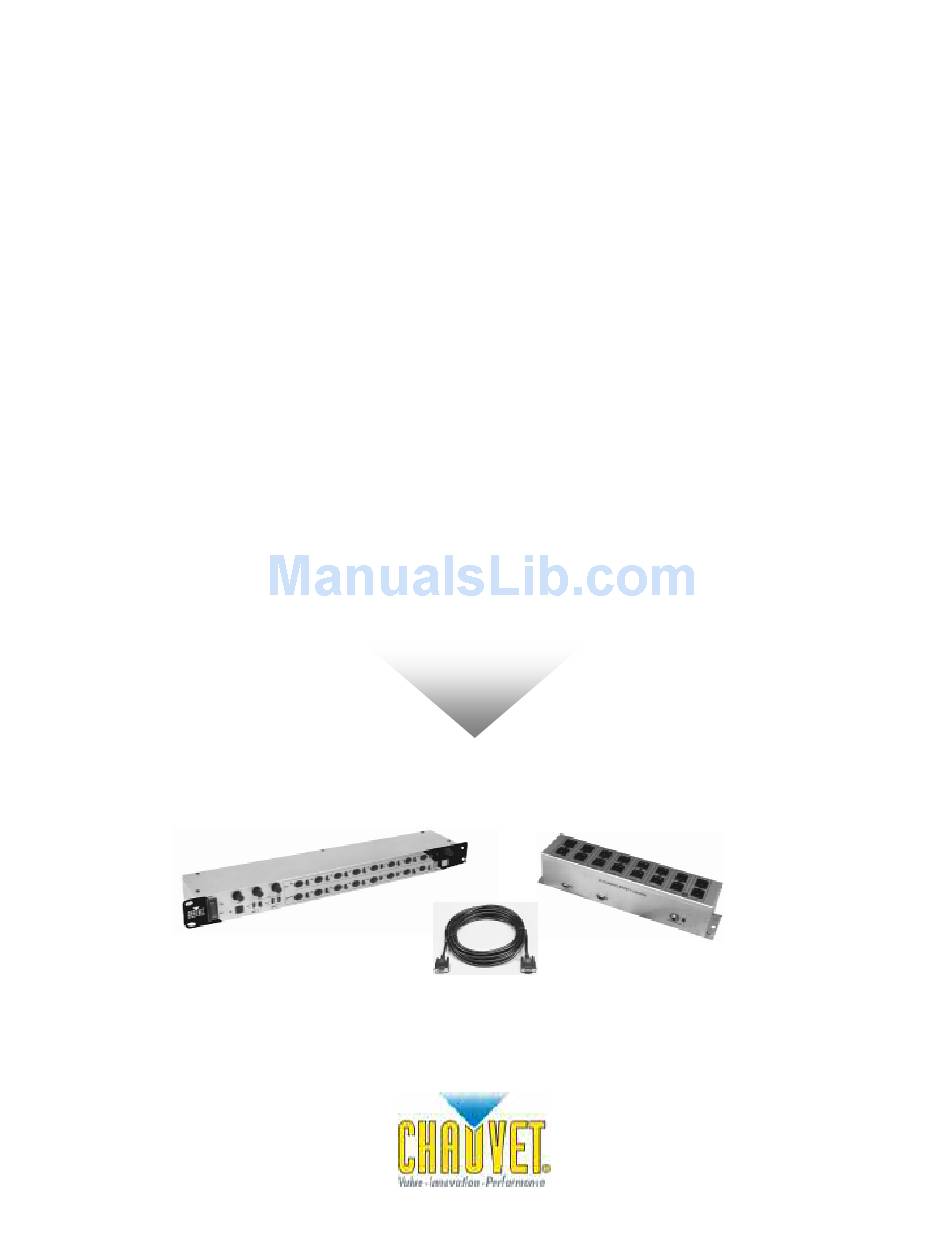

- Page 1 LC-2000 Director™ Lighting Controller USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com...
-
Page 2: Table Of Contents
ETUP ... 7 ONTROLLER VERVIEW Manual Operations... 7 Running in Chase... 7 Extras... 7 APPENDIX ... 8 ... 8 AINTENANCE ... 8 ETURNS ROCEDURE ... 8 LAIMS ... 9 ENERAL ROUBLESHOOTING ... 10 ECHNICAL PECIFICATIONS LC-2000 Users Manual Revision: 2005-01-31/18:26... -
Page 3: Before You Begin
EFORE EGIN What is included 1 x Director Controller (LC-2000) 1 x Director Relay Pack (LCR-2005) 1 x 9-pin cable (SF-EXCB) Warranty Card & Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. -
Page 4: Introduction
NTRODUCTION The Director™ does the job of two (8-channel) effects lighting controllers in one slim package. This controller-relay system has two separate (4-channel) chase zones which the user can modify. Each zone can be switched from audio-activation to any of the two preset timed chases with speed adjustment rotary knobs. -
Page 5: Product Overview
(Ch 5~8) & (13~16) (2) 4ch Zones Can be operated Relay Pack independently Connections Fogger Remote Relay A and Connect to a CHAUVET Relay B compatible fogger’s remote output Signal Output SF-EXCB Connect up to two 9-pin linking cable additional relay packs... -
Page 6: Operating Instructions
RELAY B Panel Controls channel outputs (9~16) LC-2000 Users Manual Notes There are two outputs on the controller, (1~8) is for Relay A and (9~16) for Relay B. Two additional relay packs can be daisy chained on each controller output for a total of 6 relay packs. -
Page 7: Controller Overview
The Director™ comes with a simple FOG button and a FOG READY status indicator. Simply connect from the remote fogger output on the controller into a compatible CHAUVET fogger. The fogger status indicator will light once the fogger has warmed up and is ready to produce fog. -
Page 8: Appendix
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 9: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode LC-2000 Users Manual... -
Page 10: Technical Specifications
Fuse Protection... Circuit Breaker (15 Amps) CONTROL Audio input...RCA connector Strobe remote output... ¼” mono phone plug (TRS) Tip Ring Sleeve Fogger remote output... CHAUVET compatible using IEC 60320 C-14 connector ORDERING INFORMATION Director™... LC-2000 Director™ Relay Pack ...LCR-2005 9-pin cable ... SF-EXCB Fuse 15A ...
