Dimensions, Installation and Wiring
5.2

Installation

5.2.1

Installation Notes

5.2.2

Mounting cut-out

Bosch Rexroth AG R911323862_Edition 07
IndraControl VDP 16.3, VDP 40.3, VDP 60.3 Operator Dis‐

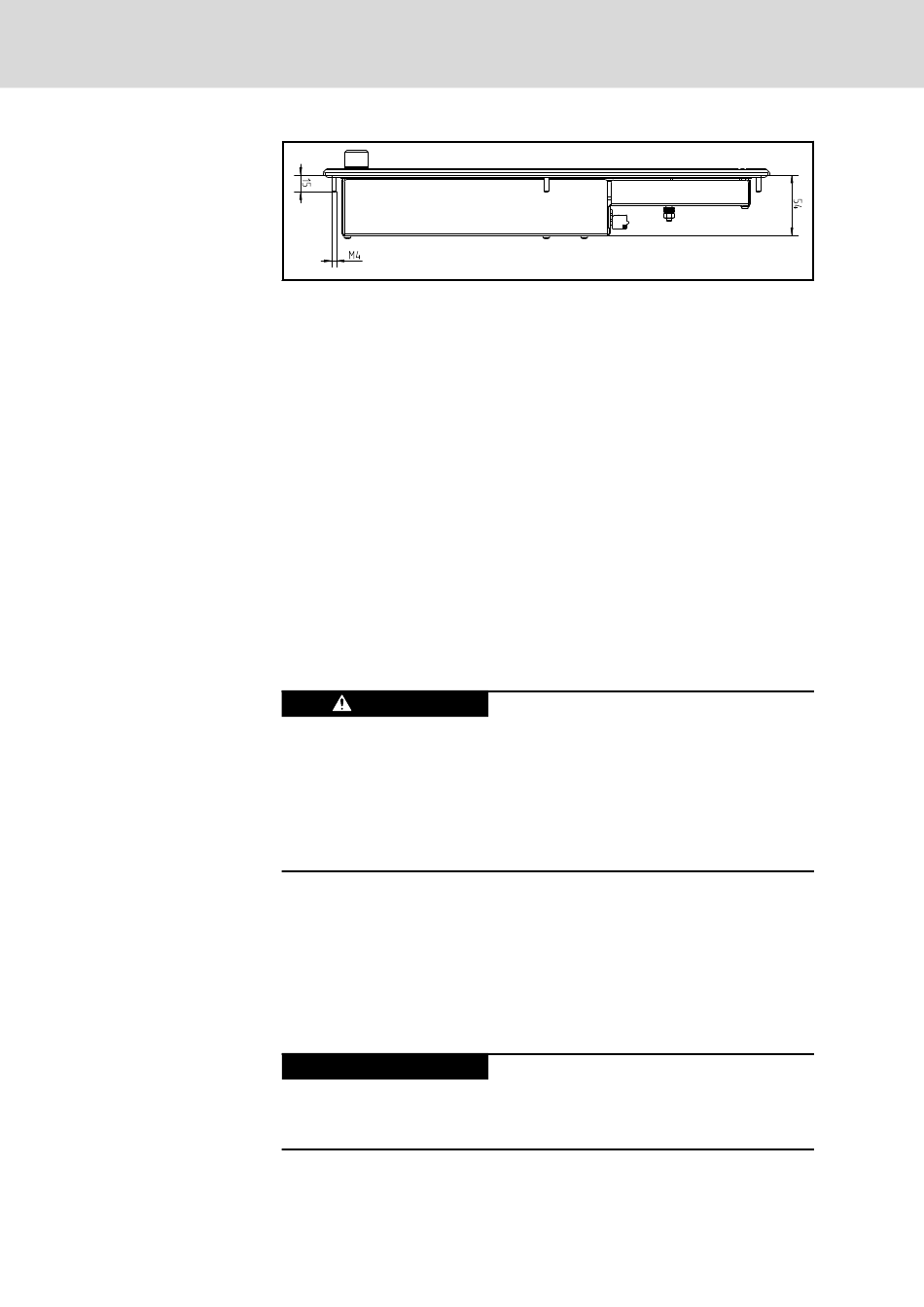

Fig. 5-15: VDP 60.3: left view
● When mounting the display, ensure an ergonomic operation.
Additionally, ensure that all moving machine components can be seen
by the operator at any time!
● Avoid mounting locations exposed to direct UV or sunlight, as the
screen readability is reduced and additional heat development can
occur.
● Provide a space of 50 mm on all sides for sufficient cooling and cable
routing.
● The LED displays on the operating panel must not be covered.
● Lay all connecting cables in loops and use strain reliefs for all cables.
● Keep the maximum distance possible from interference sources.
Mount the display as follows:
WARNING
The mounting surface of the operator display must be:
● free of impurities and
● has to be provided with sufficient mechanical strength and flatness
These criteria influence the required IP degree of protection to a great extent.
Further required measures have to be taken depending on the mounting
location, e. g. the stabilization of the mounting frame.
1. Create a mounting cut-out with 8 holes, diameter 5 mm, according to the
illustrations "Mounting dimensions" on the following pages.
2. Remove the paper strip from the seal on the rear side of the front panel.
3. Insert the display from the front into the cut-out. The mounting bolts M4
are inserted into the drilled holes.
4. Fasten the display by screwing the nuts at the rear side of the mounting
bolts.
NOTICE
Fasten the screws with the respective mounting torques specified in the
following table.
Loss of degree of protection IP 65!
Damage to the mechanics caused by wrong
tightening torque.
play
