Async-232 Module Submenus
Session Status
FrmErrs (Framing Errors)
Read security: 5
Displays the number of framing errors detected from the DTE.
PPP CRC Errors
Read security: 5
Displays the number of PPP frames with invalid CRC values received from the
DTE in ISDN Async-to-Sync PPP mode. (To display this menu, position the cursor
over I/O Statistics. Then move the cursor to the port for which you want statis-
tics, and press Enter.)
Rst Stats (Reset Statistics)
Write security: 5; Read security: 5
Resets all the statistics for a specific port.
Session Status
Session Status fields display the status of any dial-in or dial-out call for all ports
of the Async-232 Module (see Figure 3-6). Descriptions of the available fields fol-
low.
Mode
Read security: 5
This read-only field displays the current mode of the call by displaying one of the
thirteen following messages:
61200182L1-1

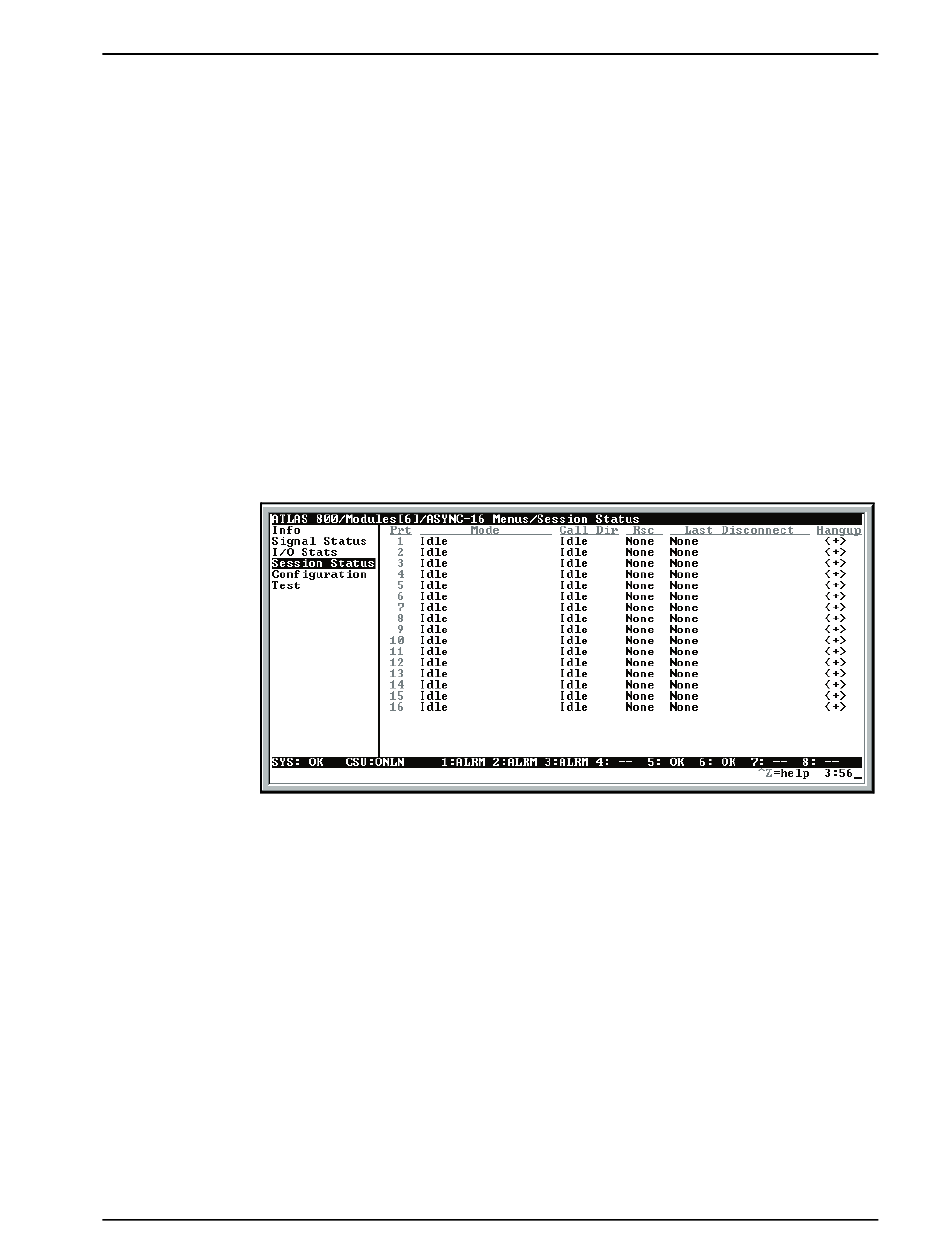

Figure 3-6. Session Statistics Panel
Unassigned
The port has not yet been assigned in the Dial Plan configuration for the sys-
tem unit. It is not available for either dial-in or dial-out calls. (See Appendix
A, Dial Plan Interface Configuration, for information on how to assign an
Async-232 module in the Dial Plan.)
Idle
The port has been assigned in the Dial Plan and is available for dial-in or dial-
out calls depending on the configuration of the port. A call is not active on
the port.
Async-232 Module User Manual
Chapter 3. Operation
3-7
