Teac MC-DX220iDAB Service Manual
  1. Manuals
  2. Brands
  3. Teac Manuals
  4. Stereo System
  5. MC-DX220iDAB
  6. Service manual
Teac MC-DX220iDAB Service Manual

Teac MC-DX220iDAB Service Manual

Hide thumbs Also See for MC-DX220iDAB:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

loading

Related Manuals for Teac MC-DX220iDAB

Summary of Contents for Teac MC-DX220iDAB

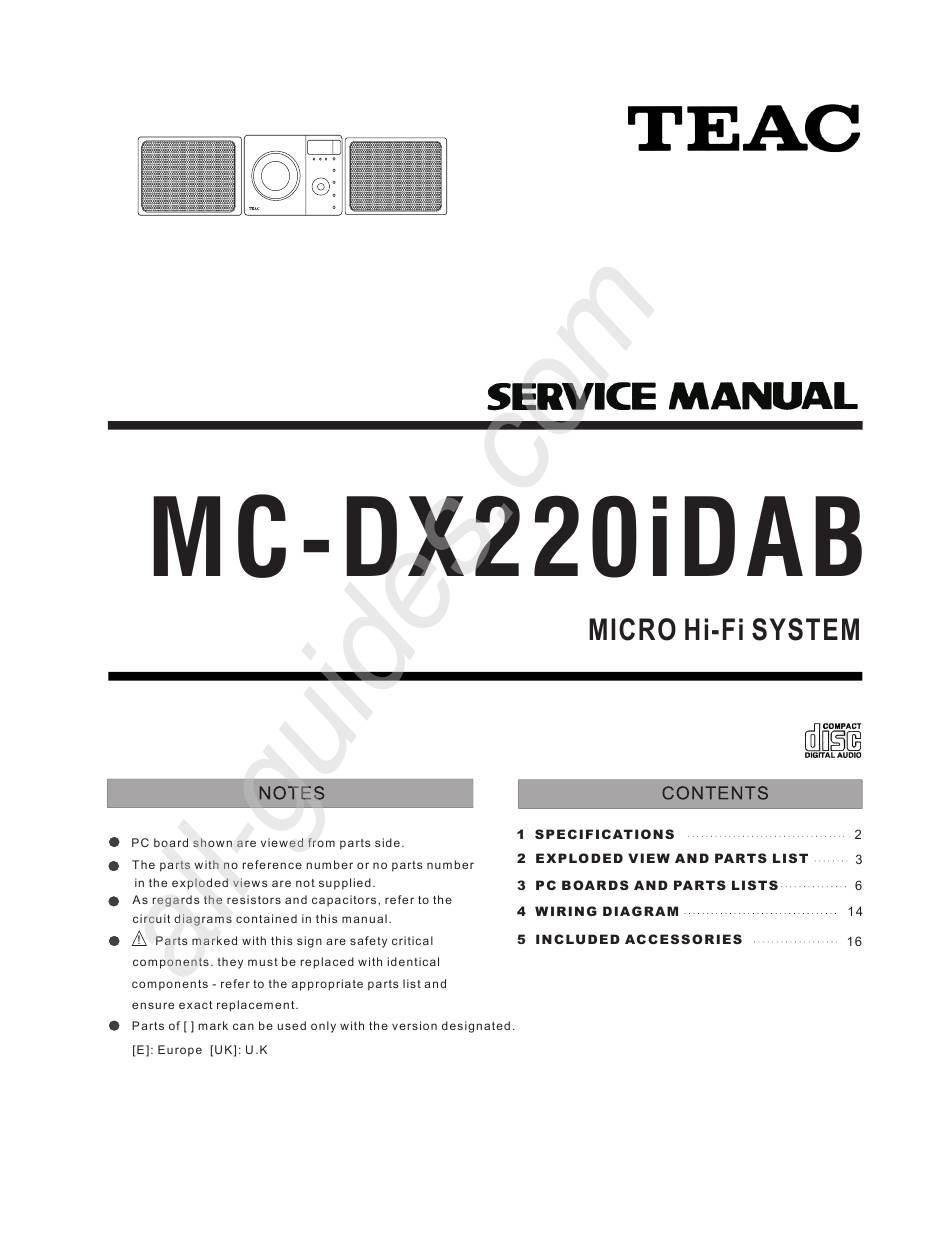

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com...

  • Page 3: Exploded Views And Parts List

    All manuals and user guides at all-guides.com MC-DX220iDAB 2. EXPLODED VIEWS AND PARTS LIST...
  • Page 4 All manuals and user guides at all-guides.com...
  • Page 5 All manuals and user guides at all-guides.com...
  • Page 6 All manuals and user guides at all-guides.com...
  • Page 7 All manuals and user guides at all-guides.com MC-DX220iDAB MAIN PCB RADIO PCB...
  • Page 8 All manuals and user guides at all-guides.com...
  • Page 9 All manuals and user guides at all-guides.com MC-DX220iDAB SUBWOOFER POWER PCB IPOD SOCKET PCB RCA/D-S JACK PCB...
  • Page 10 All manuals and user guides at all-guides.com...

  • Page 11: Display Pcb

    All manuals and user guides at all-guides.com MC-DX220iDAB DISPLAY PCB C855 C856 IC805 Q803 9014 R862 XT801 R800 D801 C817 C814 ZD802 HEADPHONE PCB OPEN SW PCB LED PCB CLOSE SW PCB...
  • Page 12 All manuals and user guides at all-guides.com...

  • Page 13: Standby Pcb

    All manuals and user guides at all-guides.com MC-DX220iDAB CD PCB X801 IC803 C860 STANDBY PCB SENSOR PCB...

  • Page 14: Wiring Diagram

    All manuals and user guides at all-guides.com MC-DX220iDAB 4 WIRING DIAGRAM TO DISPLAY PCB MAIN PCB CN501 CN511 TO CD PCB CN803 CN508 CN502 TO HP PCB CN501A TO HP PCB CN507 CN503 TO IPOD PCB TO RADIO PCB CN810...
  • Page 15 All manuals and user guides at all-guides.com MC-DX220iDAB TO DISPLAY PCB CD PCB TO CLOSE PCB CN806 CN810 TO SENSOR PCB CN11 CN805 TO CD MECHAN. CN801 TO CD PICK UP TO OPEN PCB CN802 TO CD MECHAN. TO CD MOTOR...
  • Page 16 All manuals and user guides at all-guides.com...
  • Page 17 All manuals and user guides at all-guides.com...
  • Page 18 All manuals and user guides at all-guides.com MAIN PCB 3904 3904 3904 KSD882 L406 10UH 3904 L404 3904 10UH Q701 9015C KA7808E MC-DX220iDAB Micro Hi-Fi System...
  • Page 19 All manuals and user guides at all-guides.com RADIO PCB IC813 47uH 47uH MC-DX220iDAB Micro Hi-Fi System...
  • Page 20 All manuals and user guides at all-guides.com SUB-WOOFER POWER PCB 9014C D401-D404 1N5401 D401 FUSE2 1N4148 3.5A/250V C701 4700UF D701-D704 RL-202 FUSE3 1N4001 3.5A/250V MC-DX220iDAB Micro Hi-Fi System...
  • Page 21 All manuals and user guides at all-guides.com DISPLAY PCB CON803 D801 CON808 IC801 9014C MC-DX220iDAB Micro Hi-Fi System...
  • Page 22 All manuals and user guides at all-guides.com LCD MOULE IC805 ST7070 MC-DX220iDAB Micro Hi-Fi System...
  • Page 23 All manuals and user guides at all-guides.com CD PCB B764 MC-DX220iDAB Micro Hi-Fi System...
  • Page 24 All manuals and user guides at all-guides.com IPOD PCB MC-DX220iDAB Micro Hi-Fi System...
  • Page 25 All manuals and user guides at all-guides.com STANDBY PCB MC-DX220iDAB Micro Hi-Fi System...
