Owner's Manual
Original Instructions

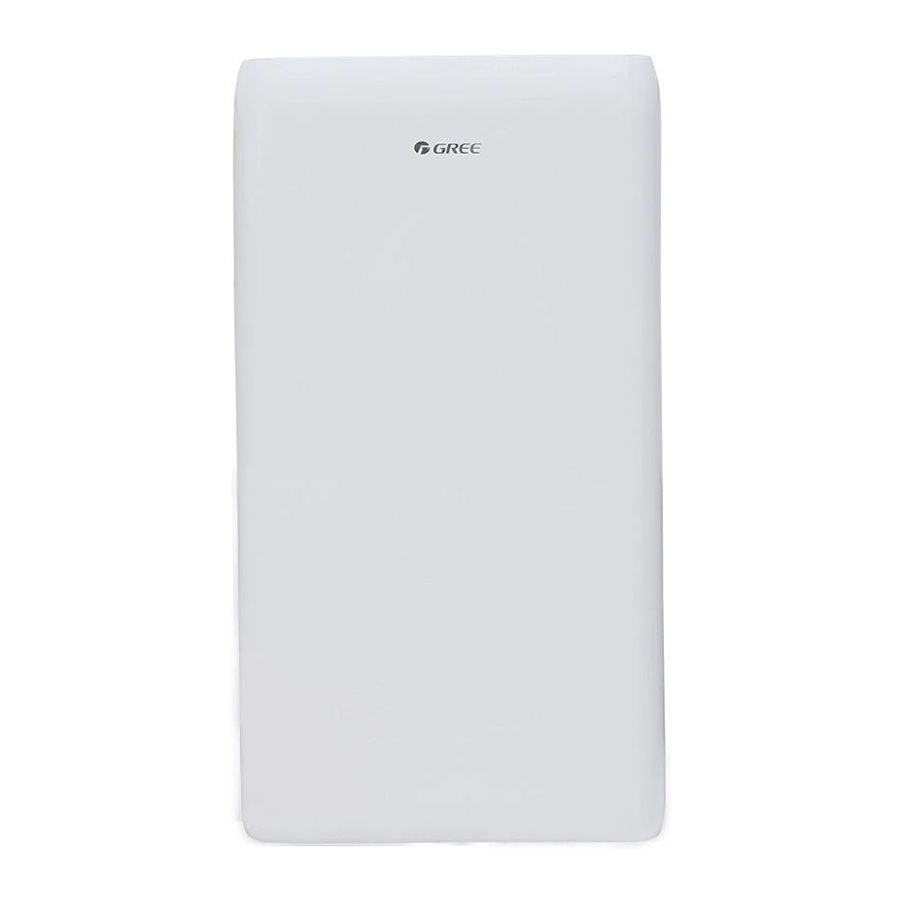

Local air conditioner
GPH12AO-K5NNA1A
Model:
GPC12AO-K5NNA1A
Thank you for choosing our product.
Please read this Owner's Manual carefully before operation and
retain it for future reference.
If you have lost the Owner's Manual, please contact the local agent
or visit www.gree.com or send an email to global@gree.com.cn for
the electronic version.
Advertisement
Table of Contents
Related Manuals for Gree GPH12AO-K5NNA1A
Summary of Contents for Gree GPH12AO-K5NNA1A
- Page 1 Thank you for choosing our product. Please read this Owner’s Manual carefully before operation and retain it for future reference. If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com or send an email to global@gree.com.cn for the electronic version.
-
Page 2: Table Of Contents
Content Operation Notices Safety precautions ..................... Operation Environment ..................Parts Name ......................Operation Guide Operation Introduction for Control Panel ............... Using the remote controller ................... Buttons on Remote Controller ................Introduction for Icons on Display Screen ............... Introduction for Buttons on Remote Controller ............Function Introduction for Combination Buttons ............. - Page 3 Explanation of Symbols WARNING This symbol indicates the possibility of death or serious injury. This symbol indicates the possibility of injury or damage to CAUTION property. Indicates important but not hazard-related information, used NOTICE to indicate risk of property damage. Exception Clauses Manufacturer will bear no responsibilities when personal injury or property loss is caused by the following reasons.
- Page 4 The refrigerant Should repair be necessary,contact your nearest Before install the Appliance filled authorized Service Centre. Any repairs carried out appliance, read with flammable by unqualified personnel may be dangerous. the installation gas R290. Compliance with national gas regulations shall manual first.
-
Page 5: Safety Precautions
Safety precautions WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 6: Operation Environment
Safety precautions WARNING Do not put or hang dripping objects above the air conditioner. Do not repair or disassemble the air conditioner by yourself. Prohibit inserting any objects into the air conditioner. Do not through sundries into the air duct. If there are sundries get into the air duct, please contact the professionals to deal with it. -
Page 7: Parts Name
Parts name Controller panel Guide louver Filter Air inlet OPER On/Off Mode Swing Sleep Timer Health WiFi Remote controller Notice ● Some installation accessories can't be discarded. -
Page 8: Operation Introduction For Control Panel
Operation Introduction for Control Panel Name of control panel Timer indicator + / - button Dry mode indicator Swing indicator Cool mode indicator WiFi indicator ON/OFF button Fan mode indicator Mode button Fan button Dual-8 nixie tube Heat mode indicator Fan speed indicator Swing button (Cool&Heat Unit only) -
Page 9: Using The Remote Controller
Buttons on remote controller Oper ation of control panel setting is finished, the unit will display temper- OPER ature if there’s no operation for 5s. If timer fun- ction is started up, the upper indicator will keep the display status. Others, it won’t be displayed. Under timer mode, press timer button again to cancel timer mode. -
Page 10: Introduction For Buttons On Remote Controller
● Under timer setting status, after each pressing of Introduction for buttons on “+” or “-” button, time will increase or decrease 0.5h . remote controller Hold “+” or “-” button, 2s later, time displayed on Notice dual-8 nixie tube will change quickly. Loosen the bu- ●... -
Page 11: Function Introduction For Combination Buttons
Introduction for buttons on Notice remote controller ● The distance between signal sender and receiving button for the third time to quit health and scaven- window should be no more than 8m, and there should ging functions simultaneously. Press the button for be no obstacles between them. -
Page 12: Clean And Maintenance
Clean and maintenance Notice ● The filter should be cleaned about once every three months.If there’s much dust in the operation envir- WARNING onment, you can increase clean frequency. ● Before cleaning the air conditioner, please turn ● Do not dry the filter with fire or hair drier.Otherwise, off the unit and disconnect power. -
Page 13: Malfunction Analysis
Malfunction analysis Phenomenon Solution Check items Whether air outlet or Eliminate the obstacles. Please check below items before asking for main- air inlet is blocked? tenance. If the malfunction still can’t be eliminated, Under heating mode, The unit will stop blo- please contact local dealer or qualified professionals. -
Page 14: Installation Precaution
The place with high-frequency devices (such as welding machine, medical equipment). GPH12AO-K5NNA1A 0.13 3. The place near coast area. GPC12AO-K5NNA1A 4. The place with oil or fumes in the air. -
Page 15: Preparation Before Installation
Preparation before Installation Notice ● Check if the accessories are available before insta- Sponge A Sponge B llation. Accessory list Optional 3 Heat discharge pipe Joint A Joint D Joint H Screws Drain connector Power cord hooks OPER Plastic Cover Joint E On/Off Mode... -
Page 16: Install Power Cord Hooks
Preparation before Installation 3. Remove the pre-installed drain cap from the unit, If you have selected the drainage hose, insert it into the drainage outlet. Install Power cord Hooks Drain the water into the small pan or a suitable place. ●... -
Page 17: Installation Of Heat Discharge Pipe
Installation of Heat Discharge Pipe Removing Collected Water 2. Screw the drain connector to (included in the Note of Installing heat discharge pipe package) the spout by turning clockwise. In order to improve cooling efficiency,the heat disch- arge pipe should be as short as possible and flat without curve to ensure smooth heat discharge. - Page 18 Installation of Heat Discharge Pipe Insert joint A of heat discharge pipe into the gro- ove until you hear a sound. Groove Correct installation is as shown in figure (When joint A installing it on wall,height of hall should not be over 130cm from floor).
- Page 19 Installation of Heat Discharge Pipe (3) Secure the window panel to the window sill with screws. The window panel cannot be installed in windows less than 20.5" (520mm) wide, as you will be una- ble to shut the exhaust cover. (1) Open the window sash and place the window Extension panel panel on the window sill.
- Page 20 Installation of Heat Discharge Pipe Cut the sponge A (adhesive type) to the proper length and attach it to the window frame and to the side of sash. Connect Window adapter(top) to Window ada- pter(bottom). Sponge A Window adapter(top) Window adapter(bottom) Rotate joint A and joint Window adapter(top) + Install the window panel into the window frame.
- Page 21 Installation of Heat Discharge Pipe 6. Attach the bracket with a screw. Adjustment panel Bracket Connect Window adapter(top) to Window ada- pter(bottom). Window adapter(top) Inner height of the window:38.5" (980mm) - 59" (1500mm) Use the window panel, the adjustment Window adapter(bottom) panel and the extension panel.
- Page 22 Optional 3-2: Installation of Heat Discharge Pipe Installation in immovable window Optional 3-1: Rotate joint A into the ends of heat discharge Installation in the window pipe. Fold the rear joint inwards unit these two clasps have tightly connected the rear joint together. Heat discharge pipe Joint A If the window is immovable, cut a hole to install...
-
Page 23: Disassembly Of Heat Discharge Pipe
Disassembly of Heat Discharge Pipe Optional 3: Disassembly for installation in window Optional 1: Remove joint A: Disassemble for installation in dou- Press the clasp and lift joint A upwards to remove it. ble window Groove Remove joint A: joint A Press the clasp and lift joint A upwards to remove it. -
Page 24: Operation Test
Electric Schematic Diagram Disassembly of Heat Discharge Pipe GPH12AO-K5NNA1A When heat discharge pipe is removed, Install the plastic cover into joint F in case of the insect into The Electric schematic diagram are subject to change the house . without notice. Please refer to which one on the unit. -
Page 25: Specialist's Manual
Specialist’s Manual Aptitude requirement for maintenance Presence of fire extinguisher man(repairs should be done only be If any hot work is to be conducted on the refrige- specialists). ration equipment or any associated parts, approp- riate fire extinguishing equipment shall be available Any person who is involved with working on or to hand. - Page 26 Specialist’s Manual are constructed of materials which are inherently mitted for the equipment in use. Intrinsically safe components are the only types resistant to being corroded or are suitably protec- that can be worked on while live in the presence of ted against being so corroded.
- Page 27 Specialist’s Manual wed since flammability is a consideration. The foll- the technician is completely familiar with the equipm- owing procedure shall be adhered to: ent and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the remove refrigerant;...
- Page 28 Specialist’s Manual that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).
- Page 29 GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Add: West Jinji Rd, Qianshan, Zhuhai,Guangdong, China, 519070 Tel: (+86-756) 8522218 Fax: (+86-756) 8669426 E-mail: gree@gree.com.cn Web: www.gree.com 600005062054...
