Belkin OmniView F1DD102U Quick Installation Manual

Introduction
This booklet is a quick guide through the basic steps needed to
install the SOHO Series KVM Switch with Audio (the KVM Switch). If
you have any problems during installation, please refer to the KVM
Switch User Manual.
You will need the following items to install the KVM Switch:
• SOHO Series KVM Switch with Audio
• One (each) USB keyboard, DVI monitor, and USB mouse
• One DVI and USB KVM cable per computer installed
• One 9V DC, 1A power supply adapter
• Optional—audio cables (3.5mm plugs) for speakers and
microphone installation
Recommended Cable Kits:
F1D9201-XX KVM Cables for SOHO Series DVI with Audio,
USB Style
(-XX denotes the length of cable in 6, 10, and 15 feet)

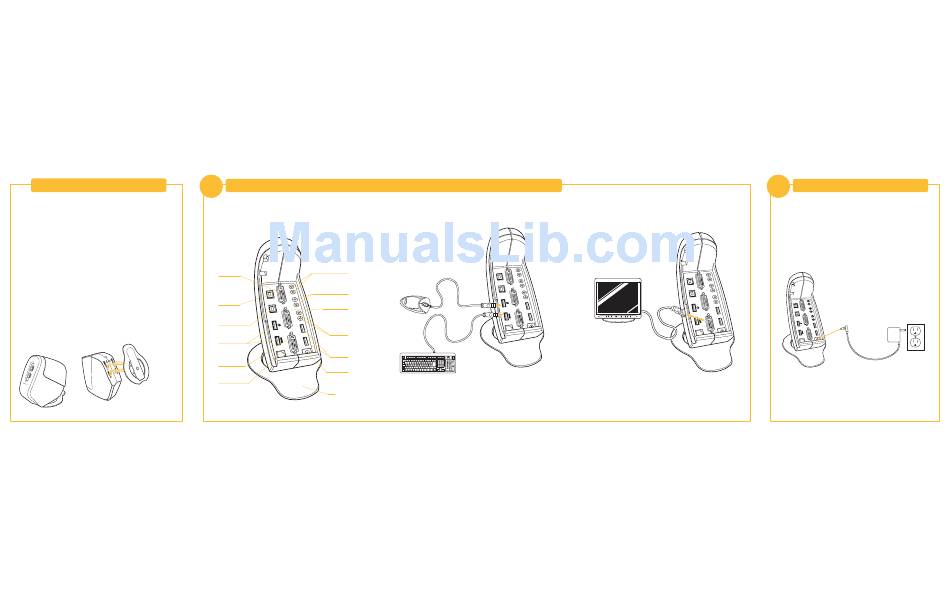

Installing the KVM Switch Base
1
Connecting the Video, Keyboard, and Mouse to the CONSOLE Ports and Computers on the KVM Switch
1. Power down your computers.
2. Remove the rear panel of the KVM Switch to expose the ports. (Fig. 1)
2nd computer
2nd computer
audio/microphone jacks
DVI port–DVI 2
1st computer
audio/microphone jacks
2nd computer
USB mouse/keyboard
ports
1st computer
DVI port–DVI 1
1st computer
USB mouse/keyboard
CONSOLE
ports
audio/
microphone
jacks
CONSOLE USB
mouse/keyboard
ports
USB input
ports—
devices 1
and 2
CONSOLE
DVI port
DC power jack
Flash-upgrade port
Base
Fig. 1
3. Connect your USB keyboard and USB mouse to the CONSOLE ports on your
KVM Switch. (Fig. 2)
Fig. 2
4. Take the video cable that is attached to your DVI monitor and connect it to
the CONSOLE video port on your KVM Switch. (Fig. 3)
Fig. 3
2
Powering up the KVM Switch
1. Connect the included 9V DC, 1A power supply adapter into an available
power outlet.
2. Attach the barrel into the power jack on the KVM Switch to power
the unit. The LEDs should illuminate. (Fig. 4)
Fig. 4
