Juniper SRX320 Setup

How to Set Up Your SRX320 Services Gateway
The SRX320 Services Gateway consolidates security, routing, switching,
and WAN interfaces for small distributed enterprises. With advanced threat
mitigation capabilities, the services gateway provides cost-effective and secure
connectivity across distributed enterprises.
With a desktop form-factor chassis, the SRX320 Services Gateway has six
1-Gigabit Ethernet ports, two 1-Gigabit Ethernet SFP ports, 4 GB of DRAM
memory, and 8 GB of flash memory. The SRX320 Services Gateway is available
with or without Power over Ethernet (PoE) capability. In the PoE model, the six
Ethernet ports are PoE capable.
Package Contents
SRX320
RJ-45 cable
• End User License Agreement Warranty and Registration
• Safety Guide Information
• Quick Start Guide
DB-9 adapter
USB cable
Power cable
Power supply
adapter

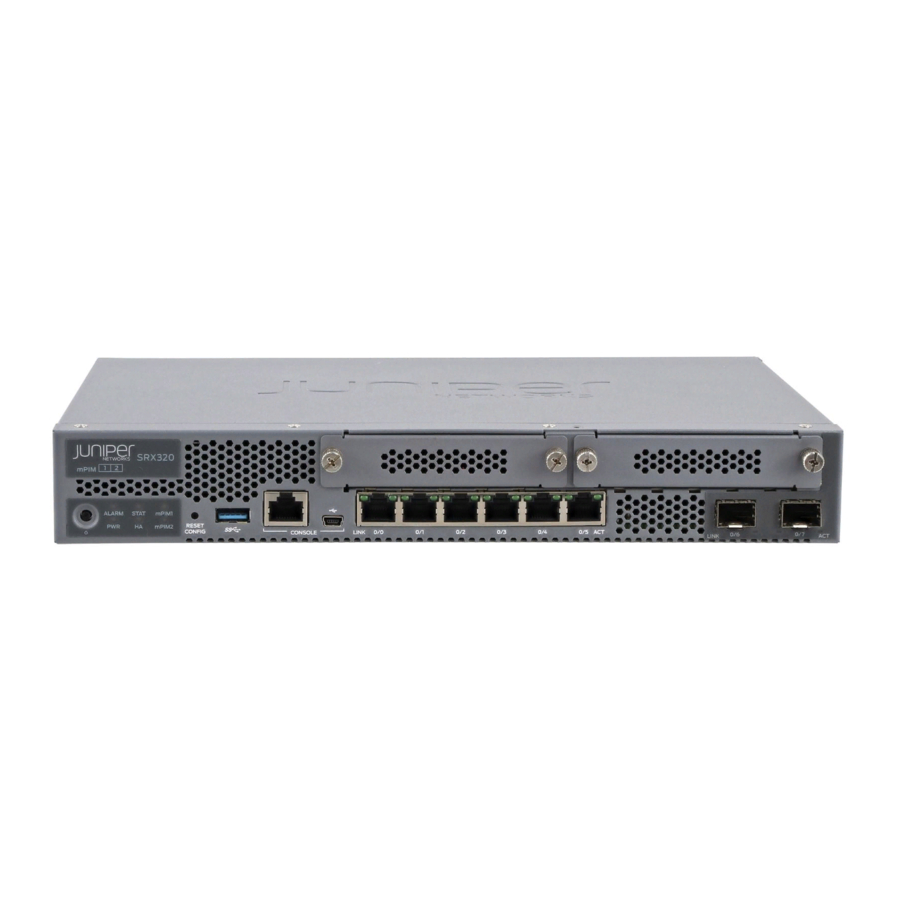

Front Panel
Reset Config Serial Console
button port
Power LEDs USB Mini-USB
button port Console port
Back Panel
Lock
Grounding point
NOTE: Check the parts in the shipment against the items on the packing
list. If anything is missing or damaged, contact your Juniper Networks
customer service representative.
Specification SRX320
Dimensions (D x W x H) 7.52 in. x 11.81 in. x 1.73 in.
(19.10 cm x 29.99 cm x 4.39 cm)
Chassis weight 3.28 lb (1.49 kg)
Average power consumption 27 W
Average heat dissipation 157 BTU/hr
Relative humidity 5% to 90%, noncondensing
Noise level 35 dBA
Mini-PIM slots
1G Ethernet 1G SFP
ports ports
Fans Cable tie holder
DC input
SRX320-PoE
7.52 in. x 11.81 in. x 1.73 in.
(19.10 cm x 29.99 cm x 4.39 cm)
3.4 lb (1.54 kg)
112 W
755 BTU/hr
5% to 90%, noncondensing
40 dBA
