Connecting the Power Terminal Block

The DC power interface is a 6-pin terminal block with polarity signs on the top panel. The ISW can be
powered from two power supply (input range 12V – 58V). The DC power connector is a 6-pin terminal
block; there is alarm contact on the middle terminal block.
The switch can be powered from two power supplies (input range 12V – 58V). Insert the positive and
negative wires into V+ and V- contacts on the terminal block respectively and tighten the wire-clamp
screws to prevent the wires from being loosened.
Note
The DC power should be connected to a well-fused power supply.

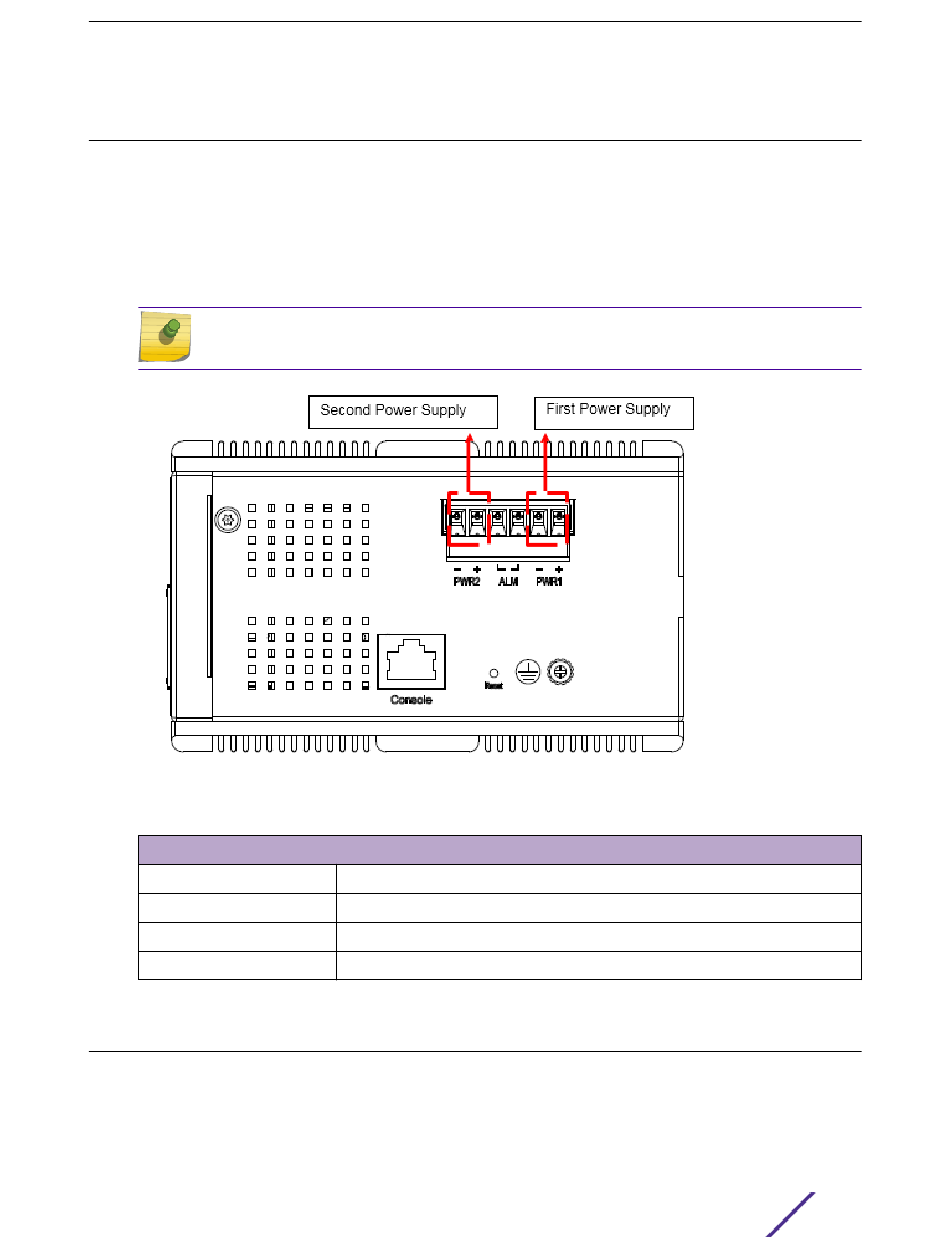

Figure 9: Power Supplies
Power Connector (6P Terminal Block)
Input
PWR1 +/-
PWR2 +/-
ALM

Console Connection

The Console port is for local management by using a terminal emulator or a computer with terminal
emulation software.
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide
DC 12-58V
Power Input 1 +/-
Power Input 2 +/-
Alarm relay output
