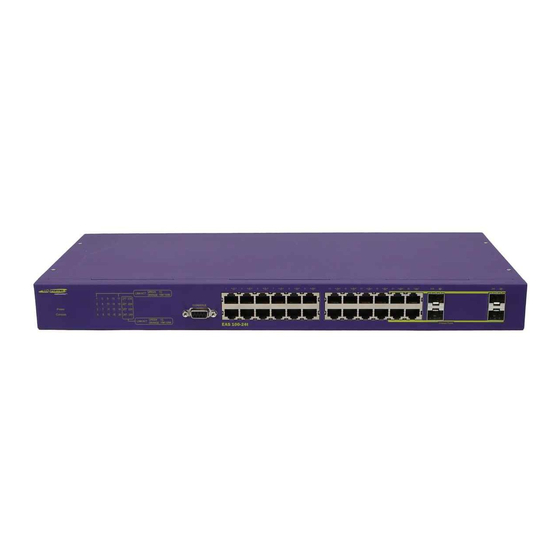

- Page 1 Extreme Networks EAS 100-24t Switch Hardware Installation Manual Layer 2 Managed Gigabit Switch Release 1.00 Extreme Networks, Inc. 3585 Monroe Street Santa Clara, California 95051 (888) 257-3000 (408) 579-2800 http://www.extremenetworks.com Published: July 2011 Part number: 120703-00 Rev. 01...
- Page 2 Unified Access Architecture, Unified Access RF Manager, UniStack, XNV, the Extreme Networks logo, the Alpine logo, the BlackDiamond logo, the Extreme Turbodrive logo, the Summit logos, and the Powered by ExtremeXOS logo are trademarks or registered trademarks of Extreme Networks, Inc. or its subsidiaries in the United States and/or other countries.
-
Page 3: Table Of Contents
SNMP Settings ...............................26 Traps ................................27 IP Address Assignment ............................27 Chapter 5: Web-Based Switch Configuration ..................31 Introduction................................31 Login to Web Manager ............................31 Web-based User Interface .............................32 Areas of the User Interface ..........................32 Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 4 Web Pages ................................34 Appendix A: Technical Specifications ....................35 General...................................35 Physical and Environmental ...........................37 Performance ................................37 LED Indicators ................................37 Appendix B: Cables and Connectors ..................... 39 Ethernet Cable ...............................39 Console Cable ................................40 Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 5: Preface
This manual describes the installation, maintenance, and configuration of the EAS 100-24t. Intended Readers The Extreme Networks EAS 100-24t Switch Hardware Installation Manual contains information for setup and management of the switch. This manual is intended for network managers familiar with network management concepts and terminology. -
Page 6: Notes, Cautions, And Warnings
Keep your system away from radiators and heat sources. Also, do not block cooling vents. ● Do not spill food or liquids on your system components, and never operate the product in a wet ● environment. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 7 If the system has multiple sources of power, disconnect power from the system by unplugging all ● power cables from the power supplies. Move products with care; ensure that all casters and/or stabilizers are firmly connected to the ● system. Avoid sudden stops and uneven surfaces. Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 8: General Precautions For Rack-Mountable Products
Do not replace the battery with an incorrect type. The risk of explosion exists if the replacement battery is not the correct lithium battery type. Dispose of used batteries according to the instructions. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 9: Protecting Against Electrostatic Discharge
2 When transporting a sensitive component, first place it in an antistatic container or packaging. 3 Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads, workbench pads and an antistatic grounding strap. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 10 Preface Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 11: Chapter 1: Introduction
1000BASE-T IEEE 802.3 compliant Combo: IEEE 802.3u compliant IEEE 802.3ab compliant IEEE 802.3x flow control support in full-duplex 100BASE-FX: IEEE 802.3 compliant IEEE 802.3u compliant IEEE 802.3x flow control support in full-duplex Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 12: Led Indicators
When there is a secure 10/100Mbps Ethernet connection (or link) at any of the ports. Blinking Orange When there is reception or transmission (i.e. Activity— Act) of data occurring at an Ethernet connected port. Light off No link. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 13: Front-Panel Description
The switch automatically adjusts its power setting to any supply voltage in the range from 100 ~ 240 VAC at 50 ~ 60 Hz. Figure 3: Rear panel view of the EAS 100-24t Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 14: Side Panel Description
Please note that although these two front panel modules can be used simultaneously, the ports must be different. The GBIC port will always have the highest priority. Figure 5: Inserting the Mini-GBIC modules into the Switch Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 15 10052: LX mini-GBIC - Mini-GBIC SFP, 1000BASE-LX, MMF 220 & 550 meters, SMF 10km, LC ● connector 10056: 1000BASE-BX-D BiDi SFP - 1000BASE-BX-D SFP, 1490-nm TX/1310-nm RX wavelength ● 10057: 1000BASE-BX-U BiDi SFP - 1000BASE-BX-U SFP, 1310-nm TX/1490-nm RX wavelength ● Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
- Page 16 Chapter 1: Introduction Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 17: Chapter 2: Installation
When installing the switch on a level surface, attach the rubber feet to the bottom of the device. The ● rubber feet cushion the switch, protect the casing from scratches and prevent it from scratching other surfaces. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 18: Installing The Switch Without The Rack
Figure 8: Fasten mounting brackets to Switch Fasten the mounting brackets to the switch using the screws provided. With the brackets attached securely, the switch can be mounted in a standard rack as shown in the next figure. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 19: Mounting The Switch In A Standard 19" Rack
After installing components in a rack, do not pull more than one component out of the rack on its slide assemblies at one time. The weight of more than one extended component could cause the rack to tip over and may result in injury. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 20 Chapter 2: Installation Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 21: Chapter 3: Connecting The Switch
The Link/Act LEDs for each UTP port will light green or orange when the link is valid. A blinking LED indicates packet activity on that port. NOTE All 10/100/1000Mbps NWay Ethernet ports can support both MDI-II and MDI-X connections. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 22: Switch To Hub Or Switch
Figure 11: Switch connected to a normal (non-Uplink) port on a hub or switch using a straight or crossover cable CAUTION When the SFP transceiver acquires a link, the associated integrated 10/100/1000BASE-T port is disabled. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 23: Chapter 4: Introduction To Switch Management
A terminal or a computer with both a serial port and the ability to emulate a terminal. ● A null modem or crossover RS-232 cable with a female DB-9 connector for the console port on the ● switch. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 24 Upon the initial connection, there is no user name or password and therefore just press enter twice to access the command line interface. Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 25: First Time Connecting To The Switch
The switch does not have a default password. One of the first tasks when settings up the switch is to create user accounts. Once logged in using a predefined administrator-level user name, users will have privileged access to the switch's management software. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 26: Snmp Settings
A defined set of variables (managed objects) is maintained by the SNMP agent and used to manage the device. These objects are defined in a Management Information Base (MIB), which provides Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 27: Traps
The switch is also assigned a unique MAC address by the factory. This MAC address cannot be changed, and can be found by entering the command "show switch" into the command line interface, as shown below. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 28 The IP interface named System on the switch can be assigned an IP address and subnet mask, and then be used to connect a management station to the switch's Telnet or Web-based management agent. Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
- Page 29 (the CIDR form was used to set the address (10.1.1.1/8). The system message Success indicates that the command was executed successfully. The switch can now be configured and managed via Telnet and the CLI or via the Web-based management. Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
- Page 30 Chapter 4: Introduction to Switch Management Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 31: Chapter 5: Web-Based Switch Configuration
NOTE The Factory default IP address for the switch is 0.0.0.0. The user must first configure an IP address for the switch through the console port before connecting to the Web Manager. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 32: Web-Based User Interface
Areas of the User Interface The figure below shows the user interface. The user interface is divided into three distinct areas as described in the table. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 33 Area 1: Select the folder or window to be displayed. The folder icons can be opened to display the hyperlinked window buttons and subfolders contained within them. Click the Extreme Networks logo to go to the Extreme Networks website. Area 2: Presents a graphical near real-time image of the front panel of the switch.
-
Page 34: Web Pages
Configuration File Upload & Download, Upload Log File, Reset, Ping Test, Download Firmware, and Reboot System. NOTE Be sure to configure the user name and password in the User Accounts window before connecting the switch to the greater network. Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 35: Appendix A: Technical Specifications
• 10057: 1000BASE-BX-U BiDi SFP - 1000BASE-BX-U SFP, 1310-nm TX/1490-nm RX wavelength Standards CSMA/CD Data Transfer Rates: Half-duplex Full-duplex Ethernet 10 Mbps 20Mbps Fast Ethernet 100Mbps 200Mbps Gigabit Ethernet 2000Mbps Topology Star Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 36 Cat.5 Enhanced for 1000BASE-T UTP Cat.5, Cat. 5 Enhanced for 100BASE-TX UTP Cat.3, 4, 5 for 10BASE-T EIA/TIA-568 100-ohm screened twisted-pair (STP)(100m) Number of Ports 20 x 10/100/1000Mbps + 4 Combo 1000BASE-T/SFP Ports Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 37: Physical And Environmental
Max age: 10-1000000 seconds. Default = 300. LED Indicators Location LED Indicator Color Status Description Per Device Power Green Solid Light Power On Light off Power Off Console RS232 Green Solid Light Console on Light Off Console Off Extreme Networks EAS 100-24t Switch Hardware Installation Manual... - Page 38 Light link) to 1000Mbps Ethernet device at any of the ports. Blinking Green When there is reception or Light transmission (i.e. Activity--Act) of data occurring at a port. Light Off No link. Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
-
Page 39: Appendix B: Cables And Connectors
RJ-45 Pin Assignment Contact MDI-X Port MDI-II Port RD+ (receive) TD+ (transmit) RD- (receive) TD- (transmit) TD+ (transmit) RD+ (receive) 1000BASE-T 1000BASE-T 1000BASE-T 1000BASE-T TD- (transmit) RD- (receive) 1000BASE-T 1000BASE-T 1000BASE-T 1000BASE-T Extreme Networks EAS 100-24t Switch Hardware Installation Manual... -
Page 40: Console Cable
Console-to-DJ-45 receptacle/connector and their pin assignments. Figure 20: Console-to-RJ-45 Cable Console-RJ-45 Pin Assignments Console (DB9/RS232) RJ-45 Not Used Not Used Not Used Not Used GND (shared) Not Used Not Used Not Used Not Used Not Used Extreme Networks EAS 100-24t Switch Hardware Installation Manual...
