Beta Three CPM Series User Manual

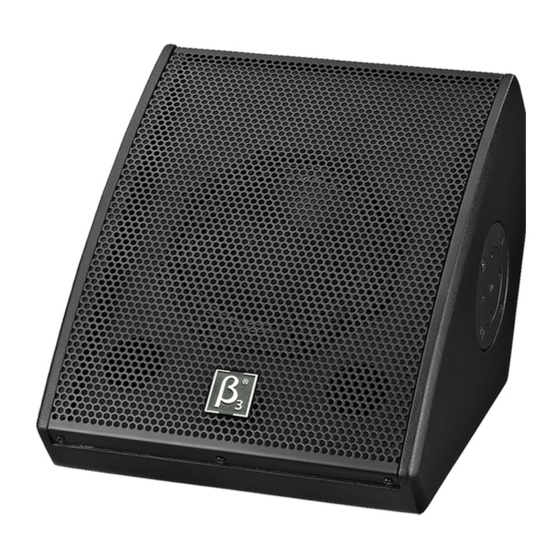

10" two-way full range coaxial speaker
Hide thumbs
Also See for CPM Series:
- User manual (10 pages) ,
- User manual (10 pages) ,
- User manual (10 pages)
Related Manuals for Beta Three CPM Series
Summary of Contents for Beta Three CPM Series
- Page 1 CPM110 10" Two-way Full Range Coaxial Speaker CPM SERIES COAXIAL SPEAKERS User Manual UM-CPM110-20170228 ver B...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buying product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CPM110 CONTENT CPM Series Coaxial Speakers CONTENT INTRODUCTION Features Description Applications CONNECTION Speakon NL4 Connection System Connection Reference INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response And Impedance Curve 2D Dimension Product information subjects to be updated without notification, please visit www.elderaudio.com for... -
Page 4: Introduction
CPM110 INTRODUCTION CPM Series Coaxial Speakers CPM110 10" Two-way Full Range Coaxial Speaker Features Two transducers two way full range speaker with coaxial horn, computerized stimulation design. Be composed of one 10 inch low frequency driver and one 44mm high frequency driver. -
Page 5: Connection
CPM110 CONNECTION CPM Series Coaxial Speakers Two NL4 connectors are available for amplifier connection. Paralelled connector is very convenient for another speaker connection. Terminal Plate INPUT CPM110 PASSIVE COAXIAL SPEAKER DONGGUAN 3G AUDIO TECHNOLOGY CO., LTD. FREQUENCY(-3dB) 80Hz-20kHz POWER(RMS) 200W... -
Page 6: Installation
CPM110 INSTALLATION CPM Series Coaxial Speakers Mounting Accessories(Optional) Installation Reference M10 mounting points are very convenient and efficient for 1.Reference A the different application with special brackets. 1. U-Bracket 2.Reference B Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local... -
Page 7: Technical Specification
CPM110 TECHNICAL SPECIFICATION CPM Series Coaxial Speakers Technical Specification Speaker Testing Method System: 1. Frequency Response Passive full range wooden speaker with painting Use Pink noise to test the speaker in the anechoic chamber, System components: 1×10 LF " adjust the level to make the speaker work at its rated impedance... -
Page 8: 2D Dimension
CPM110 TECHNICAL SPECIFICATION CPM Series Coaxial Speakers 2D Dimension Back view Front view Side view 385mm 406mm [16.0in] [15.2in] Bottom view... - Page 9 Notes:...
