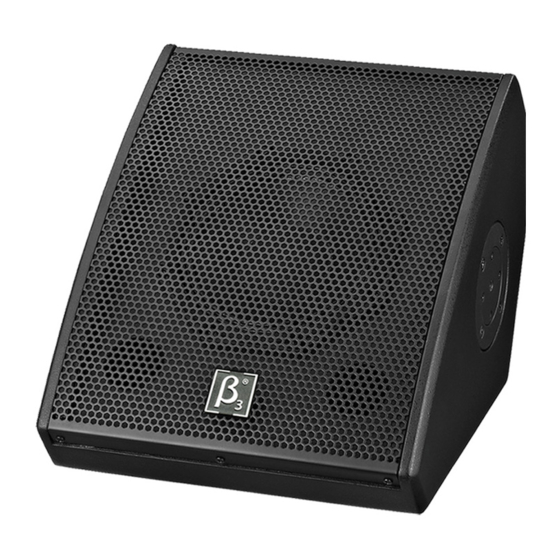

8'' two-way full range active coaxial speaker
Hide thumbs
Also See for CPM SERIES:
- User manual (10 pages) ,
- User manual (10 pages) ,
- User manual (10 pages)
Related Manuals for Beta Three CPM SERIES
Summary of Contents for Beta Three CPM SERIES
- Page 1 CPM108P 8" Two-way Full Range Active Coaxial Speaker CPM SERIES COAXIAL SPEAKERS User Manual UM-CPM108P-20170228 ver B...
- Page 2 SAFETY INSTRUCTIONS PLEASE READ THIS MANUAL FIRST Thank you for a buyin product. Read this manual first as it will help you operate the system properly. Please keep this manual for future reference. WARNING: This product must be installed by professionals. When using hanging brackets or rigging other than those supplied with the product, please ensure they comply with the local safety codes.
-
Page 3: Table Of Contents
CPM108P CONTENT CPM Series Coaxial Speakers CONTENT INTRODUCTION Features Description Applications AMPLIFIER MODULE Amplifier Module INSTALLATION Mounting Accessories Installation Reference TECHNICAL SPECIFICATION Technical Sheet Frequency Response Curve & Distortion Curve 2D Dimension Product information is subject to change without prior notification. Please visit www.elderaudio.com... -
Page 4: Introduction
CPM108P INTRODUCTION CPM Series Coaxial Speakers CPM108P 8" Two-way Full Range Active Coaxial Speaker Features Two transducers two way full range speaker with coaxial horn, computerized stimulation design. New generation Class D amplifier, durable and reliable. Performance enhanced with built-in DSP. -
Page 5: Amplifier Module
CPM108P AMPLIFIER MODULE CPM Series Coaxial Speakers Rear Panel Amplifier Module MODE SYSTEM POWER LINE MUSIC FLAT LOW CUT CLIP MIC/LINE IN A LINE OUT A VOLUME AC INPUT 0 dB AC220-240V,100W,50Hz ,T2.5AL LINE IN B LINE OUT B MIX OUT 1、... -
Page 6: Installation
CPM108P INSTALLATION CPM Series Coaxial Speakers Mounting Accessories(Optional) Installation Reference M10 mounting points are very convenient and efficient for 1.Reference A the different application with special brackets. 1. U-Bracket 2.Reference B Warning: Make sure the mounting accessories safety factor not less than 5:1 or meet the local... -
Page 7: Technical Specification
CPM108P TECHNICAL SPECIFICATION CPM Series Coaxial Speakers Specification Frequency response(-3dB): 90Hz-20kHz 118dB/124dB(PEAK) Max.SPL: × Transducer: 8" Woofer × 44mm Compression Driver Rated impedance: 8 Ohms XLR for input, XLR for output Connector: Input: Channel one (Mic/Line) balanced input Input impedance(line):... -
Page 8: 2D Dimension
CPM108P TECHNICAL SPECIFICATION CPM Series Coaxial Speakers 2D Dimension Back view Front view Side view 340mm 379mm [14.9in] [13.4in] Bottom view... - Page 9 Notes:...
