6.4

Installation

Mounting the I/O modules (except for waterproof module) on a
DIN rail

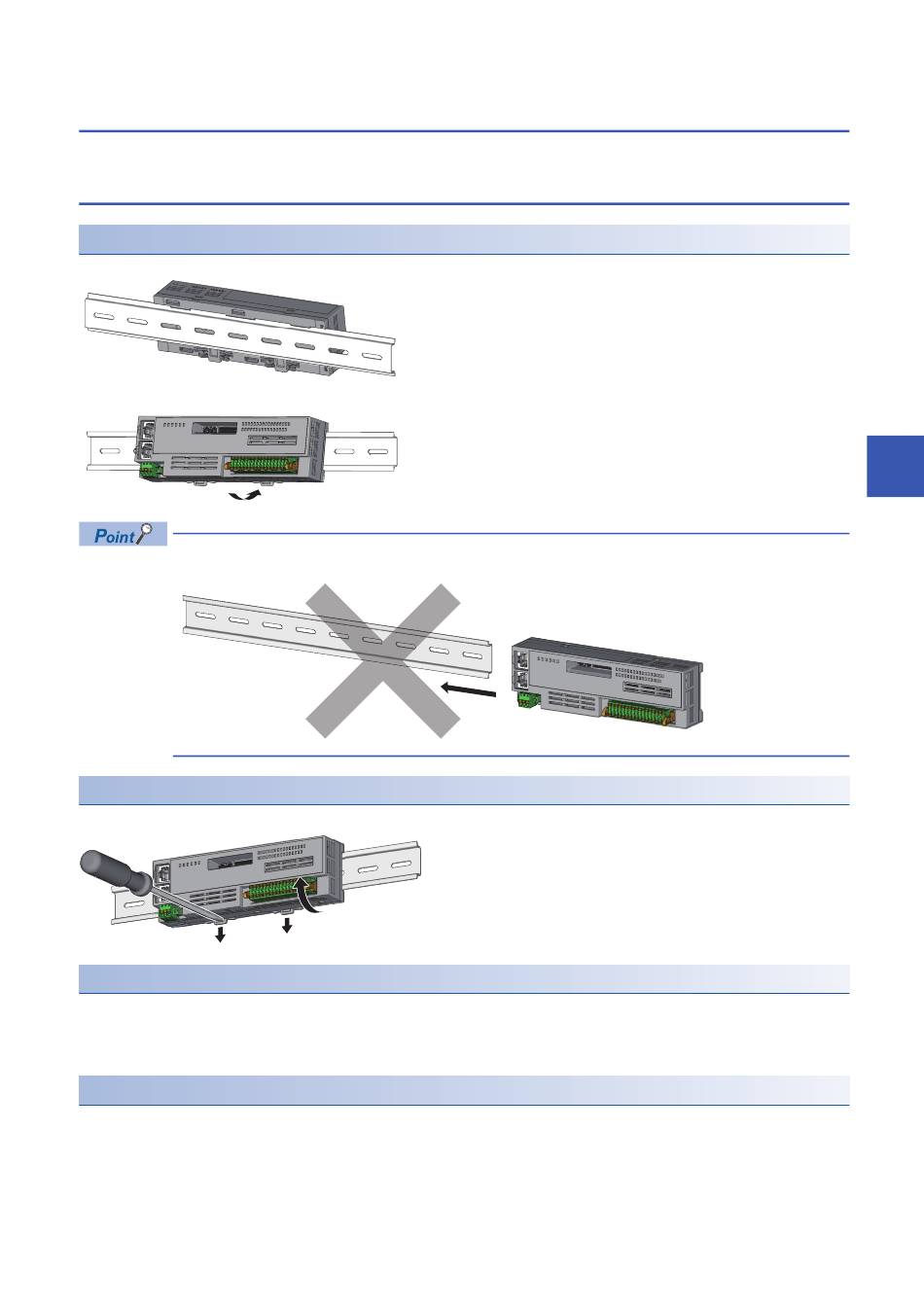

Installation procedure
Do not slide modules from the edge of the DIN rail when mounting them. The modules may be damaged.
Removal procedure
Remove the modules from the DIN rail by reversing the above procedure.
Applicable DIN rail models
Use the following DIN rails that are compliant with JIS C 2812 and IEC 60715.
• TH35-7.5Fe
• TH35-7.5Al
Interval between DIN rail mounting screws
Tighten the screws at intervals of 200mm or less.
1.
Hang the upper tabs of the I/O module (except for
waterproof module) on a DIN rail.
2.
Push in the DIN rail hooks of the module until they click.
1.
While pushing down the DIN rail hook with a flathead
screwdriver, remove the module from the DIN rail by
pulling its lower part toward you.
