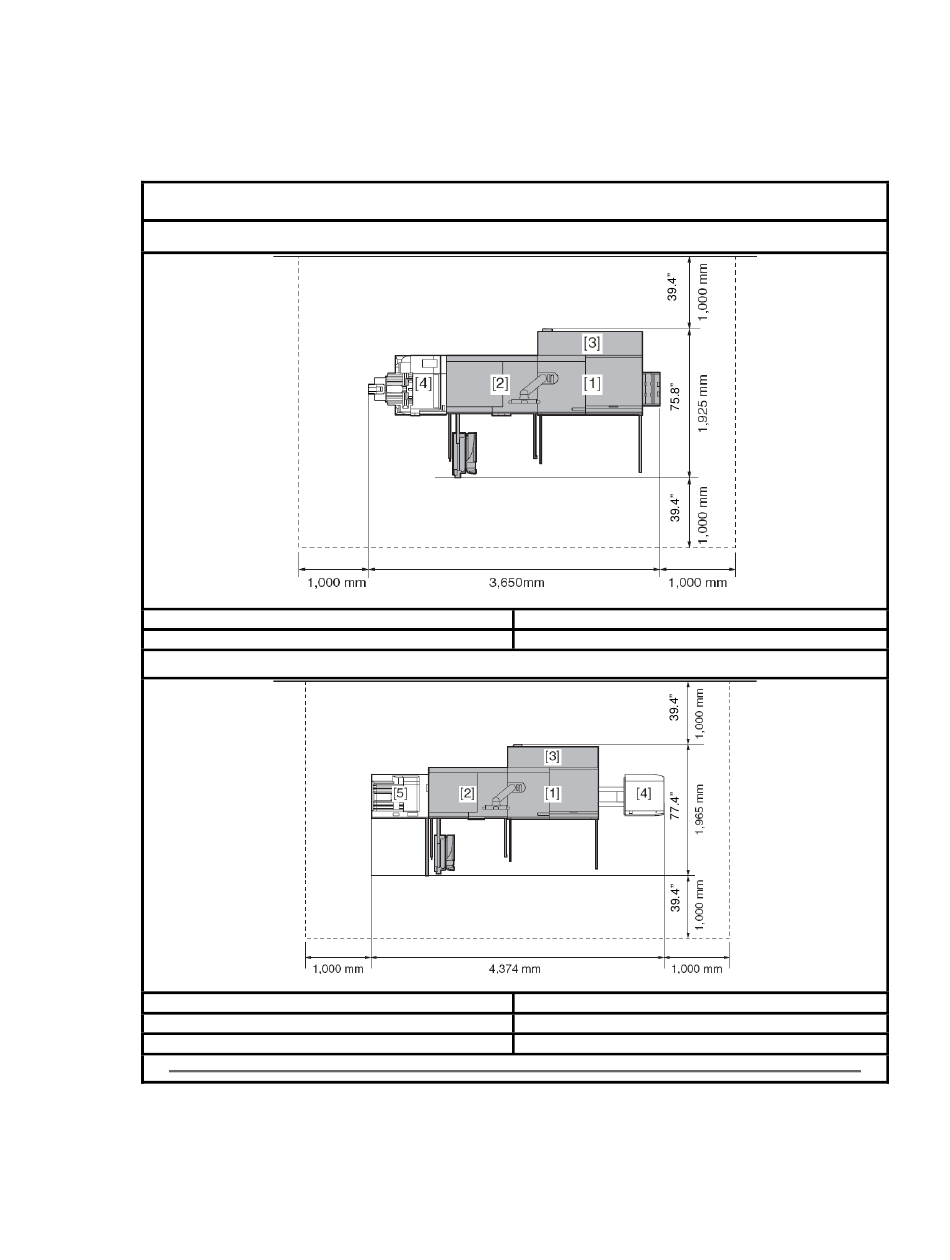

3.3.2 Installation Space Diagrams

The approximate installation space requirements will differ, depending on how
your machine is configured and the optional accessories attached.
There must be enough space around the machine. The following diagrams show the
minimum dimensions; whenever possible, be sure there will be more space than indicated.
[1] Main Station
[2] Sub Station
The optional High Capacity Stacker-C1 and Paper Deck-AC1 are attached.
[1] Main Station
[2] Sub Station
[3] Power Unit Station
Version 5
The optional Saddle Finisher-AB2 is attached.
39.4"
39.4"
imagePRESS C6000 Customer Expectations Document
143.7"
[3] Power Unit Station
[4] Saddle Finisher-AB2
172.20"
[4] Paper Deck-AC1
[5] High Capacity Stacker-C1
39.4"
39.4"
Page 9
