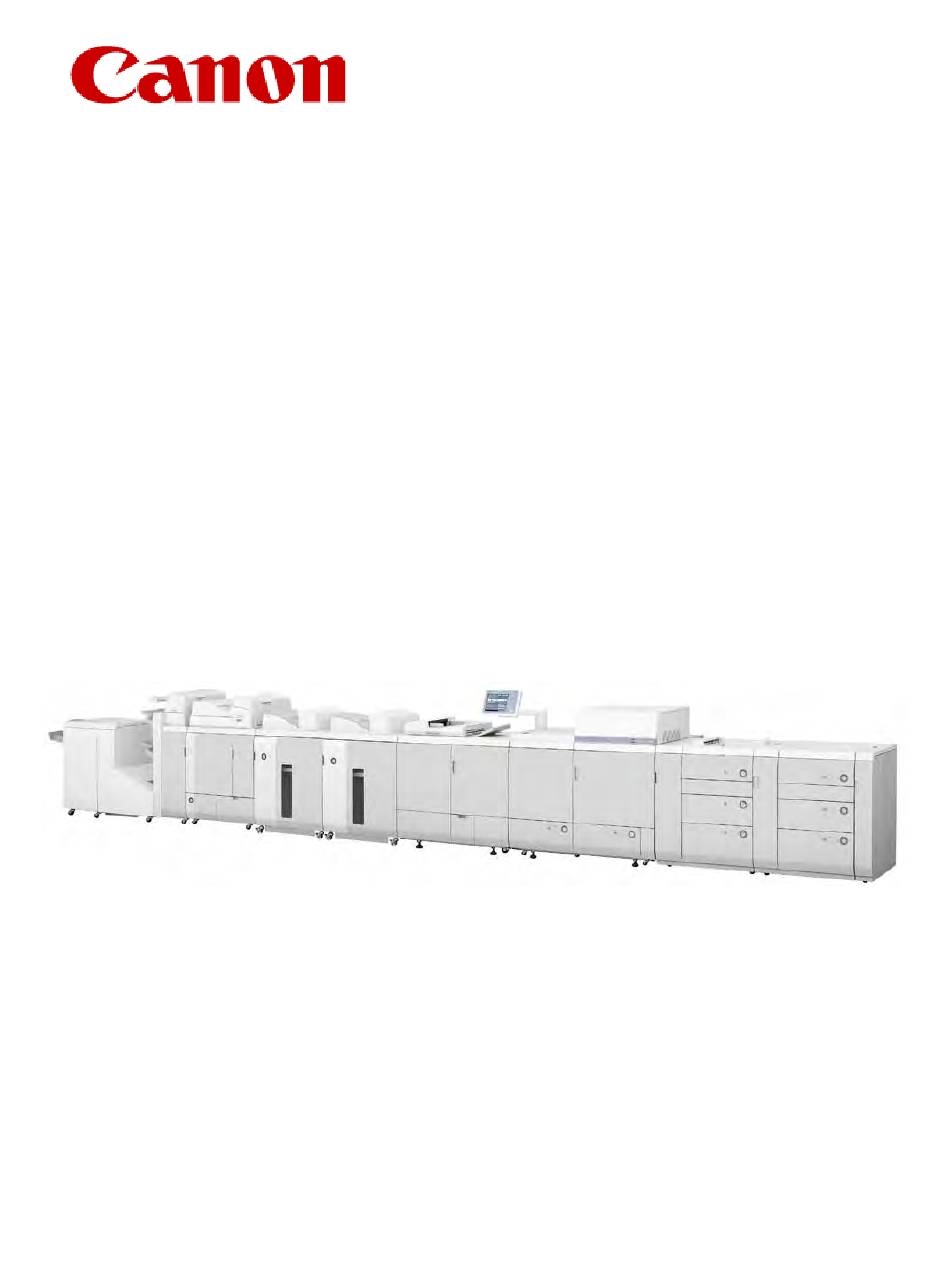

- Page 1 C6010 Customer Expectations Document Version 2 Engineering Services and Solutions Division Business Imaging Solutions Group, Canon U.S.A., Inc.
-
Page 2: Table Of Contents
5. Environmental Factors and Requirements............21 Temperature and Humidity Conditions ............21 Temperature Gradient ................... 21 Ventilation ..................... 22 Elevation Limitations ..................22 Lighting......................22 Sunlight ......................22 Ammonia ....................... 22 Version 2 imagePRESS C6010 Customer Expectations Document Page 2... - Page 3 7.16 Remote Operator's Software Kit-B1 .............. 50 7.17 Access Management System Kit-B1 ............. 50 7.18 Removable HDD Kit ..................51 7.19 Other imagePRESS C6010 Main Unit Accessory Options ......51 7.20 Notes on the Hard Disk ................. 51 8. Installation Review ....................52 Installation Time ....................
- Page 4 16.7 Paper Sizes and Feed Location Chart ............70 17. Customer-Defined Image Quality Adjustments and Recommendations ..71 17.1 Device Management Settings ............... 72 17.2 Paper Type Management Settings ..............73 18. Responsibility Matrix ................... 74 Version 2 imagePRESS C6010 Customer Expectations Document Page 4...
- Page 5 CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED AND EVEN IF CANON OR ITS SUPPLIERS OR ANY AUTHORIZED SERVICE PROVIDER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
-
Page 6: Introduction
Product Overview The Canon imagePRESS C6010 brings the following capabilities to users in a high-volume, mid-production office environment, including commercial printers, Print-for-Pay, and CRD customers: • Printing and copying speeds of up to 60 ppm (LTR, Color and Black-and-White) •... -
Page 7: Summary Of Functions
A digital press uses an electrostatic process to produce “offset-like” image quality at a fraction of the cost of an offset press. In the imagePRESS C6010 digital press, the drum is imaged; the toner is applied, and then transferred to the ITB (Intermediate Transfer Belt). -
Page 8: Image Stabilization Control
It is also affected by the deterioration of image formation parts through extended usage. The imagePRESS C6010 performs image stabilization by controlling the LUT (Lookup Table) and laser power based on the toner charge amount that is assumed by temperature, humidity, and consumption readings sensed in the developing unit by the hygro-thermal sensor. -
Page 9: Professional Input/Output Accessories
2.4 Professional Input/Output Accessories The imagePRESS C6010 features many input and output accessories that allow customers working in office environments to complete large jobs directly from the machine. For more information on the input and output accessories that can be attached to the machine, see “Specifications,”... -
Page 10: Machine Dimensions And Space Requirements
*4 The Insertion Unit is included. *5 The auxiliary tray is extended. *6 The Square Fold Booklet-Maker Conveyor Tray is fully extended. *7 When the eject tray is extended the depth is 49.2” (1,250 mm). Version 2 imagePRESS C6010 Customer Expectations Document Page 10... -
Page 11: Weight
Perfect Binder-B1 697 lb 316 kg Square Fold Booklet-Maker & Two-Knife 573 lb 260 kg Trimmer *1 Installed inside the optional Finisher-AJ1 or Saddle Finisher-AJ2. *2 Includes the document insertion unit. Version 2 imagePRESS C6010 Customer Expectations Document Page 11... -
Page 12: Installation And Service Space
56”. • At least 44 3/4” (1,135 mm) in width is necessary to negotiate turns prior to installation. • The machine cannot be moved once it is in place. Version 2 imagePRESS C6010 Customer Expectations Document Page 12... -
Page 13: Minimum Space Requirements To Transport The Machine And Turn Hallway Corners
(1,439 mm) Document Insertion 26 1/4” x 24 5/8” 55 5/8” Unit-C1 (667 mm x 625 mm) (1,414 mm) NOTE The Marking Engine, Sub Station, and Power Station Unit are transported separately. Version 2 imagePRESS C6010 Customer Expectations Document Page 13... -
Page 14: Dimensions Diagrams
19.7” in front and on the sides of the machine 45.4” (with all doors and access panels open). Approx. 52.4” Approx. 58.1” Approx. 40.9” Approx. Approx. Approx. Approx. Approx. Approx. Approx. 95.7” 101.8” 36.3” 70.6” 33.9” 33.9” 22.0” Approximately 394” Version 2 imagePRESS C6010 Customer Expectations Document Page 14... -
Page 15: Installation Space Diagrams
[2] Sub Station [4] Finisher-AJ1 The optional High Capacity Stacker-C1 and Paper Deck-AC1 are attached. [1] Marking Engine [4] Paper Deck-AC1 [2] Sub Station [5] High Capacity Stacker-C1 [3] Power Station Unit Version 2 imagePRESS C6010 Customer Expectations Document Page 15... - Page 16 • There is approximately 1/5” (5 mm) of space between each of the following attached accessories: the High Capacity Stacker-C1 or High Capacity Stacker-F1, Perfect Binder-B1, Finisher-AJ1 or Saddle Finisher-AJ2, Booklet Trimmer-D1, and SDD Square Fold Booklet-Maker with Two-Knife Trimmer. Version 2 imagePRESS C6010 Customer Expectations Document Page 16...
-
Page 17: Recommended Floor Space Requirements
3.4 Recommended Floor Space Requirements For a fully configured imagePRESS C6010, it is recommended that there be at least 37.8’ (W) x 10.7’ (D) of level floor space. 37.8’ (11.5 m) IMPORTANT • The imagePRESS C6010 was created to be modular in design. Floor space, budget, monthly copy/print volume, and applications will determine which configuration works best. -
Page 18: Network Interface Connectivity
A USB 2.0 High-Speed interface port ships standard with all configurations for direct connection to centralized environments that want to drive all jobs through a single host PC. Power/Electrical Requirements The imagePRESS C6010 requires a NEMA L14-30 receptacle for the main unit and proper operation. NEMA L14-30 Receptacle Version 2... -
Page 19: Power Requirements For The Main Unit And Optional Accessories
If the optional Integrated Interface & Stand-A1, which includes a furniture stand, monitor, keyboard, and mouse, is installed, an additional 115 V/6 A (NEMA 5-15) receptacle is required for the monitor. The SDD Two-Knife Trimmer provides the SDD Square Fold Booklet-Maker with power. Version 2 imagePRESS C6010 Customer Expectations Document Page 19... - Page 20 A qualified electrician can measure and provide the ground source that the imagePRESS C6010 or any computer controlled office equipment requires. • Before installation, confirm that all necessary receptacles are available.
-
Page 21: Environmental Factors And Requirements
Every effort should be made to maintain consistent temperature and humidity levels in the operating environment at all times for the imagePRESS C6010. Version 2 imagePRESS C6010 Customer Expectations Document... -
Page 22: Ventilation
A professional assessment of the air quality in the room in which the machine is to be installed is recommended prior to its installation. Version 2 imagePRESS C6010 Customer Expectations Document Page 22... -
Page 23: Specifications
(In all cases, at a room temperature of 68°F.) Full Color: 28 seconds Black-and-White : 28 seconds First Copy Time *1 When the Black mode is set. Version 2 imagePRESS C6010 Customer Expectations Document Page 23... - Page 24 (28 lb bond to 63 lb cover (106 to 170 g/m EXEC Approximately 48.4 sheets/minute (63 to 82 lb cover (171 to 220 g/m Approximately 47.0 sheets/minute (82 to 120 lb cover (221 to 325 g/m Version 2 imagePRESS C6010 Customer Expectations Document Page 24...
- Page 25 POD Deck-A1 and Saddle Finisher-AJ2 are attached) Altitude 13,123’ (4,000 m (607.8 hPa)) maximum Temperature while in 68 to 80.6°F (20 to 27°C) Humidity 30 to 70% RH Version 2 imagePRESS C6010 Customer Expectations Document Page 25...
-
Page 26: Color Image Reader-H1
4 1/8” x 28 7/8” x 23 1/2” (105 mm x 732 mm x 595 mm) (excluding the Dimensions (H x W x D)/ document feeder) Weight Approximately 38.5 lb (17.5 kg) (excluding the document feeder) Version 2 imagePRESS C6010 Customer Expectations Document Page 26... -
Page 27: Feeder (Dadf-R1)
Dimensions 5 5/8” x 25 1/2” x 22 1/2” (143 mm x 646 mm x 570 mm) (H x W x D)/Weight Approximately 48.5 lb (22 kg) (excluding the output tray) Version 2 imagePRESS C6010 Customer Expectations Document Page 27... -
Page 28: Pod Deck-A1/Secondary Pod Deck-A1
22 1/2” x 23 5/8” x 24 1/2” (570 mm x 601 mm x 621 mm) Weight Approximately 112.4 lb (51 kg) Installation Space 125 5/8” x 45 3/8” (3,192 mm x 1,152 mm) (W x D) Version 2 imagePRESS C6010 Customer Expectations Document Page 28... -
Page 29: Stack Bypass-A1
Professional Puncher Integration Unit-A1: 130 W Dimensions (H x W x D)/ 41” x 22” x 31 1/2” (1,040 mm x 560 mm x 800 mm) Weight Approximately 258 lb (117 kg) Version 2 imagePRESS C6010 Customer Expectations Document Page 29... -
Page 30: Finisher-Aj1
11” x 17”, LGL: 1,500 sheets (or 8 1/2” (216 mm) in height) Tray B: LTR, LTRR, EXEC: 2,000 sheets (or 11 1/4” (285 mm) in height) 12” x 18”, 11” x 17”, LGL: 1,000 sheets (or 5 3/4” (147 mm) in height) Version 2 imagePRESS C6010 Customer Expectations Document Page 30... - Page 31 11” x 17”, LGL, LTR, LTRR, EXEC: 1,000 sheets/100 sets (or 5 3/4” (147 mm) in height) Tray B: 11” x 17”, LGL, LTR, LTRR, EXEC: 1,000 sheets/100 sets (or 5 3/4” (147 mm) in height) Version 2 imagePRESS C6010 Customer Expectations Document Page 31...
- Page 32 (H x W x D)/Weight *1 When the extension tray is pulled out. Installation Space 175 7/8” x 45 3/8” (4,468 mm x 1,152 mm) (when the optional POD Deck-A1 is (W x D) attached) Version 2 imagePRESS C6010 Customer Expectations Document Page 32...
-
Page 33: Saddle Finisher-Aj2
11” x 17”, LGL: 1,500 sheets (or 8 1/2” (216 mm) in height) Tray B: LTR, LTRR, EXEC: 2,000 sheets (or 11 1/4” (285 mm) in height) 12” x 18”, 11” x 17”, LGL: 1,000 sheets (or 5 3/4” (147 mm) in height) Version 2 imagePRESS C6010 Customer Expectations Document Page 33... - Page 34 11” x 17”, LGL, LTR, LTRR, EXEC: 1,000 sheets/100 sets (or 5 3/4” (147 mm) in height) Tray B: 11” x 17”, LGL, LTR, LTRR, EXEC: 1,000 sheets/100 sets (or 5 3/4” (147 mm) in height) Version 2 imagePRESS C6010 Customer Expectations Document Page 34...
- Page 35 *1 When the auxiliary booklet tray is pulled out. Installation Space 182 5/8” x 45 3/8” (4,638 mm x 1,152 mm) (when the optional POD Deck-A1 is (W x D) attached) Version 2 imagePRESS C6010 Customer Expectations Document Page 35...
-
Page 36: Puncher Unit-Bb1
8 3/8” x 24 5/8” x 26 1/4” (213 mm x 625 mm x 667 mm) Weight Approximately 37.4 lb (17 kg) Installation Space 135 7/8” x 45 3/8” (3,451 mm x 1,152 mm) (W x D) Version 2 imagePRESS C6010 Customer Expectations Document Page 36... -
Page 37: Card Reader-C1
*2 The maximum stack capacity may differ, depending on the content or paper type. The maximum stack capacity is limited to 2,000 sheets when EXEC paper is used. *3 The paper weight may differ, depending on the main machine. Version 2 imagePRESS C6010 Customer Expectations Document Page 37... -
Page 38: High Capacity Stacker-F1
Dimensions (W x D x H) 35.4” x 49.2” x 40.9” (899 mm x 745 mm x 1,250 mm) (When the eject tray is extended) Weight Approximately 264.6 lb (120 kg) Version 2 imagePRESS C6010 Customer Expectations Document Page 38... -
Page 39: Perfect Binder-B1
*3 The paper weight may differ, depending on the main machine. ) or higher. *4 Use grain short paper for the cover if the paper weight is 67 lb bond (251 g/m Version 2 imagePRESS C6010 Customer Expectations Document Page 39... -
Page 40: Booklet Trimmer-D1
*4 The Two-Knife Booklet Trimmer-A1 does not come with a conveyor tray. It can only be used with the optional Booklet Trimmer-D1’s conveyor tray. Therefore, the conveyor capacity is the same as the booklet trimmer’s conveyor tray. Version 2 imagePRESS C6010 Customer Expectations Document Page 40... -
Page 41: Two-Knife Booklet Trimmer-A1
*4 The Two-Knife Booklet Trimmer-A1 does not come with a conveyor tray. It can only be used with the optional Booklet Trimmer-D1’s conveyor tray. Therefore, the conveyor capacity is the same as the booklet trimmer’s conveyor tray. Version 2 imagePRESS C6010 Customer Expectations Document Page 41... -
Page 42: Sdd Square Fold Booklet-Maker With Two-Knife Trimmer
(with the conveyor tray fully extended) Weight Approximately 573 lb (260 kg) *1 If a booklet’s input height is greater than 12.60” (320 mm), it must be trimmed to 12.60” (320 mm) or fewer inches/millimeters. Version 2 imagePRESS C6010 Customer Expectations Document Page 42... -
Page 43: System Options
System Options The functionality of the imagePRESS C6010 can be expanded by installing system related optional accessories. This section describes the system related optional accessories and their functions. 7.1 Color UFR II/PCL/PS Printer Kit-T2 The Color UFR II/PCL/PS Printer Kit-T2 supports three, page description languages. -
Page 44: Imagepress Server A1300
7.2 imagePRESS Server A1300 The imagePRESS Server A1300 is a high-performance controller for the imagePRESS C6010 digital press. The Canon imagePRESS Server A1300 is suited for print for pay that need more color control, image quality, versatility, and reliability. The Canon imagePRESS Server A1300 comes standard with the... -
Page 45: Imagepress Server A2300
7.3 imagePRESS Server A2300 The imagePRESS Server A2300 is a higher-performance controller for the imagePRESS C6010 digital press. The Canon imagePRESS Server A2300 is suited for corporate in-plants, print for pay, and commercial printers that need more color control, image quality, versatility, and reliability. It comes loaded with... -
Page 46: Imagepress Server A3300
3.5 inch, SATA 250 GB x 1, 500 GB x 2 Optical Disk Drive DVD/CD-RW Drive System Software System 10 Supported Communication AppleTalk, TCP/IP (Auto Protocol Switching) Protocols Windows 7 Professional FES (64-bit) Version 2 imagePRESS C6010 Customer Expectations Document Page 46... -
Page 47: Imagepress Cr Server A7000 V2
Interface Ports • 2 x USB on Board • 1 Serial Port Ethernet Ports 2 Ethernet Ports • Windows 2000/XP/Vista/Windows 7/Server 2008 Print Drivers • Macintosh OS X 10.4 or later Version 2 imagePRESS C6010 Customer Expectations Document Page 47... -
Page 48: Imagepress Cr Server A7500
Interface Ports • 2 x USB on Board • 1 Serial Port Ethernet Ports 2 Ethernet Ports • Windows 2000/XP/Vista/Windows 7/Server 2008 Print Drivers • Macintosh OS X 10.4 or later Version 2 imagePRESS C6010 Customer Expectations Document Page 48... -
Page 49: Color Universal Send Kit-G1
The HDD Data Encryption Kit-B9 is a tool that enables the user to encrypt all of the data stored on the hard disk of the machine. This prevents encrypted hard disk data that is extracted from the machine from being read. Version 2 imagePRESS C6010 Customer Expectations Document Page 49... -
Page 50: Data Erase Kit-C1
The Access Management System Kit-B1 enables the administrator to assign users and user groups access restrictions to entire or specific machine functions. The Access Management System works with the SSO (Single Sign-On) login service. Version 2 imagePRESS C6010 Customer Expectations Document Page 50... -
Page 51: Removable Hdd Kit
• System Accessory Attachment Kit-A1 7.20 Notes on the Hard Disk The imagePRESS C6010 has two hard disks to realize high-speed data transfer by striping – a set of data is divided and written onto both hard disks simultaneously. When turning the machine OFF, make sure to use the Control Panel Power Switch on the operating console. -
Page 52: Installation Review
8.1 Installation Time The time required to install the imagePRESS C6010 depends on the options and accessories to be installed, and the number of technicians performing the installation. Customers should discuss the time requirements with their servicing dealer and schedule the installation accordingly. -
Page 53: Customer Responsibilities
30% to 70% Optimal Performance Range Per Month 30,000 to 150,000 Image Ratio 48% total: 12% each color *1 Based on 28 lb LTR size paper, and under the above optimal environmental conditions. Version 2 imagePRESS C6010 Customer Expectations Document Page 53... -
Page 54: Consumable Parts
Therefore, consumable parts do not have a warranty, and Canon U.S.A., Inc. cannot guarantee a minimum life. 10.1.1 Estimated Life of Consumables The table below states the estimated life expectancy yields based on LTR size paper. -
Page 55: Toner Container And Hopper Unit Yields
• If the machine is maintained and serviced by a Canon authorized service technician • If only Genuine Canon service and consumable parts are used... -
Page 56: Machine Reliability And Service Call Ratio
The actual CBV may vary, depending on the MCV (Monthly Copy Volume), large paper ratio, and service required. *6 The Visit Ratio is the estimated number of service visits per month. Version 2 imagePRESS C6010 Customer Expectations Document Page 56... -
Page 57: Optimum Monthly Product Performance
IMPORTANT If the machine consistently runs at or above the upper end of the optimum PCV, consider purchasing additional machines or higher volume machines. Version 2 imagePRESS C6010 Customer Expectations Document Page 57... -
Page 58: Machine Productivity
This chapter describes the productivity of the imagePRESS C6010. 15.1 Print Speed The print speed of the imagePRESS C6010 is best when a standard paper type is selected. The table below describes the printing speeds one should expect when printing one- or two-sided documents on the indicated paper size and type. - Page 59 − If tab paper and other paper types are used at the same time. − If paper whose length of the feeding direction is 18” (457.2 mm) or more is used, while creating a saddle stitched booklet. Version 2 imagePRESS C6010 Customer Expectations Document Page 59...
-
Page 60: Mixed Media Productivity
15.2 Mixed Media Productivity The imagePRESS C6010 is capable of processing jobs that contain mixed media; however, the machine’s productivity may be reduced if one or more of the following print conditions occur during a job run: • Using paper with different paper weights •... -
Page 61: Paper, Toner, And Waste Toner Replacement
Similar to the paper, the toner bottle may be removed and replaced while a job is printing. The imagePRESS C6010 has a large toner hopper, making it possible for the digital press to run much longer with no bottle. The operator is not required to replace the bottle immediately after removing the old bottle. -
Page 62: Media Characteristics By Media Library Parameters
Specify how to adjust the position of the punch holes. Specify how to adjust the amount of toner applied on the tail Tail End White Patch Correct. end of the paper. Version 2 imagePRESS C6010 Customer Expectations Document Page 62... -
Page 63: Paper Handling And Storage
Make sure to put the paper on a flat table to use the abrasive, and move the abrasive perpendicular to the paper approximately three times. Version 2 imagePRESS C6010 Customer Expectations Document Page 63... -
Page 64: Selecting The Correct Media
• Problems Caused by Paper Curl • Storing/Editing Irregular Paper Types • Acceptable Paper Type List To obtain the Specialty Media Handling Guide for the imagePRESS C6010, please contact a local authorized Canon dealer. Version 2 imagePRESS C6010 Customer Expectations Document... -
Page 65: Paper Grain And Curl
Paper grain and curl can dramatically affect the reliability of machines utilizing an electrostatic process like the imagePRESS C6010. Paper used in an offset press is usually cut for short edge feeding. This type of paper is not as reliable as paper made for machines utilizing an electrostatic process, which is cut for long edge feeding. -
Page 66: Note For Customers Who Cut Their Own Paper
16.6 Media Feed Locations As with all Canon copiers, certain feed locations within the device are capable of feeding specific media sizes and weights. When considering media, make sure the media is within the proper size and weight parameters of the feed locations. - Page 67 (106 to 128 *1 Use of 100% recycled paper is acceptable. *2 If the stack bypass is being used, feed one sheet of paper at a time. Version 2 imagePRESS C6010 Customer Expectations Document Page 67...
- Page 68 (181 to 209 2-Sided Coated 6 (210 to 256 *2 If the stack bypass is being used, feed one sheet of paper at a time. Version 2 imagePRESS C6010 Customer Expectations Document Page 68...
- Page 69 *2 If the stack bypass is being used, feed one sheet of paper at a time. *3 Use only LTR transparencies made especially for machines which use the electrostatic process to transfer images. *4 Use the optional Tab Feeding Attachment-C1 when loading tab paper. Version 2 imagePRESS C6010 Customer Expectations Document Page 69...
-
Page 70: Paper Sizes And Feed Location Chart
487.7 mm) *1 Only the irregular size (7 1/8” x 7 1/8” to 11 11/16” x 13” (182 mm x 182 mm to 297 mm x 330.2 mm) can be loaded. Version 2 imagePRESS C6010 Customer Expectations Document Page 70... -
Page 71: Customer-Defined Image Quality Adjustments And Recommendations
Best Practices: While working, Color Management needs to be implemented with consistency. This, along with a stable environment and a well-maintained digital press, will make the customer’s ability to achieve color reproducibility more efficient. Discipline and consistency are the keys. Version 2 imagePRESS C6010 Customer Expectations Document Page 71... -
Page 72: Device Management Settings
IMPORTANT A decrease in productivity may occur if a job contains different paper thicknesses or types. Productivity may be improved by setting the Fixing Temperature Mode Switch mode to ‘Productivity Priority’. Version 2 imagePRESS C6010 Customer Expectations Document Page 72... -
Page 73: Paper Type Management Settings
*2 These settings are available when custom paper is registered, and do not have to be enabled by a service technician. *3 These settings must be enabled by a service technician. Version 2 imagePRESS C6010 Customer Expectations Document Page 73... -
Page 74: Responsibility Matrix
*1 For more information, see Chapter 6, “System Manager Settings,” in the Reference Guide included with the machine. Primary customer applications for using this equipment: Special considerations or performance limitations: I have received a copy of this document. Customer: Sales Person: Version 2 imagePRESS C6010 Customer Expectations Document Page 74...
