Owner's Manual
Important–
Save for local electrical inspector's use.
•
Remove all packing and printed material
packed with the cooktop.
•
Slide the cooktop out of the box.
•
To avoid any damage, do not slide the
cooktop across a countertop.
Advertisement
Related Manuals for Amana AKT3040
Summary of Contents for Amana AKT3040

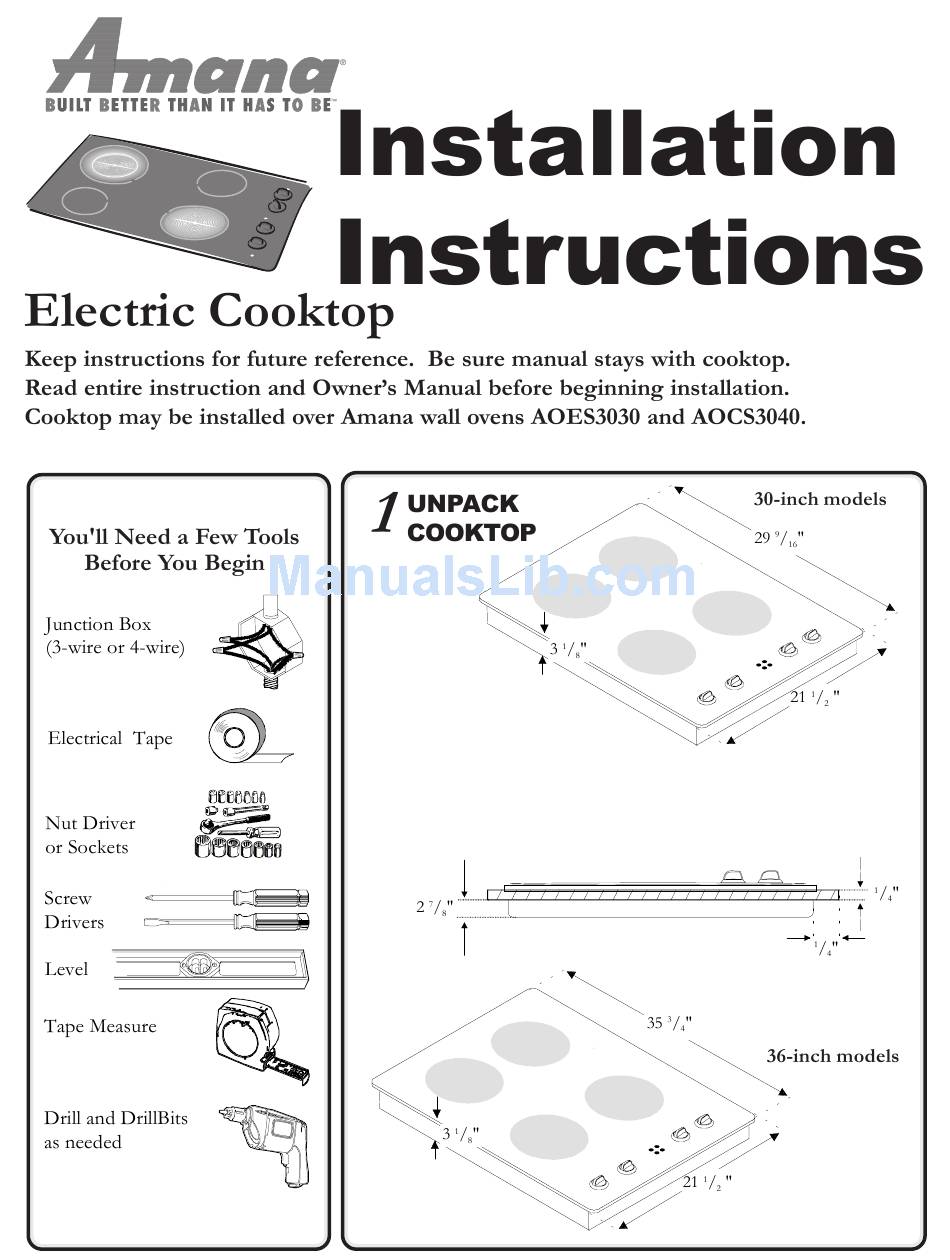

- Page 1 Important– Save for local electrical inspector’s use. • Remove all packing and printed material packed with the cooktop. • Slide the cooktop out of the box. • To avoid any damage, do not slide the cooktop across a countertop.
- Page 2 3. Follow all safety guidelines provided. 4. Obey all local codes and ordinances for electrical connections and power supply. 5. Contact Amana with any questions, concerns or comments about the installation. Cooktop can be installed with glasstop resting on the countertop or with the glasstop recessed into the countertop.
-
Page 3: Wire Installation
Cooktop has approximately 36 inches of flexible wire conduit attached to bottom of cooktop. Approximately 6 inches of green or bare ground wire and 3 insulated wires: black, red and white, extend beyond end of conduit. Conduit lies directly below controls. If the cooktop is installed with the controls on the left side, the conduit will be on the bottom left. - Page 4 Follow connector manufacturer’s recommendations closely. • do not ground through neutral wire if installed in mobile home or if local codes do not permit grounding through neutral wire. 2000 Amana Appliances Amana, Iowa 52204...
- Page 5 Consider Description Location To eliminate the risk of burns or fire by reaching over heated surface elements, cabinet storage space located above the surface elements should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets.
- Page 6 Cooktops may be installed over the Amana AOES3030 and the Amana AOCS3040 wall ovens only. The following instructions are not for a recessed (inlaid) cooktop installation over a wall oven. To ensure proper installation and safety, these installation instructions must be followed exactly.
