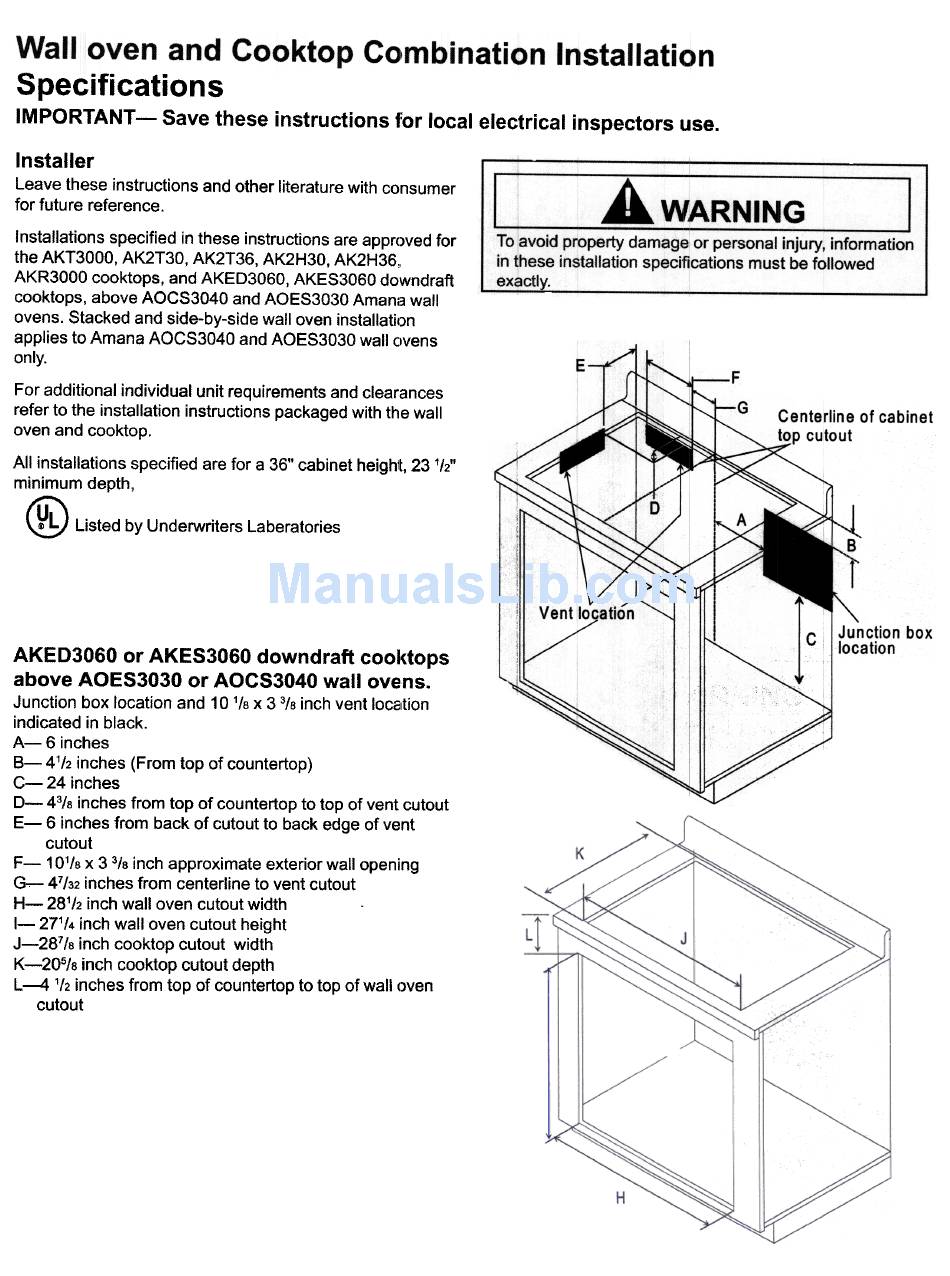

Amana AKT3000 Installation Instructions

Installer
Leave these instructions and other literature with consumer
for future reference.
Installations specified in these instructions are approved for
the AKT3000, AK2T30, AK2T36, AK2H30, AK2H36,
AKR3000 cooktops, and AKED3060, AKES3060 downdraft
cooktops, above AOCS3040 and AOES3030 Amana wall
ovens. Stacked and side-by-side wall oven installation
applies to Amana AOCS3040 and AOES3030 wall ovens
only.
For additional individual unit requirements and clearances
refer to the installation instructions packaged with the wall
oven and cooktop.
All installations specified are for a 36" cabinet heighlt, 23 1/2"
minimum depth,
@ Listed by Underwriters Laberatories
AKED3060 or AKES3060 downdraft cooldops
above AOES3030 or AOCS3040 wall ovens.
Junction box location and 10118 X 3 3/8 inch vent IOc81tion
indicated in black.
A- 6 inches
B- 41/2 inches (From top of countertop)
C- 24 inches
D- 43/8 inches from top of countertop to top of vent cutout
E- 6 inches from back of cutout to back edge of vent
cutout
F- 10118 X 3 318 inch approximate exterior wall opening
G- 47/32 inches from centerline to vent cutout
H- 281/2 inch wall oven cutout width
1- 271/4 inch wall oven cutout height
J-287/8 inch cooktop cutout width
K-205/8 inch cooktop cutout depth
L--4 1/2 inches from top of countertop to top of wall oven
cutout
Specifications
IMPORTANT-Save these instructions t:or local electrical inspectors use.
