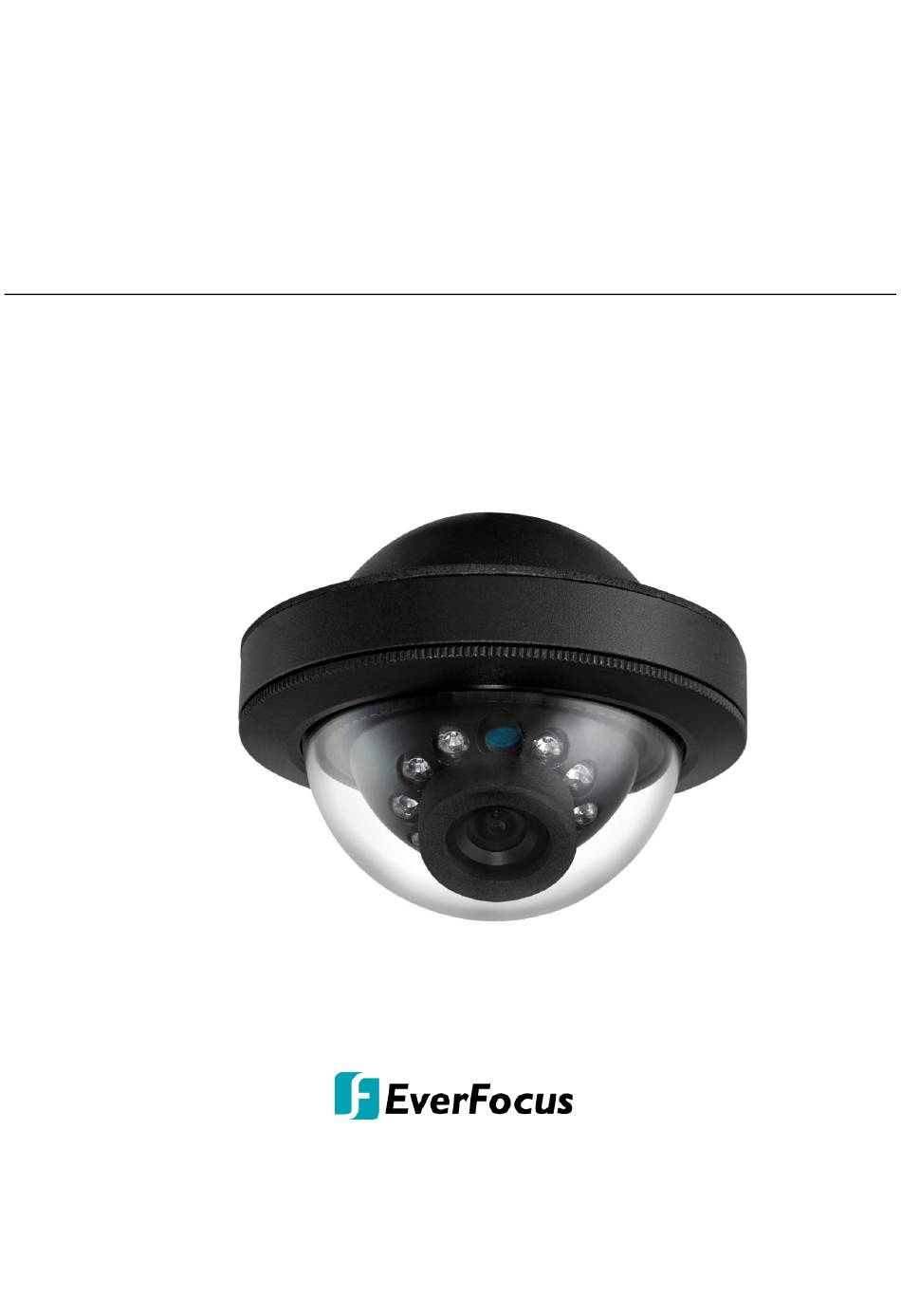

- Page 1 EMB935F 1080p Full HD True Day / Night Outdoor IP67 Mobile IR Mini Vandal Dome Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: May, 2018...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
-
Page 3: Safety Notice
This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. - Page 4 EMB935F Outdoor Mobile IR Mini Dome Camera 1. Introduction 1.1 Packing List Camera Body x 1 Hexagon Wrench x1 User Manual x 1 Bottom Bracket x 1 ( order separately Mounting Screw x 4 1.2 Features 1080p Full HD with high flexibility and performance for astounding image ...
-
Page 5: Cable Description
EMB935F Outdoor Mobile IR Mini Dome Camera 2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source. 1080p, 720p and 960H output, using a 75 Ohm BNC-type Video Output coaxial cable. -
Page 6: Installation And Adjustment
EMB935F Outdoor Mobile IR Mini Dome Camera 3. Installation 3.1 Installation and Adjustment Loosen the lock screw using the supplied hexagon wrench (Fig.1) and remove the top cover by rotating counter-clockwise (Fig.2). A. Flush Mounting: Drill the big hole (Φ56mm) on the position where you want to install the camera, then put the body into the hole and secure the camera using the supplied four mounting screws. - Page 7 EMB935F Outdoor Mobile IR Mini Dome Camera Attach the bottom bracket to the wall or ceiling, secure it using the supplied three screws. Fasten the camera body to the bottom bracket using the supplied four screws. Connect the camera to the 12VDC power source while connecting the video-out cable to the monitor.
-
Page 8: Specifications
EMB935F Outdoor Mobile IR Mini Dome Camera 4. Specifications EMB935F Pickup Device 1080p Sony CMOS sensor Video Format NTSC and PAL(can be switched via OSD) Effective Pixels 1920 (H)x1080(V) Scanning System Progressive Scan Sensitivity 0 lux with IR on Electronic Shutter... - Page 9 EMB935F Outdoor Mobile IR Mini Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, New Taipei City, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940...
