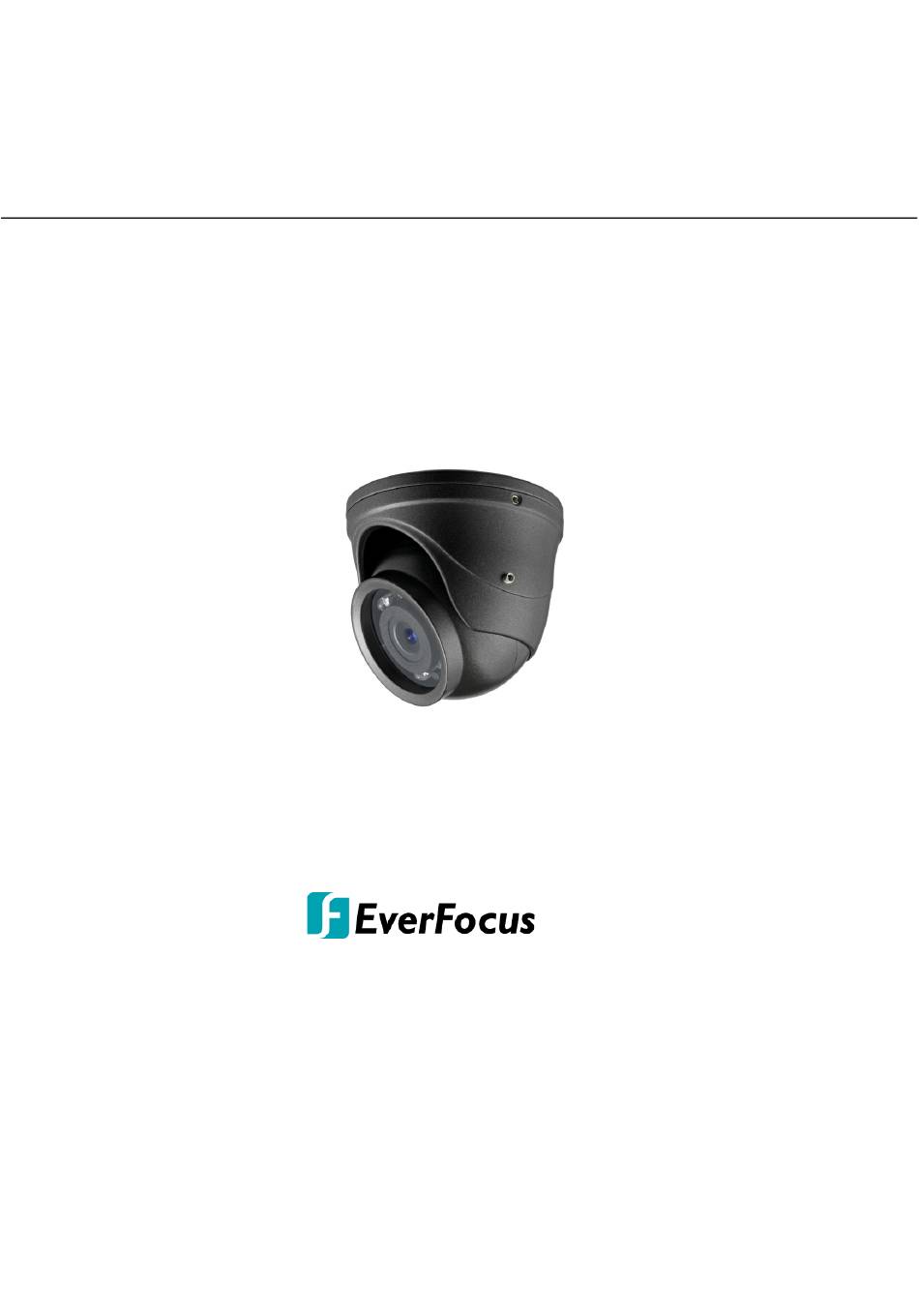

EMD990F
1080p FHD Mobile IR Mini Dome Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: December, 2018
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to change
without notice.
Advertisement
Table of Contents
Related Manuals for EverFocus EMD990F
Summary of Contents for EverFocus EMD990F
- Page 1 EMD990F 1080p FHD Mobile IR Mini Dome Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: December, 2018 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this document is subject to change...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
-
Page 3: Safety Notice
Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Cable Description
The EMD990F supports both NTSC and PAL scanning systems and is IP68 certified. The 6 IR LEDs enable night vision up to 10m (~33ft.). EMD990F is the ideal solution for your mobile surveillance needs. -
Page 5: Installation
3. Installation 3.1 Installation and Adjustment Stick the supplied Installation Sticker on the position where you want to mount the camera. Drill three holes through the marks on the Installation Sticker and insert the supplied three Anchors. Drill another hole within the area of the Installation Sticker only if you want to wire the cables through the surface. - Page 6 Screw the camera base plate to the surface using the supplied three Screws. Screw the camera body back to the base plate using the supplied Hexagon Wrench. You can wire the cables from the side of camera, or through the surface. Please see the image below.
- Page 7 Connect the camera to the 12VDC power source using the supplied DC Power Pigtail Cable or power adapter. Connect the video-out cable to the monitor. Adjust the camera angle by rotating the camera body. After adjusting the camera angle, tighten the two screws on both sides of the camera using the supplied Hexagon Wrench. Camera Body Screw Screw...
-
Page 8: Configuration In The Osd Menu
4. Configuration in the OSD Menu You can configure camera settings in the OSD menu from DVR end. OSD menu structure is listed on the below table: No. Main Sub Menu Sub Menu / Function Lens Manual NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto Shutter PAL: 1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000,... - Page 9 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(CDS) 1-255 D→N(Delay) 0-60 Auto N→D(CDS 1-255 Day & N→D(Delay) 0-60 Night Color Burst Off/On IR Smart Level 0-15 Area Position, Size,↑,↓,→,← 2DNR Middle/Low/Off/High 3DNR Middle/Low/Off/High Cam Title 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ▶→ ←↑↓()ˉ-_▊/=&:~,. Freeze Off/On D-effect Mirror Off, Mirror, V-flip, Rotate Neg.
- Page 10 White, Black, Red, Blue, CYAN, Yellow, Color Green, User 1.00,0.75,0.50, Trans 0.25 Default ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/KOR/ Language JPN/HEB/ARB Live DPC AGC level 0-255 Level 0-100 Pos/Size Position, Size,↑,↓,→,← Start Close the iris then press DPC View Off/On White DPC Level 0-60 Defect 0-14 x2, x4, x6, x8,x10, x15, x20, Sens-up...
-
Page 11: Specification
5. Specification Model Name EMD990F Pickup Device 1080p Sony Starvis CMOS sensor Video Format NTSC / PAL Effective Pixels 1920 (H) x 1080 (V) Scanning System Progressive Scan Sensitivity 0 Lux with IR On Electronic Shutter Auto / Manual (x30 ~ 1/50,000) Gamma Correction 0.45 ~ 100... - Page 12 91010, USA TEL: +1 626 844 8888 FAX: +1 626 844 8838 www.everfocus.com sales@everfocus.com Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
