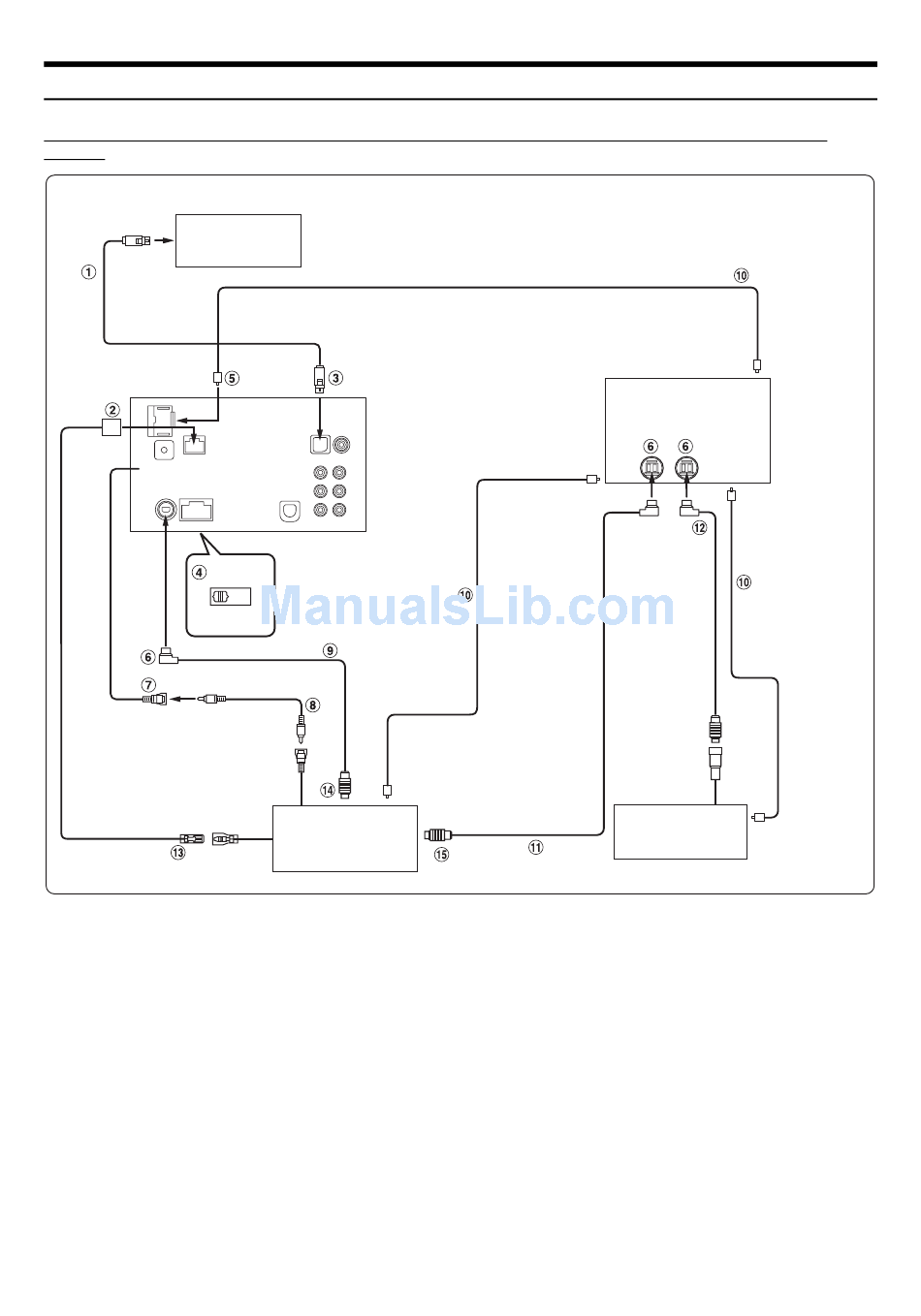

System Example

Connect the Ai-NET compatible audio processor (Fiber digital compatible), Navigation system, DVD player and
changer.
NVE-N852A/NVE-N871A/NVE-N872A
Navigation system
(Sold Separately)
Ai-NET
EQ/DIV
(White/Brown)
(White/Brown)
REMOTE OUT
REMOTE IN
• When the fiber optic compatible product is connected, it is necessary to set the mode of this unit. Refer to "Setting the Digital Output" (page 35)
and set to ON.
• When the NVA-N751AS is connected for the Navigation System, use the RGB conversion cable KWE-503N (Sold separately).
Please observe the following when using Fiber Optic Cable.
• Do not coil the Fiber Optic Cable smaller than a 30 mm radius.
• Do not place anything on top of the Fiber Optic Cable.
• Be careful not to bend the Fiber Optic Cable at a sharp angle.
72
-EN
Fiber optic cable
NORM
Ai-NET cable
(Yellow)
DVD Video Player
(Ai-NET)
(DVA-5210 etc.)
(Sold Separately)
Fiber optic cable
Fiber digital Input terminal
(for head unit)
Audio Processor (Ai-NET)
(Fiber Digital compatible)
(Sold Separately)
Fiber digital
Input terminal
(for DVD
Player)
CD Changer
Ai-NET cable
(Ai-NET)
(Sold Separately)
*Only connect fiber digital compatible CD Changer
Fiber digital
Input terminal
(for Changer)
Ai-NET
cable
*Fiber
optic cable
