20 C 2: 56K LAN M
HAPTER
F D
ODEM UNCTIONALITY ESCRIPTION
10 Mbps
Ethernet LAN

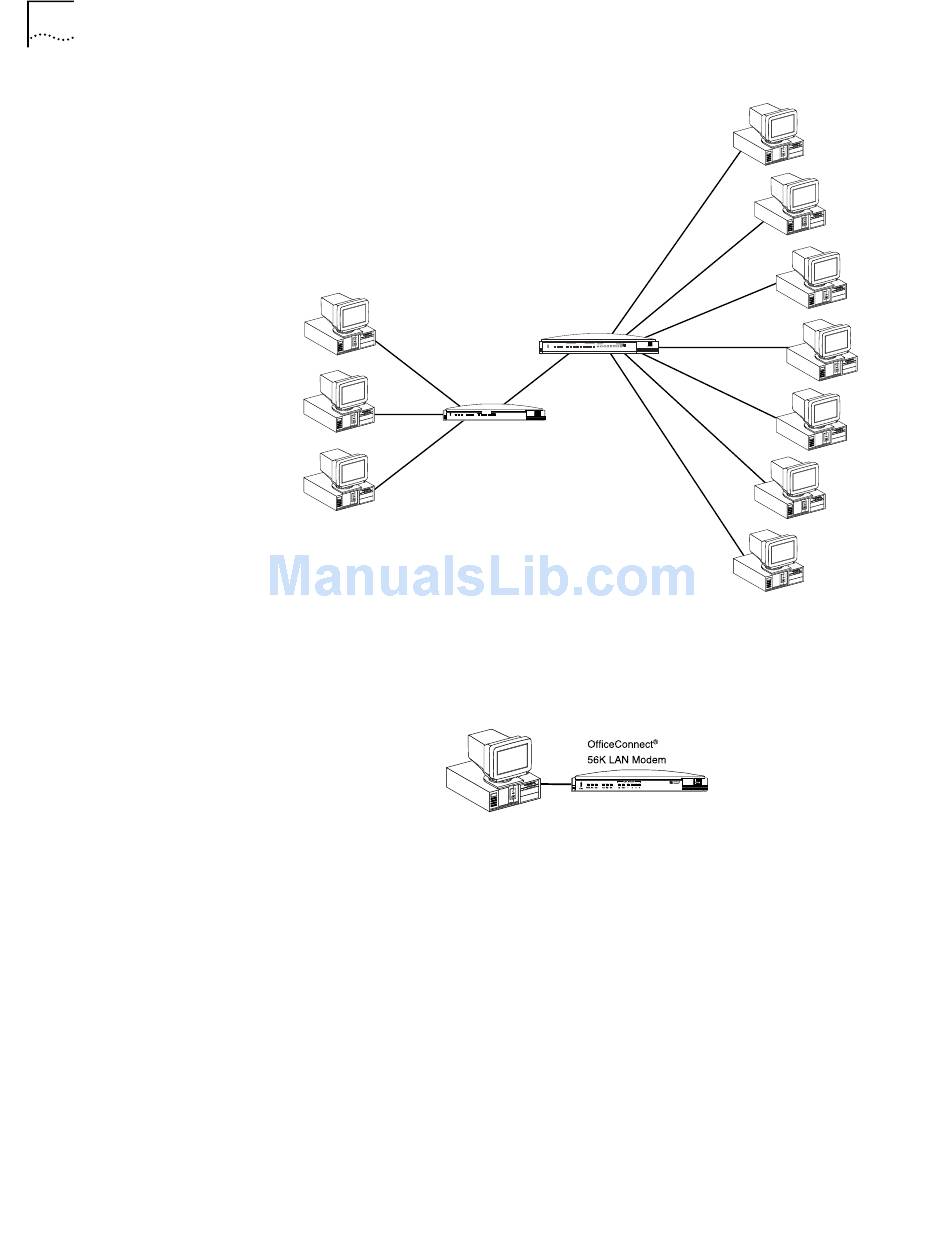

Figure 3 56K LAN Modem Ten Workstation Connection Example
An example of the minimum number of connections is shown in Figure 4.
Figure 4 56K LAN Modem Minimum Connection Example

Application Sharing over the LAN

Most operating systems such as Windows 95, 98 and MacOS provide the
capability for LAN users to share applications, files and printers between
computers. For example, if only one computer has a Web browser, other LAN
users may share the browser for accessing the Internet. Note that speed will likely
be reduced when sharing applications. Refer to your operating system
documentation for instructions on setting up sharing between users on a LAN.
OfficeConnect
Hub 8 TPO
Port Status Network Utilization Office
Connect
PWR PKT COLL 1 2 3 4 5 6 7 8 COAX 1% 2% 3% 6% 12% 25% 50% 80%
Hub
Alert green = link OK, off = link fail, yellow = partition
LAN STATUS
OfficeConnect® 3 Com
Alert PWR AA CD RD SD OH Tx Coll 1 2 3 4 56K LAN Modem
OfficeConnect
56KLAN Modem
3 Com
¨
3C886
56K LAN Modem
