Installation Guide

Starting The Installation
WARNING: Windows NT users must install the PCI card before installing the software. If you are
running Windows NT, do not proceed until you have installed the PCI Card in an available PCI slot.
If you are running Windows 95/98/Me/2000 you must install the software before installing the PCI
card. To begin the software installation, place the 3Com HomeConnect ADSL PCI Installation

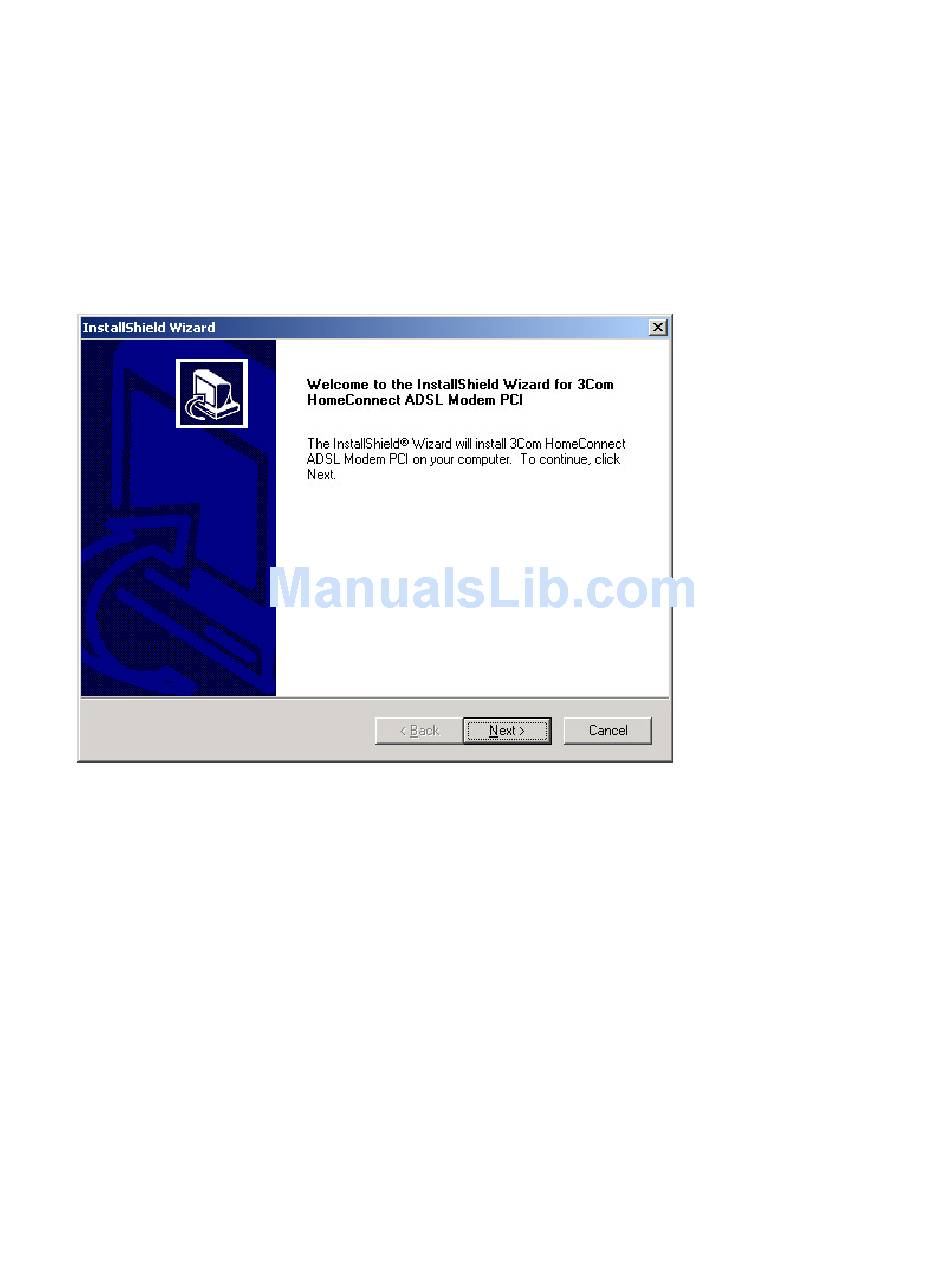

CD-ROM in the CD-ROM drive. The setup program should automatically start. The software
interview for all operating systems has the same look as the screen below. If the installation does
not launch automatically, click Start, Run, and then type d:\setup.exe, where d stands for the
letter of the CD-ROM drive.
Upon seeing this screen, click Next.
Installing Dial-up Networking
xIn Windows 95, 98 and Me, if the Dial-up Networking function hasn't already been installed on
your computer, you will be prompted to install it. The prompts will look a little different in each
operating system.
In Windows 95, the first screen will ask if you want to install Dial-up Networking. Click to
accept and you will see a screen similar to the screen used in Windows 98 and Me,
which allows you to initiate the Windows procedure to complete the installation. Click
Finish. Windows 95 will install Dial-up Networking. Windows 98 or Me will launch the
"Windows Add/Remove Programs" applet. Select the Windows Setup tab, then double
click the word Communications. This will open the "Communications" screen.
CAUTION: Do not remove the check mark next to the word "Communications" and do not click
OK.
In the "Communications" screen, check the Dial-up Networking box by clicking to the left
of the "Dial-up Networking" icon, then click OK. Click Apply, then click OK when the
message reminding you to reboot appears. Finally, click OK to exit. Reboot in order to
establish the correct entries in the Windows registry. If the program doesn't resume
automatically, just reinsert your CD-ROM and the install procedure will recommence. You
will find that the Dial-up Networking capability has been installed.

Advertisement

loading

Related Manuals for 3Com 3CP3617B

Summary of Contents for 3Com 3CP3617B

  • Page 1: Installation Guide

    If you are running Windows 95/98/Me/2000 you must install the software before installing the PCI card. To begin the software installation, place the 3Com HomeConnect ADSL PCI Installation CD-ROM in the CD-ROM drive. The setup program should automatically start. The software interview for all operating systems has the same look as the screen below.
  • Page 2 Selecting The Service Provider Select the service provider from a list, as the graphic below indicates. Click Next to continue. NOTE: If you chose Bell South Fast Access and Internet Service, you will be prompted to choose between “PPP over ATM” and “Ethernet (Bridge) PPP over Ethernet.” Choose the one recommended by your service provider, then click OK.
  • Page 3 Choose the correct setting, then click Next to continue. VPI and VCI Values PPP over ATM VPI/VCI Values Since you chose Custom and the “Dial-Up Networking Name” is Other, then you will have to enter the correct VPI and VCI values. Click Next to continue.
  • Page 4 PPP over Ethernet VPI/VCI Values Enter the VPI and VCI values recommended by your service provider. Click Next to continue. Selecting the Destination for ADSL Files/Control Center The required files and software will be copied to the local hard disk to the designated location. Click Next.
  • Page 5 Click Next to add program icons to the Accessories program folder. Finishing the Software Install You will be prompted to confirm the settings prior to copying files. The confirmation information will vary depending on the connection method (PPP over Ethernet versus PPP over ATM). This final confirmation allows the customer to ensure their selections are correct prior to completing the install.
  • Page 6 Settings for Ethernet Bridge/PPP Over Ethernet Click Next if you see this screen and all information is correct. If the “Destination Location” or “Program Folders” is incorrect, click Back and make the necessary corrections. If any of the other settings are incorrect, click Back to the “Who is your Internet Service Provider?” screen. Choose the correct Internet service provider, or choose Custom and enter the correct settings for your system.

  • Page 7: Installing The Hardware

    Establishing A Connection Once the 3Com software and hardware have been installed properly and there is a connection to the live DSL line, you should see a green light in the Quick View icon. NOTE: Quick View indicates the status of the DSL connection. It is located on the system tray which is...
  • Page 8 Customers using the PPP over Ethernet mode will require the installation of service provider software to establish the connection. Install this software as designated by the service provider. Dial-up software may be required, as designated by the connection method chosen. Use a browser to validate the connection.
