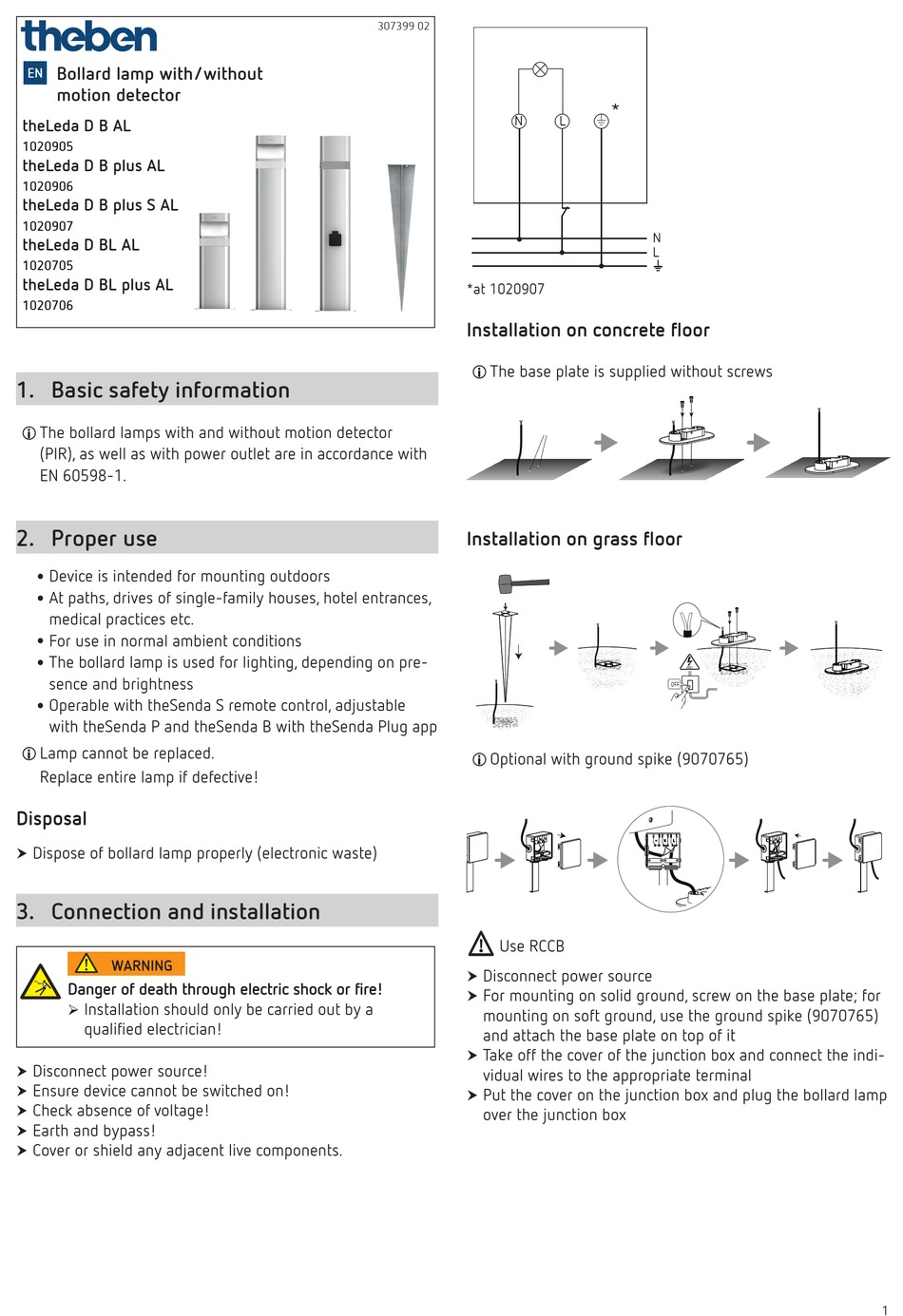

Bollard lamp with/without
EN
motion detector
theLeda D B AL
1020905
theLeda D B plus AL
1020906

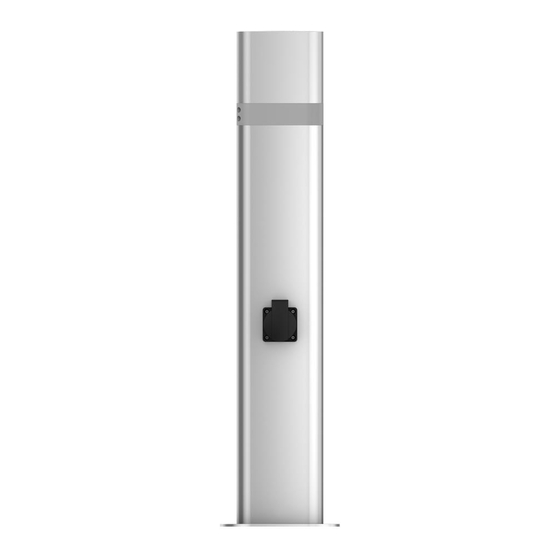

theLeda D B plus S AL
1020907
theLeda D BL AL
1020705
theLeda D BL plus AL
1020706
1. Basic safety information
L The bollard lamps with and without motion detector
(PIR), as well as with power outlet are in accordance with
EN 60598-1.
2. Proper use
•
Device is intended for mounting outdoors
•
At paths, drives of single-family houses, hotel entrances,
medical practices etc.
•
For use in normal ambient conditions
•
The bollard lamp is used for lighting, depending on pre-
sence and brightness
•
Operable with theSenda S remote control, adjustable
with theSenda P and theSenda B with theSenda Plug app
L Lamp cannot be replaced.
Replace entire lamp if defective!
Disposal
Dispose of bollard lamp properly (electronic waste)
†
3. Connection and installation
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a
qualifi ed electrician!
Disconnect power source!
†
Ensure device cannot be switched on!
†
Check absence of voltage!
†
Earth and bypass!
†
Cover or shield any adjacent live components.
†
307399 02
N
*at 1020907
Installation on concrete fl oor
L The base plate is supplied without screws
Installation on grass fl oor
L Optional with ground spike (9070765)
!
Use RCCB
Disconnect power source
†
For mounting on solid ground, screw on the base plate; for
†
mounting on soft ground, use the ground spike (9070765)
and attach the base plate on top of it
Take off the cover of the junction box and connect the indi-
†
vidual wires to the appropriate terminal
Put the cover on the junction box and plug the bollard lamp
†
over the junction box
*
L
N
L
230V
0FF
1
