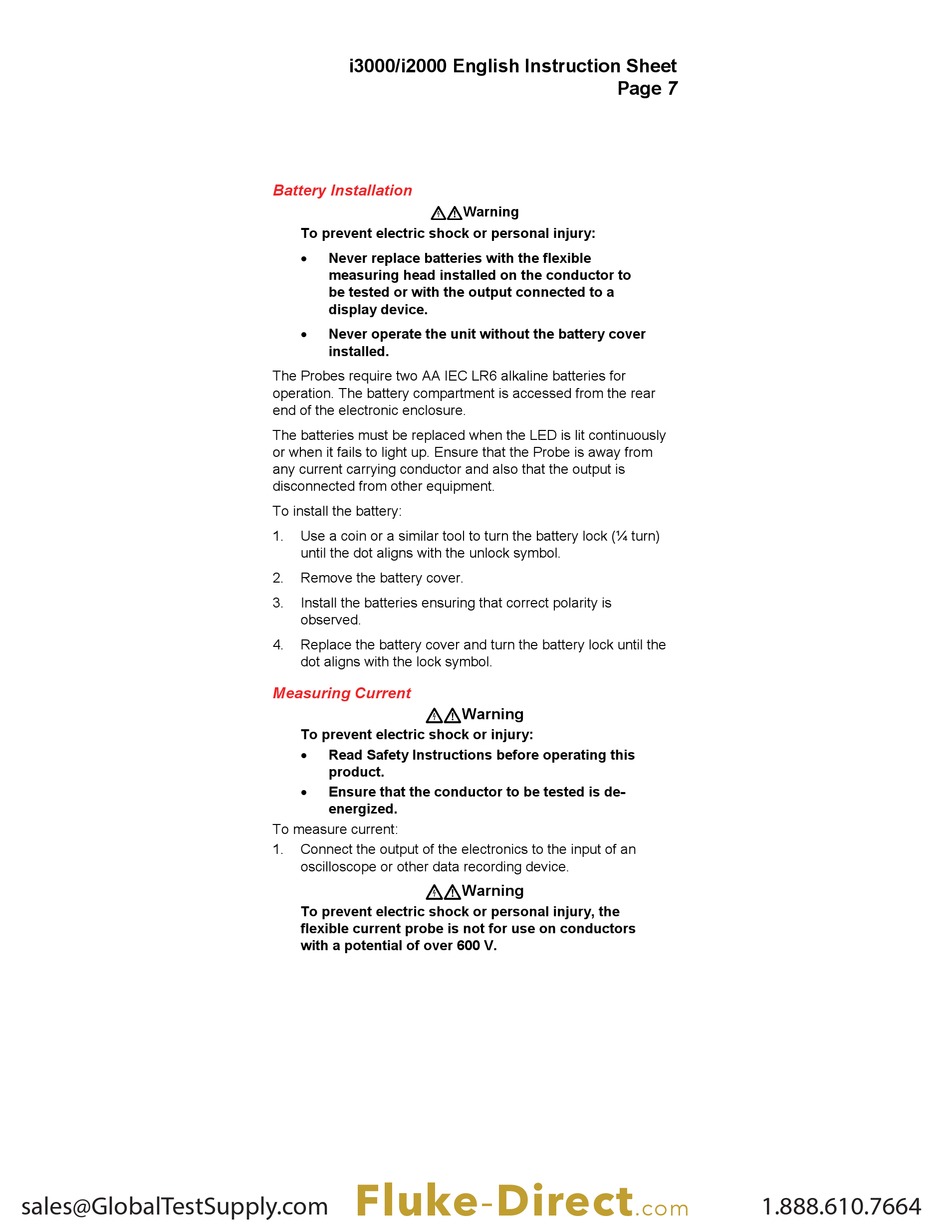

i3000/i2000 English Instruction Sheet

Battery Installation

Warning
To prevent electric shock or personal injury:
Never replace batteries with the flexible
•
measuring head installed on the conductor to
be tested or with the output connected to a
display device.
• Never operate the unit without the battery cover
installed.
The Probes require two AA IEC LR6 alkaline batteries for
operation. The battery compartment is accessed from the rear
end of the electronic enclosure.
The batteries must be replaced when the LED is lit continuously
or when it fails to light up. Ensure that the Probe is away from
any current carrying conductor and also that the output is
disconnected from other equipment.
To install the battery:
1. Use a coin or a similar tool to turn the battery lock (¼ turn)
until the dot aligns with the unlock symbol.
2. Remove the battery cover.
3. Install the batteries ensuring that correct polarity is
observed.
4. Replace the battery cover and turn the battery lock until the
dot aligns with the lock symbol.

Measuring Current

Warning
To prevent electric shock or injury:
• Read Safety Instructions before operating this
product.
Ensure that the conductor to be tested is de-
•
energized.
To measure current:
1. Connect the output of the electronics to the input of an
oscilloscope or other data recording device.
Warning
To prevent electric shock or personal injury, the
flexible current probe is not for use on conductors
with a potential of over 600 V.
