Interlogix RF711I4 Installation Sheet

RF711I4 Flood and Freeze Sensor 433 MHz
Installation Sheet
EN
1. Side
3. Bottom
EN: Installation Sheet
Enrolling
To enroll the sensor, set your panel into program mode. Then
go to the Learn Sensors menu. Refer to your specific alarm
panel instruction manual for details on these menus. On the
RF711I4, locate the vertical line on the side of the sensor. You
will need a magnet (not included) to initiate a transmission from
the sensor.
1. To learn in as a flood sensor, swipe a magnet 3 times next
to the sensor at the point indicated by the line. Then select
the appropriate sensor group and number. The flood
sensor uses the serial number printed on the back of the
device.
© 2017 UTC Fire & Security Americas Corporation, Inc.

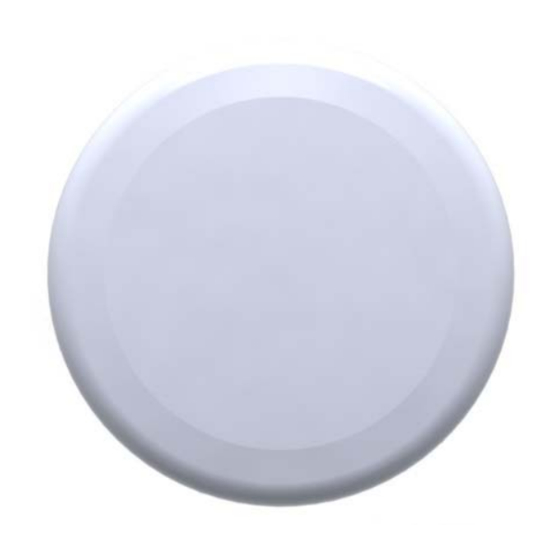

2. Top
4. Bracket
2. To learn the freeze sensor, swipe a magnet 4 times next
to the sensor at the point indicated by the line. Then select
the appropriate sensor group and number.
Operation
The RF711I4 flood sensor is designed to detect water across
the gold probes and will alert immediately when present. The
freeze sensor will trigger when the temperature is below 5°C
(41°F) and will send a restoral at 7°C (45°F).
Placement
Place the sensor anywhere that you wish to detect water
and/or freezing temperatures, such as under a sink, near a hot
water heater, in a basement or behind a washing machine.
Determine this location is suitable for the sensor by following
the procedure in the section "Testing the Sensor" ensuring
1 / 2 P/N 466-5253 • REV B • ISS 08MAY17
