Interlogix RF711I4 Installation Sheet

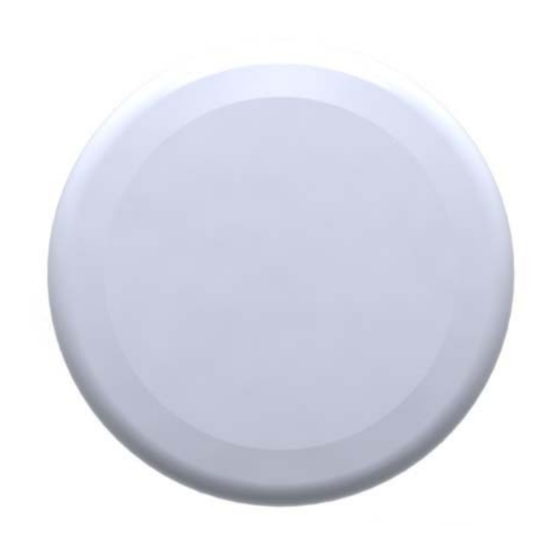

RF711I4 Flood and Freeze Sensor 433 MHz
Installation Sheet
EN DE ES FR IT NL PL PT SV
1.
3.
EN: Installation Sheet
Description
Figure Description
1. Side
2. Top
3. Bottom
4. Bracket
Enrolling
To enroll the sensor, set your panel into program mode. Then
go to the Learn Sensors menu. Refer to your specific alarm
panel instruction manual for details on these menus. On the
© 2019 UTC Fire & Security Americas Corporation, Inc.
2.
4.
RF711I4, locate the vertical line on the side of the sensor. You
will need a magnet (not included) to initiate a transmission from
the sensor.
1. To learn in as a flood sensor, swipe a magnet 3 times next
to the sensor at the point indicated by the line. Then select
the appropriate sensor group and number. The flood
sensor uses the serial number printed on the back of the
device.
2. To learn the freeze sensor, swipe a magnet 4 times next
to the sensor at the point indicated by the line. Then select
the appropriate sensor group and number.
Operation
The RF711I4 flood sensor is designed to detect water across
the gold probes and will alert immediately when present. The
1 / 14
P/N 466-5253 • REV F • ISS 21MAR19
