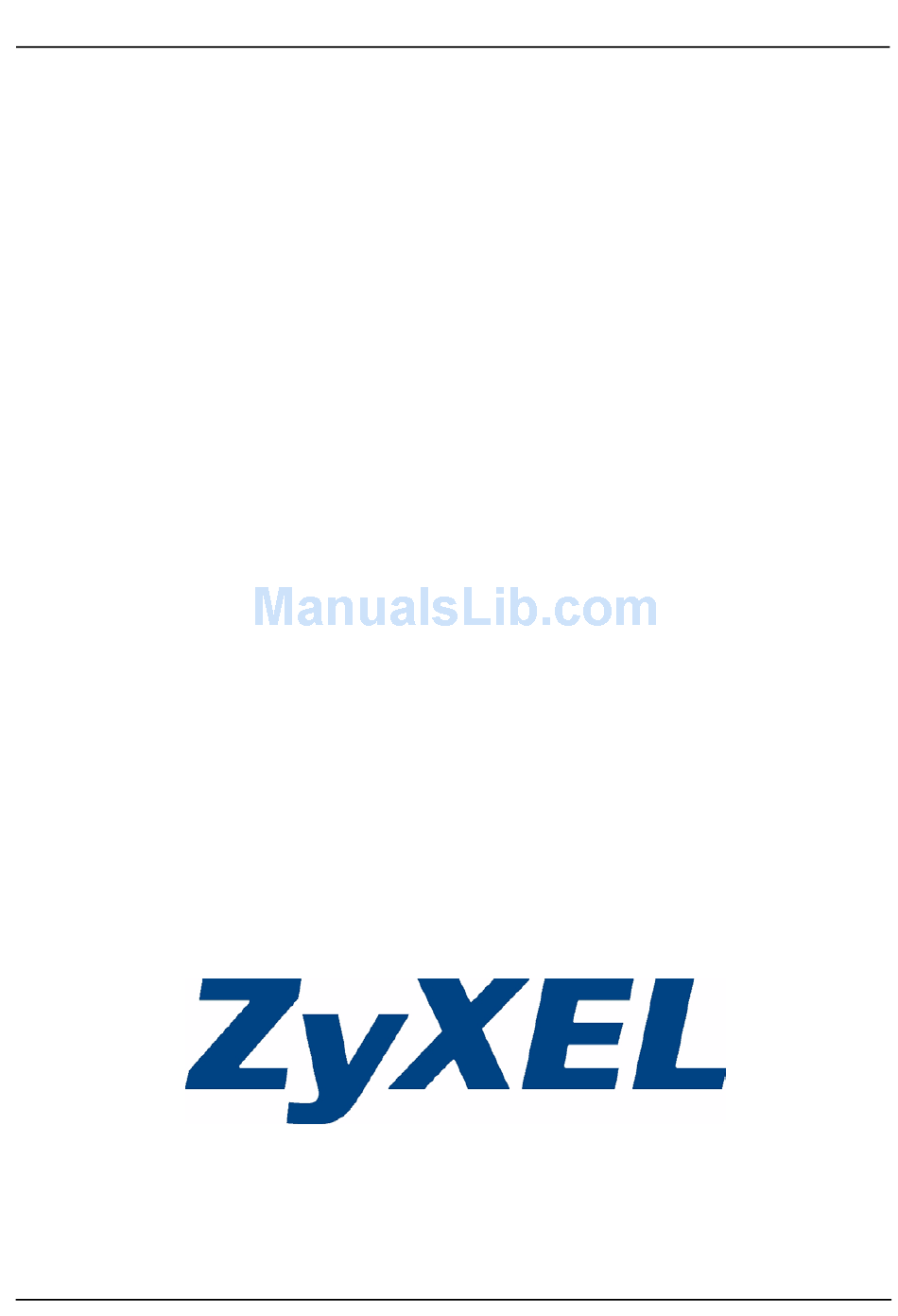

Page 1: Quick Start Guide
P-660R-T1/T3 v2 Quick Start Guide P-660R-T1/T3 v2 ADSL2+ Access Router Quick Start Guide Version 3.40 Edition 1 12/2006... -
Page 2: Connect The Hardware
P-660R-T1/T3 v2 Quick Start Guide Overview This Quick Start Guide shows you how to: 1 Connect the Hardware 1 Connect the Hardware 1 ETHERNET: Use an Ethernet cable to connect a computer to the ETHERNET port for Internet access. 2 DSL: Use a telephone wire to connect your P-660R-T1/T3 v2’s DSL port to a telephone jack (or to a splitter, if one is... -
Page 3: Set Up Internet Access
P-660R-T1/T3 v2 Quick Start Guide After you’ve made the connections, push in the power button to turn on the P-660R-T1/T3 v2. Look at the LEDs. • The POWER LED blinks while performing system testing. It then turns steady on if the testing is successful. - Page 4 P-660R-T1/T3 v2 Quick Start Guide You can also view the connection status, see: D: View the Status Screen Configuration Genie and Zero configuration are only able to configure the device automatically for Internet access if you are using PPPoE, PPPoA or ENET ENCAP encapsulation with a dynamically-assigned IP address from your ISP.
- Page 5 P-660R-T1/T3 v2 Quick Start Guide B: Zero Configuration Launch your web browser and navigate to any web site (for example, www.zyxel.com). The P-660R-T1/T3 v2 automatically detects and configures your Internet connection. This may take about two minutes. If you have a PPPoE or PPPoA connection, a screen displays prompting you to enter your Internet account information.
- Page 6 P-660R-T1/T3 v2 Quick Start Guide C: Web Configurator Internet Access Wizard Enter the Internet access information given to you by your ISP exactly in each wizard screen. If not given, leave the fields set to the default. 1 In your browser, go to 2 Enter the administrator password 1234.
- Page 7 P-660R-T1/T3 v2 Quick Start Guide 3 It is strongly recommended that you change the default password in the next screen. If you change it, you will not see this screen the next time you log in. 4 Select Go to Wizard setup and click Apply. You will need information supplied by your Internet service provider (ISP).
- Page 8 See the Troubleshooting section if you cannot access the Internet. D: View the Status Screen You can view the status screen of the P-660R-T1/T3 v2 by logging into the web configurator with the default user account. 1 In your browser, go to 2 Enter the default password user.
-
Page 9: Troubleshooting
P-660R-T1/T3 v2 Quick Start Guide If your browser cannot find this screen, see the Troubleshooting section. 3 The status screen displays your Internet access information. See the User’s Guide for full description of this screen. Troubleshooting 1 If you cannot access the web configurator using Internet Explorer in Windows XP or Windows Server 2003, take the following steps. - Page 10 P-660R-T1/T3 v2’s LAN IP address (see Set Up Your Computer’s IP Address D) Ping the P-660R-T1/T3 v2 from a computer on the LAN. Make sure your computer’s Ethernet adapter is installed and functioning properly. In the computer, click Start, (All) Programs, Accessories and then Command Prompt.
-
Page 11: Set Up Your Computer's Ip Address
This section shows you how to set your Windows NT/2000/XP computer to automatically get an IP address. This ensures that your computer can connect with your P-660R-T1/T3 v2. Refer to your User’s Guide for detailed IP address configuration for other Windows and Macintosh computer operating systems. - Page 12 P-660R-T1/T3 v2 Quick Start Guide 2 In the Control Panel, double-click Network Connections (Network and Dial-up Connections in Windows 2000/ NT). 3 Right-click Local Area Connection then click Properties. 4 Select Internet Protocol (TCP/IP) then click Properties.
- Page 13 P-660R-T1/T3 v2 Quick Start Guide 5 The TCP / IP Properties window appears. Select obtain an IP address automatically and click OK to have the P-660R-T1/T3 v2 assign your computer an IP address. 6 If your Internet Service Provider (ISP) gave you Domain Name System (DNS) settings, enter them in the Use the following DNS server addresses fields.
- Page 14 P-660R-T1/T3 v2 Quick Start Guide Close the Network Connections window (Network and Dial-up Connections in Windows 2000/NT). Procedure to View a Product’s Certification(s) 1 Go to www.zyxel.com. 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page.
- Page 15 P-660R-T1/T3 v2 Quick Start Guide...
