P-660R-T Series
ADSL2+ Access Router

Quick Start Guide

Version 3.40
9/2005

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications Access Router P-660R-T

Summary of Contents for ZyXEL Communications Access Router P-660R-T

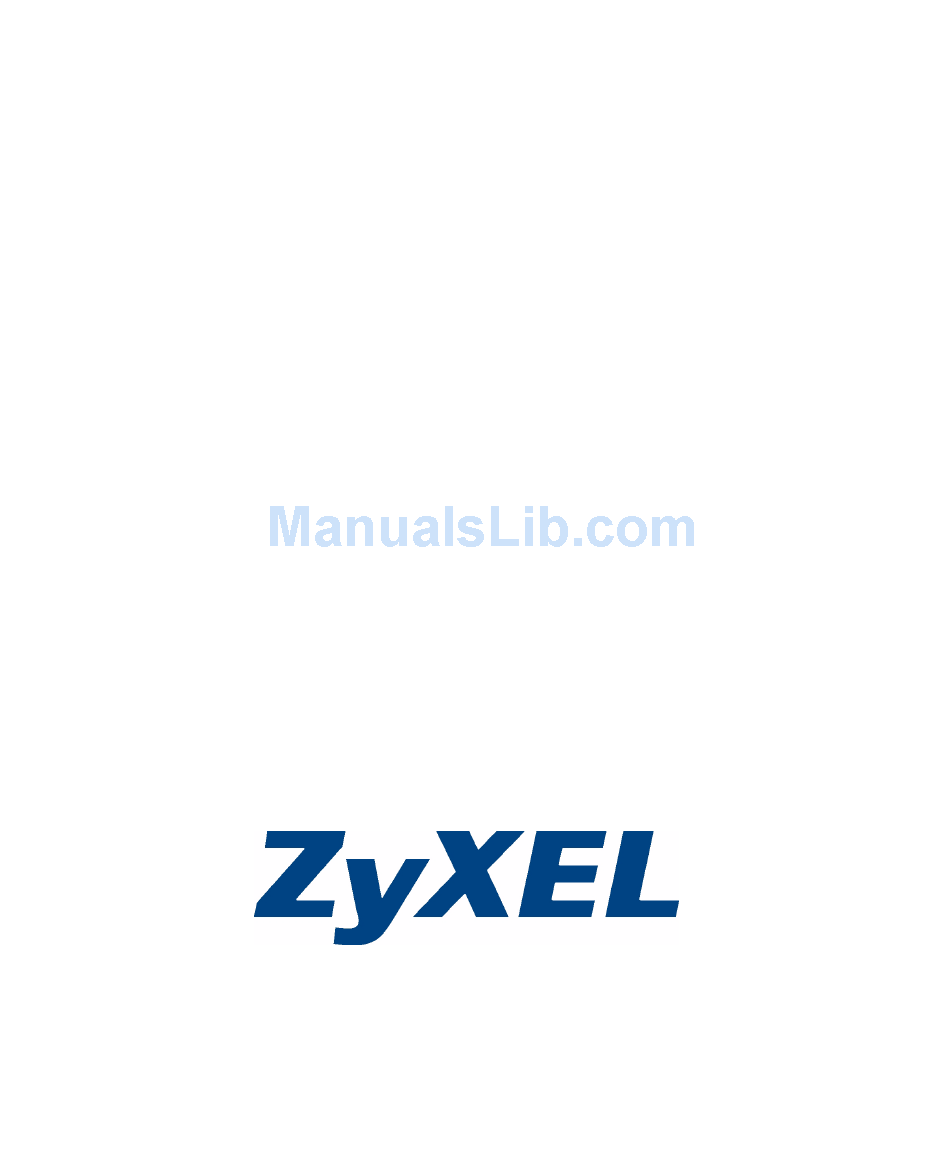

  • Page 1: Quick Start Guide

    P-660R-T Series ADSL2+ Access Router Quick Start Guide Version 3.40 9/2005...

  • Page 2: Hardware Connections

    Overview The Prestige 660R-T (P-660R-T) ADSL2+ access router is the ideal device for small networks connecting to the Internet via ADSL. See your User’s Guide for background information on all features. 1 Hardware Connections If you prefer to see a multi-media animation of how to make hardware connections, see the included CD. 1 DSL: Connect the Prestige to a telephone jack using a telephone wire.

  • Page 3: Zero Configuration

    • Zero Configuration • Web Configurator Internet Access Wizard Note: Configuration genie or Zero configuration are only able to configure the device automatically for Internet access if you are using PPPoE, PPPoA or ENET ENCAP encapsulation with a dynamically-assigned IP address from your ISP. If you’re not using these Internet access settings, then use the Web Configurator Internet Access Wizard to manually configure the device.
  • Page 4 2.3 Web Configurator Internet Access Wizard 2.3.1 Accessing the Web Configurator 1 Launch your web browser. Enter “192.168.1.1” as the web site address. Note: If you do not see the next screens, then please read 2 Click Login. 3 Type a new password (retype it to confirm) and click Apply. Otherwise click Ignore. You then see the main web configurator screen.
  • Page 5 2.3.2 Internet Access Setup 1 Configure the Internet access settings in this step. The wizard screens vary depending on the Mode and Encapsulation you chose in the first wizard screen. Note: Enter the Internet access information given to you by your ISP exactly in each wizard screen. If not given, leave the fields set to the default.
  • Page 6 PPPoE A) Select Routing, then PPPoE. B) Click Next. C) Enter the service name, username and password given by your ISP. D) If your ISP gave you an IP address, select Static IP address and enter it. Otherwise, select Obtain an IP Address Automatically.
  • Page 7 Otherwise, select Connect on Demand and specify an idle time-out period (in seconds) in the Max. Idle Timeout field. F) If you selected Routing, select SUA Only when you have one public IP address, Full Feature when you have more than one public IP address (for translation) or None to disable NAT. G) Click Next.

  • Page 8: Troubleshooting

    4 Troubleshooting PROBLEM CORRECTIVE ACTION None of the LEDs turn on Make sure that you have the correct power adaptor connected to the Prestige, it is when you connect the plugged into an appropriate power source and the Prestige is turned on. Prestige’s power.
  • Page 9 4 Select Internet Protocol (TCP/IP) (under the General tab in Windows XP) and click Properties. 5 The Internet Protocol TCP/IP Properties screen opens (the General tab in Windows XP). 6 Select the Obtain an IP address automatically and Obtain DNS server address automatically options. 7 Click OK to close the Internet Protocol (TCP/IP) Properties window.
